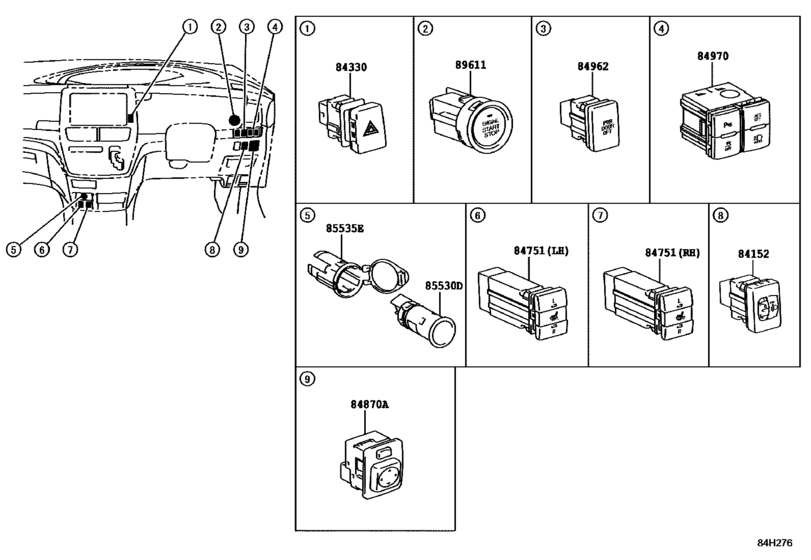

Switch & Relay & Computer ([05.2016 - ] INSTRUMENT PANEL (1605- )RHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-28050
Switch, Headlamp Leveling
[05.2016 -] ACR50,GSR50..DLX..ARL |
84152-28050 |
— | ||
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[01.2006 - 12.2008] ACR50,GSR50 |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[01.2006 - 12.2008] ACR50,GSR50 |
84152-52071 |
US $43.24 |
||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[03.2015 - 05.2016] GSR50..DLX;ACR50..ARL,GCC;ACR50..LHD..CVT; ACR50..GL..GCC;ACR50..LHD..CVT;ACR50,GSR50..DLX..ARL HEADLAMP-DISCHARGE & AFS |
84152-52071 |
US $43.24 |
||
|
84330
|
84330
84332-28210 Switch Assy, Hazard Warning Signal[05.2016 -] ACR50,GSR50..RHD |
84332-28210 |
US $35.96 |
||
|
84870A
|
84870A
84870-28030
Switch Assy, Outer Mirror
[01.2006 - 12.2008] ACR50..DLX;GSR50..ARL,GCC;ACR50..GL..GCC |
84870-28030 |
— | ||
|
84870A
|
84870A
84870-28080
Switch Assy, Outer Mirror
[05.2016 -] ACR50..RHD..4FC;ACR50,GSR50..ARL |
84870-28080 |
— | ||
|
84962
|
84962
84962-28010 Switch, Power Slide Door Main[05.2012 - 04.2013] ACR50,GSR50..DLX..ARL SLIDE DOOR-*ECS(RH,LH) & *POSD(LH) |
84962-28010 |
US $34.36 |
||
| replacement | |||||
|
84962
|
84962
84962-28011 Switch, Power Slide Door Main[05.2012 - 04.2013] ACR50,GSR50..DLX..ARL SLIDE DOOR-*ECS(RH,LH) & *POSD(LH) |
84962-28011 |
US $51.58 |
||
|
84970
|
84970
84970-28050
Switch Assy, Combination
[05.2016 -] ACR50..AERAS;ACR50,GSR50..DLX..ARL |
84970-28050 |
— | ||
|
85530D
|
85530D
85530-42010 Socket Assy, Power Outlet, No.1[01.2006 - 12.2008] ACR50,GSR50 |
85530-42010 |
from US $26.27 |
||
|
85535E
|
85535E
85535-28080-C0 Cover, Power Outlet Socket, No.2[04.2013 - 05.2016] ACR50,GSR50..RHD BLACK |
85535-28080-C0 |
US $12.01 |
||
|
89611
|
89611
89611-35021 Switch, Push Start[05.2016 -] ACR50,GSR50..RHD |
89611-35021 |
US $122.30 |
||
|
89611
|
89611
89611-52014
Switch, Push Start
[04.2012 - 02.2016] GSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN) |
89611-52014 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[04.2012 - 02.2016] GSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN) |
89611-52015 |
from US $160.06 |
||
|
89611
|
89611
89611-52015 Switch, Push Start[03.2016 - 05.2016] ACR50,GSR50 |
89611-52015 |
from US $160.06 |
||
