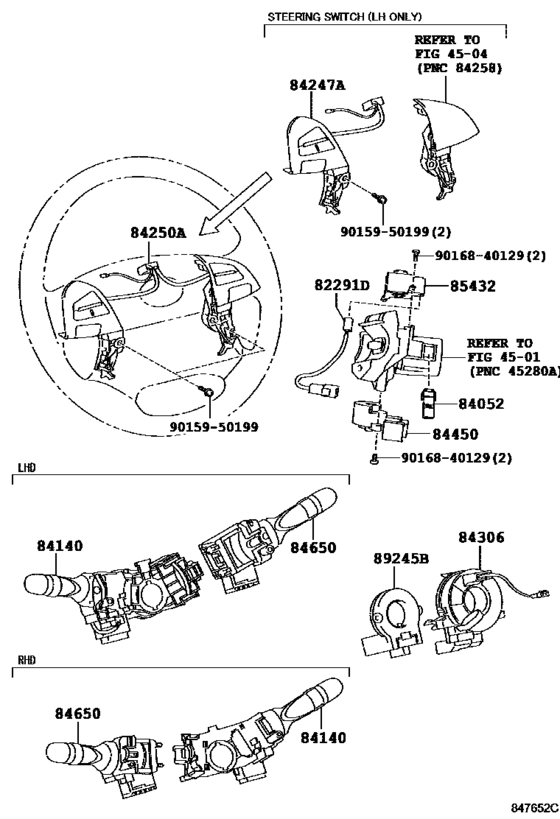

Switch & Relay & Computer ([01.2006 - 05.2016] STEERING (0601-1605)) Diagram Toyota PREVIA/ TARAGO
- Year
- 2006 - 2018
- Sales region
- General
- Frame
- GSR50
- grade
- DLX
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2006
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82291D
|
82291D
82291-42010 Wire, To Solenoid[01.2006 - 12.2008] ACR50,GSR50; ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LA MP-DISCHARGE + AFS; ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; AC |
82291-42010 |
US $2.45 |
||
|
84052
|
84052
84052-71010 Switch Assy, Un-Lock Warning[01.2006 - 12.2008] ACR50,GSR50; ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LA MP-DISCHARGE + AFS; ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; AC |
84052-71010 |
US $25.68 |
||
|
84140
|
84140
84140-42070 Switch Assy, Headlamp Dimmer[01.2006 - 12.2008] ACR50,GSR50..RHD |
84140-42070 |
from US $99.16 |
||
|
84247A
|
84247A
84247-28010
Switch, Steering Pad, Lh
[01.2006 - 12.2008] ACR50,GSR50..DLX..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE; ACR50..LHD..DLX CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE&AUDIO-AM/FM CD 6SPEAKER; GSR50..ARL,GCC;ACR50..GL..GCC CRUISE CONTROL-WITH&STEERING WHEE |
84247-28010 |
— | ||
|
84247A
|
84247A
84247-28040 Switch, Steering Pad, LhSTEERING PAD, LH [12.2008 - 05.2012] ACR50,GSR50..DLX..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE; GSR50..ARL CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & WOOD & LEATHER; ACR50,GSR50..DLX..ARL STEERING WHEEL-4-SPOKE & URETHANE; GSR50..ARL STEERING WHEEL-4-S |
84247-28040 |
US $91.73 |
||
|
84247A
|
84247A
84247-28120 Switch, Steering Pad, Lh[04.2012 - 05.2016] GSR50..ARL;ACR50..RHD..GL;ACR50..CVT..ARL; GSR50..LHD;ACR50..LHD..GEN AUDIO-AM/FM & CD & 6SPEAKER |
84247-28120 |
US $128.13 |
||
|
84250A
|
84250A
84250-28390
Switch Assy, Steering Pad
[05.2016 -] ACR50,GSR50..RHD |
84250-28390 |
— | ||
|
84306
|
84306
84306-52090 Cable Sub-Assy, Spiral[01.2006 - 12.2008] GSR50..GEN;ACR50..RHD..GEN;ACR50..LHD..GL..GEN CRUISE CONTROL-WITH; ACR50..LHD..DLX..GEN;ACR50,GSR50..DLX..(ARL,GCC) CRUISE CONTROL-WITH&STEERING WHEEL-4-SPOKE & URETHANE; ACR50..LHD..DLX..GEN;ACR50,GSR50..DLX..(ARL,GCC) CRUISE CONTROL |
84306-52090 |
from US $167.06 |
||
|
84306
|
84306
84306-52100 Cable Sub-Assy, Spiral[01.2006 - 12.2008] ACR50,GSR50 |
84306-52100 |
from US $164.62 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[01.2006 - 12.2008] ACR50,GSR50; ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LA MP-DISCHARGE + AFS; ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; AC |
84450-12200 |
from US $54.43 |
||
|
84650
|
84650
84652-42130
Switch Assy, Windshield Wiper
[01.2006 - 12.2008] ACR50,GSR50..RHD |
84652-42130 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-42132 Switch Assy, Windshield Wiper[01.2006 - 12.2008] ACR50,GSR50..RHD |
84652-42132 |
US $131.20 |
||
|
84650
|
84650
84652-42132 Switch Assy, Windshield Wiper[03.2015 - 05.2016] ACR50,GSR50..RHD |
84652-42132 |
US $131.20 |
||
|
85432
|
85432
85432-71010 Solenoid, Key Inter Lock[01.2006 - 12.2008] ACR50,GSR50; ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD LA MP-DISCHARGE + AFS; ACR50,GSR50..LHD..GL..GEN ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; AC |
85432-71010 |
US $40.33 |
||
|
89245B
|
89245B
89245-33040 Sensor, Steering[01.2006 - 12.2008] ACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN VSC-WITH |
89245-33040 |
US $295.84 |
||
|
89245B
|
89245B
89245-33050 Sensor, Steering[04.2013 - 05.2016] GSR50;ACR50..RHD;ACR50..LHD..4FC..GEN; ACR50..4FC..GEN VSC-WITH&HEADLAMP-DISCHARGE & AFS; ACR50..GL..GCC SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD) |
89245-33050 |
from US $185.72 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.53 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
