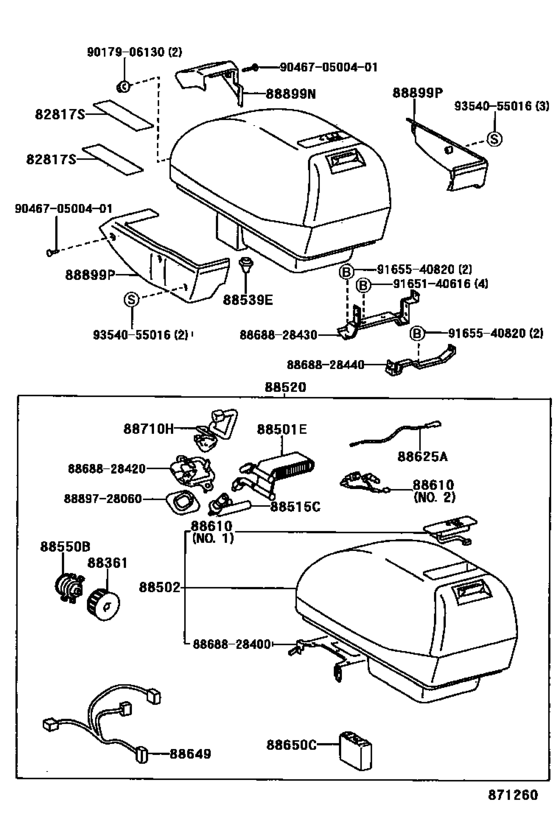

Heating & Air Conditioning - Cooler Unit ([08.1991 - 08.1993] (9108-9308)LHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1999
- Sales region
- Europe
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- MTM
- DESTINATION
- W
- From
- 05.1990
- To
- 12.1999
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8868828400
|
8868828400
88688-28400
Bracket, Cooler Diaphragm
|
88688-28400 |
— | ||
|
8868828420
|
8868828420
88688-28420
Bracket, Cooler Diaphragm
|
88688-28420 |
— | ||
|
8868828430
|
8868828430
88688-28430
Bracket, Cooler Diaphragm
|
88688-28430 |
— | ||
|
8868828440
|
8868828440
88688-28440
Bracket, Cooler Diaphragm
|
88688-28440 |
— | ||
|
8889728060
|
8889728060
88897-28060
Valve, Cooler Magnet
|
88897-28060 |
— | ||
|
9017906130
|
9017906130
90179-06130 Nut |
90179-06130 |
US $2.15 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.25 |
||
|
904670500401
|
904670500401
90467-05004-01 Clip, Roof Side Rail Garnish |
90467-05004-01 |
US $1.31 |
||
| replacement | |||||
|
904670500401
|
904670500401
90467-05004-11
Clip(For Luggage Compartment Trim Rear Cover)
|
90467-05004-11 |
— | ||
