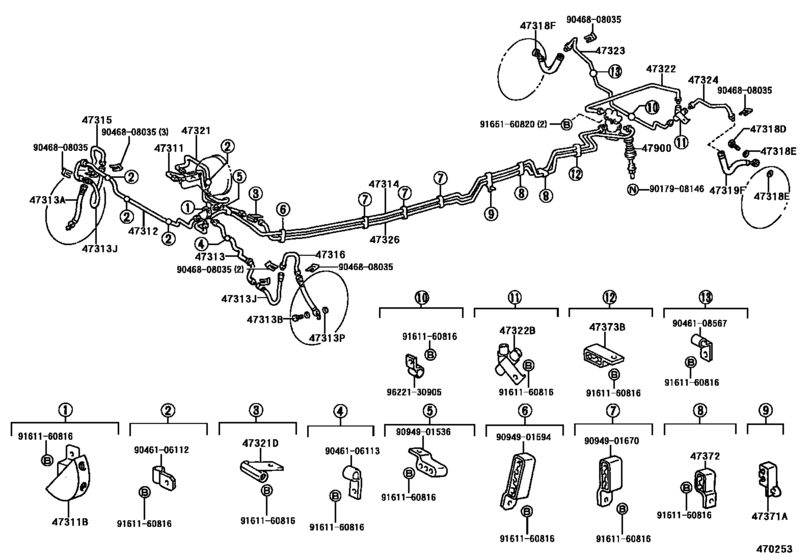

Brake Tube & Clamp ([08.1993 - ] (9308- )TCR11,21..LHD) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1999
- Sales region
- General
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- MTM
- DESTINATION
- W
- From
- 05.1990
- To
- 12.1999
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-28230 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [05.1990 - 12.1999] TCR1#,2#..LHD |
47311-28230 |
US $10.05 |
||
|
47311
|
47311
47311-28240 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [05.1990 - 08.1993] TCR11,21..LHD W(ABS) |
47311-28240 |
US $7.72 |
||
|
47311
|
47311
47311-28241 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1996 - 12.1999] TCR1#,2#..LHD W(ABS) |
47311-28241 |
US $19.80 |
||
|
47311B
|
47311B
90413-10247 Way, No.1(For Front Brake Tube)NO.1(FOR FRONT BRAKE TUBE) [05.1990 - 08.1993] TCR11,21..LHD W(ABS) |
90413-10247 |
US $13.25 |
||
|
47311B
|
47311B
90414-10039
Way, No.1(For Front Brake Tube)
[05.1990 - 12.1999] TCR1#,2#..LHD |
90414-10039 |
— | ||
|
47312
|
47312
47312-28130 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [05.1990 - 12.1999] TCR1#,2#..LHD |
47312-28130 |
US $17.91 |
||
|
47312
|
47312
47312-28140 Tube, Front Brake, No.2[05.1990 - 08.1991] TCR11,21 W(ABS) |
47312-28140 |
US $7.72 |
||
|
47312
|
47312
47312-28240 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [08.1993 - 08.1996] TCR1#,2#..LHD..W W(ABS) |
47312-28240 |
US $12.67 |
||
|
47312
|
47312
47312-28251 Tube, Front Brake, No.2[08.1996 - 12.1999] TCR1#,2# W(ABS) |
47312-28251 |
US $12.67 |
||
|
47313
|
47313
47313-28120 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [05.1990 - 12.1999] TCR1#,2#..LHD |
47313-28120 |
US $10.05 |
||
|
47313
|
47313
47313-28130 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [05.1990 - 08.1993] TCR11,21..LHD W(ABS) |
47313-28130 |
US $17.76 |
||
|
47313
|
47313
47313-28131 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [08.1993 - 08.1996] TCR1#,2#..LHD..W W(ABS) |
47313-28131 |
US $17.47 |
||
|
47313
|
47313
47313-28132 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [08.1996 - 12.1999] TCR1#,2#..LHD W(ABS) |
47313-28132 |
US $17.76 |
||
|
47313A
|
47313A
90947-02604 Hose, Flexible, No.1(For Front)[05.1990 - 08.1996] TCR1#,2# |
90947-02604 |
US $26.54 |
||
|
47313A
|
47313A
90947-02882 Hose, Flexible, No.1(For Front)[08.1996 - 12.1999] TCR1#,2# |
90947-02882 |
US $25.03 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[05.1990 - 12.1999] TCR1#,2# |
90401-10015 |
from US $3.58 |
||
|
47313J
|
47313J
90947-02618
Hose, Flexible, No.2(For Front)
[05.1990 - 01.1992] TCR1#,2# |
90947-02618 |
— | ||
| replacement | |||||
|
47313J
|
47313J
90947-02720 Hose, Flexible, No.2(For Front)[05.1990 - 01.1992] TCR1#,2# |
90947-02720 |
US $29.23 |
||
|
47313J
|
47313J
90947-02720 Hose, Flexible, No.2(For Front)[01.1992 - 12.1999] TCR1#,2# |
90947-02720 |
US $29.23 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[05.1990 - 12.1999] TCR1#,2# |
90430-10074 |
from US $0.88 |
||
|
47314
|
47314
47314-28150 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [05.1990 - 08.1991] TCR11,21..LHD |
47314-28150 |
US $43.97 |
||
|
47314
|
47314
47314-28151 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [08.1991 - 12.1999] TCR11,21..LHD |
47314-28151 |
US $43.68 |
||
|
47315
|
47315
47315-28110 Tube, Front Brake, No.5[05.1990 - 12.1999] TCR1#,2# |
47315-28110 |
US $7.27 |
||
|
47316
|
47316
47316-28030
Tube, Front Brake, No.6
[05.1990 - 12.1999] TCR1#,2# |
47316-28030 |
— | ||
|
47318D
|
47318D
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[05.1990 - 02.1993] TCR11,21 |
90401-10015 |
from US $3.58 |
||
|
47318E
|
47318E
90430-10074 Gasket(For Oil Pressure Regulator)[05.1990 - 02.1993] TCR11,21 |
90430-10074 |
from US $0.88 |
||
|
47318F
|
47318F
90947-02605 Hose, Flexible(For Rear Brake Tube)[05.1990 - 08.1991] TCR11,21 W(REAR DISC BRAKE) |
90947-02605 |
US $25.33 |
||
|
47318F
|
47318F
90947-02622
Hose, Flexible(For Rear Brake Tube)
[05.1990 - 08.1991] TCR11,21 |
90947-02622 |
— | ||
|
47318F
|
47318F
90947-02881 Hose, Flexible(For Rear Rh)[08.1996 - 12.1999] TCR11,21 |
90947-02881 |
US $25.03 |
||
|
47319F
|
47319F
90947-02605 Hose, Flexible(For Rear Brake Tube)[05.1990 - 08.1991] TCR11,21 W(REAR DISC BRAKE) |
90947-02605 |
US $25.33 |
||
|
47319F
|
47319F
90947-02622
Hose, Flexible(For Rear Brake Tube)
[05.1990 - 08.1991] TCR11,21 |
90947-02622 |
— | ||
|
47319F
|
47319F
90947-02881 Hose, Flexible(For Rear Rh)[08.1996 - 12.1999] TCR11,21 |
90947-02881 |
US $25.03 |
||
|
47321
|
47321
47321-28230 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [05.1990 - 12.1999] TCR1#,2#..LHD |
47321-28230 |
US $13.10 |
||
|
47321
|
47321
47321-28240 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [05.1990 - 08.1993] TCR11,21..LHD W(ABS) |
47321-28240 |
US $19.66 |
||
|
47321
|
47321
47321-28241 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [08.1993 - 08.1996] TCR1#,2#..LHD..W W(ABS) |
47321-28241 |
US $19.66 |
||
|
47321
|
47321
47321-28242 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [08.1996 - 12.1999] TCR1#,2#..LHD W(ABS) |
47321-28242 |
US $19.80 |
||
|
47321D
|
47321D
90412-10006 Way(For Front Brake Tube)[05.1990 - 12.1999] TCR1#,2#..LHD |
90412-10006 |
US $25.92 |
||
|
47321D
|
47321D
90412-10178 Way, No.1(For Front Brake Tube)[05.1990 - 12.1999] TCR1#,2#..LHD W(ABS) |
90412-10178 |
US $15.87 |
||
|
47322
|
47322
47322-28160
Tube, Rear Brake, No.2
[05.1990 - 12.1999] TCR11,21 |
47322-28160 |
— | ||
|
47322B
|
47322B
90413-10246 Way, No.2(For Rear Brake Tube)[05.1990 - 12.1999] TCR11,21 |
90413-10246 |
US $13.25 |
||
|
47323
|
47323
47323-28210 Tube, Rear Brake, No.3[05.1990 - 10.1994] TCR11,21 |
47323-28210 |
US $17.76 |
||
| replacement | |||||
|
47323
|
47323
47323-28330
Tube, Rear Brake, No.3
[05.1990 - 10.1994] TCR11,21 |
47323-28330 |
— | ||
|
47323
|
47323
47323-28330
Tube, Rear Brake, No.3
[10.1994 - 12.1999] TCR11,21 |
47323-28330 |
— | ||
|
47324
|
47324
47324-28140
Tube, Rear Brake, No.4
[05.1990 - 12.1999] TCR11,21 |
47324-28140 |
— | ||
|
47326
|
47326
47326-28100 Tube, Rear Brake, No.6[05.1990 - 08.1991] TCR11,21 |
47326-28100 |
US $39.17 |
||
|
47326
|
47326
47326-28101 Tube, Rear Brake, No.6[08.1991 - 12.1999] TCR11,21 |
47326-28101 |
US $39.02 |
||
|
47326
|
47326
47326-28190 Tube, Rear Brake, No.6REAR BRAKE, NO.6 [08.1996 - 12.1999] TCR11,21 W(ABS) |
47326-28190 |
US $46.30 |
||
|
47371A
|
47371A
47371-28010 Clamp, Brake Tube, No.1[05.1990 - 12.1999] TCR1#,2# |
47371-28010 |
US $3.49 |
||
|
47372
|
47372
47372-25010 Clamp, Brake Tube, No.1[05.1990 - 12.1999] TCR1#,2# |
47372-25010 |
US $6.12 |
||
|
47373B
|
47373B
47373-25010 Clamp, Brake Tube, No.1[05.1990 - 12.1999] TCR1#,2# |
47373-25010 |
US $6.26 |
||
|
47900
|
47900
47900-28290 Valve Assy, Load Sensing W/springLOAD SENSING W/SPRING [05.1990 - 08.1991] TCR11,21 |
47900-28290 |
US $230.05 |
||
| replacement | |||||
|
47900
|
47900
47900-28291 Valve Assy, Load Sensing W/spring[05.1990 - 08.1991] TCR11,21 |
47900-28291 |
US $254.80 |
||
|
47900
|
47900
47900-28330
Valve Assy, Load Sensing W/spring
[05.1990 - 08.1993] TCR11,21..W W(REAR DISC BRAKE) |
47900-28330 |
— | ||
| replacement | |||||
|
47900
|
47900
47900-28331
Valve Assy, Load Sensing W/spring
[05.1990 - 08.1993] TCR11,21..W W(REAR DISC BRAKE) |
47900-28331 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046106112
|
9046106112
90461-06112 Clamp, Brake Tube, No.6 |
90461-06112 |
US $2.33 |
||
|
9046106113
|
9046106113
90461-06113 Clamp, Brake Tube, No.2 |
90461-06113 |
US $2.97 |
||
|
9046108567
|
9046108567
90461-08567 New Genuine Part |
90461-08567 |
US $1.43 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.13 |
||
|
9094901536
|
9094901536
90949-01536 Clamp, Brake Tube, No.15 |
90949-01536 |
US $4.56 |
||
|
9094901594
|
9094901594
90949-01594 Clamp, Brake Tube, No.2 |
90949-01594 |
US $4.66 |
||
|
9094901670
|
9094901670
90949-01670 New Genuine Part |
90949-01670 |
US $7.43 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9622130905
|
9622130905
96221-30905 CLAMP |
96221-30905 |
from US $6.63 |
||
