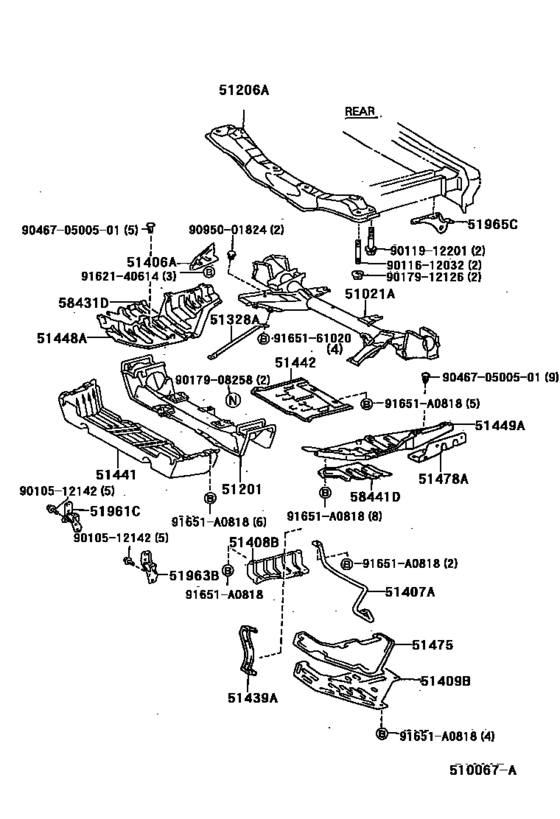

Suspension Crossmember & Under Cover ([08.1996 - ] (9608- )MTM) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1999
- Sales region
- General
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- MTM
- DESTINATION
- W
- From
- 05.1990
- To
- 12.1999
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51021A
|
51021A
51021-28110 Member Sub-Assy, Engine Front SupportENGINE FRONT SUPPORT [04.1996 - 12.1999] TCR2# |
51021-28110 |
US $639.18 |
||
|
51021A
|
51021A
51021-95D01 Member Sub-Assy, Engine Front Support[05.1990 - 04.1996] TCR2# |
51021-95D01 |
US $637.73 |
||
|
51201
|
51201
51201-28150 Crossmember Sub-Assy, Front SuspensionFRONT SUSPENSION [08.1993 - 12.1999] TCR2# |
51201-28150 |
US $547.46 |
||
|
51201
|
51201
51201-95D03 Crossmember Sub-Assy, Front SuspensionFRONT SUSPENSION [05.1990 - 08.1993] TCR2#..W |
51201-95D03 |
US $776.05 |
||
| replacements | |||||
|
51201
|
51201
51201-28150 Crossmember Sub-Assy, Front SuspensionFRONT SUSPENSION [05.1990 - 08.1993] TCR2#..W |
51201-28150 |
US $547.46 |
||
|
51201
|
51201
52383-28030 Protector, Front Differential Support, No.1[05.1990 - 08.1993] TCR2#..W |
52383-28030 |
US $44.41 |
||
|
51201
|
51201
52384-28020 Protector, Front Differential Support, No.2[05.1990 - 08.1993] TCR2#..W |
52384-28020 |
US $44.41 |
||
|
51206A
|
51206A
51206-95D00 Member Sub-Assy, Rear Suspension[05.1990 - 12.1999] TCR11,21 |
51206-95D00 |
US $911.46 |
||
|
51328A
|
51328A
51328-95D00
Support, Front Suspension Member, Front
[05.1990 - 12.1999] TCR1#,2# |
51328-95D00 |
— | ||
|
51406A
|
51406A
51405-28060 Cover Sub-Assy, Engine Under, No.1[01.1994 - 04.1996] TCR1#,2#..MTM; TCR11..LHD..ATM SWITZERLAND SPEC |
51405-28060 |
US $74.26 |
||
|
51406A
|
51406A
51406-28010 Cover Sub-Assy, Engine Under, No.2ENGINE UNDER, NO.2 [05.1990 - 08.1991] TCR1#,2#..MTM..W |
51406-28010 |
US $29.27 |
||
|
51407A
|
51407A
51407-28010 Cover Sub-Assy, Engine Under, No.3ENGINE UNDER, NO.3 [05.1990 - 08.1991] TCR1#,2#..MTM..W |
51407-28010 |
US $90.27 |
||
|
51408B
|
51408B
51408-28010 Cover Sub-Assy, Engine Under, RhENGINE UNDER, RH [05.1990 - 08.1991] TCR1#,2#..MTM..W |
51408-28010 |
US $144.14 |
||
|
51408B
|
51408B
51408-28030 Cover Sub-Assy, Engine Under, RhENGINE UNDER, RH [04.1996 - 08.1996] TCR1#,2#..MTM..W |
51408-28030 |
US $55.04 |
||
|
51408B
|
51408B
51408-28031 Cover Sub-Assy, Engine Under, RhENGINE UNDER, RH [08.1996 - 12.1999] TCR1#,2#..MTM..W |
51408-28031 |
US $82.99 |
||
|
51409B
|
51409B
51409-28010 Cover Sub-Assy, Engine Under, LhENGINE UNDER, LH [05.1990 - 08.1991] TCR1#,2#..MTM..W |
51409-28010 |
US $209.66 |
||
|
51439A
|
51439A
51439-28020 Bracket, Engine Side Cover, No.2 LhENGINE SIDE COVER, NO.2 LH [04.1996 - 12.1999] TCR1#,2#..MTM..W |
51439-28020 |
US $22.13 |
||
|
51441
|
51441
51441-95D01 Cover, Engine Under, No.1[05.1990 - 12.1999] TCR1#,2# |
51441-95D01 |
US $263.54 |
||
|
51442
|
51442
51406-28050 Cover, Engine Under, No.2[04.1996 - 12.1999] TCR1#,2#..MTM..W |
51406-28050 |
US $122.30 |
||
|
51442
|
51442
51442-28090
Cover, Engine Under, No.2
[12.1994 - 04.1996] TCR1#,2# |
51442-28090 |
— | ||
|
51442
|
51442
51442-95D01
Cover, Engine Under, No.2
[05.1990 - 12.1994] TCR1#,2# |
51442-95D01 |
— | ||
|
51448A
|
51448A
51448-28010 Cover, Engine Side Under, Rh[05.1990 - 08.1991] TCR1#,2#..MTM..W |
51448-28010 |
US $138.32 |
||
|
51448A
|
51448A
51448-95D00
Cover, Engine Side Under, Rh
[05.1990 - 01.1991] TCR1#,2#..LHD..MTM SWITZERLAND SPEC |
51448-95D00 |
— | ||
| replacement | |||||
|
51448A
|
51448A
51448-28010 Cover, Engine Side Under, Rh[05.1990 - 01.1991] TCR1#,2#..LHD..MTM SWITZERLAND SPEC |
51448-28010 |
US $138.32 |
||
|
51449A
|
51449A
51449-28020 Cover, Engine Side Under, LhENGINE SIDE UNDER, LH [05.1990 - 08.1991] TCR11,21..LHD..MTM AUSTRIA SPEC |
51449-28020 |
US $160.16 |
||
|
51449A
|
51449A
51449-95D01
Cover, Engine Side Under, Lh
[05.1990 - 08.1991] TCR1#,2# |
51449-95D01 |
— | ||
| replacement | |||||
|
51449A
|
51449A
51449-28020 Cover, Engine Side Under, LhENGINE SIDE UNDER, LH [05.1990 - 08.1991] TCR1#,2# |
51449-28020 |
US $160.16 |
||
|
51475
|
51475
51475-28010 Silencer, Engine Under Cover, No.5ENGINE UNDER COVER, NO.5 [05.1990 - 08.1991] TCR1#,2#..MTM..W |
51475-28010 |
US $113.57 |
||
|
51478A
|
51478A
51478-28010 Silencer, Engine Under Cover, LhENGINE UNDER COVER, LH [05.1990 - 08.1991] TCR11,21..LHD..MTM AUSTRIA SPEC |
51478-28010 |
US $84.45 |
||
|
51961C
|
51961C
51961-28030 Hook, Front[08.1993 - 12.1999] TCR1#,2# |
51961-28030 |
US $122.30 |
||
|
51961C
|
51961C
51961-95D00 Hook, Front[05.1990 - 08.1993] TCR1#,2# |
51961-95D00 |
US $96.10 |
||
|
51963B
|
51963B
51964-28050 Hook, Front Lh[08.1993 - 12.1999] TCR1#,2# |
51964-28050 |
US $122.30 |
||
|
51965C
|
51965C
51965-28050
Hook, Rear
[08.1993 - 12.1999] TCR1#,2# |
51965-28050 |
— | ||
|
51965C
|
51965C
51965-95D00 Hook, Rear[05.1990 - 08.1993] TCR1#,2# |
51965-95D00 |
US $91.73 |
||
|
58431D
|
58431D
58431-28010 Silencer, Engine Room Side, Front RhENGINE ROOM SIDE, FRONT RH [05.1990 - 08.1991] TCR11,21..LHD..MTM AUSTRIA SPEC |
58431-28010 |
US $66.25 |
||
|
58441D
|
58441D
58441-28020 Silencer, Enging Room Side, Front LhENGING ROOM SIDE, FRONT LH [05.1990 - 08.1991] TCR11,21..LHD..MTM AUSTRIA SPEC |
58441-28020 |
US $66.25 |
||
|
91651A0818
|
91651A0818
91651-A0818 New Genuine Part |
91651-A0818 |
US $1.14 |
||
|
9010512142
|
9010512142
90105-12142 Bolt(For Front Suspension Lower Arm) |
90105-12142 |
US $3.30 |
||
|
9011612032
|
9011612032
90116-12032 New Genuine Part |
90116-12032 |
US $8.15 |
||
|
9011912201
|
9011912201
90119-12201 BOLT |
90119-12201 |
US $9.32 |
||
|
9017908258
|
9017908258
90179-08258 New Genuine Part |
90179-08258 |
US $1.75 |
||
|
9017912126
|
9017912126
90179-12126 New Genuine Part |
90179-12126 |
US $3.49 |
||
|
9095001824
|
9095001824
90950-01824 PLUG HOLE |
90950-01824 |
from US $1.97 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.76 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
|
904670500501
|
904670500501
90467-05005-01 Clip(For Room Partition Board) |
90467-05005-01 |
US $2.15 |
||
