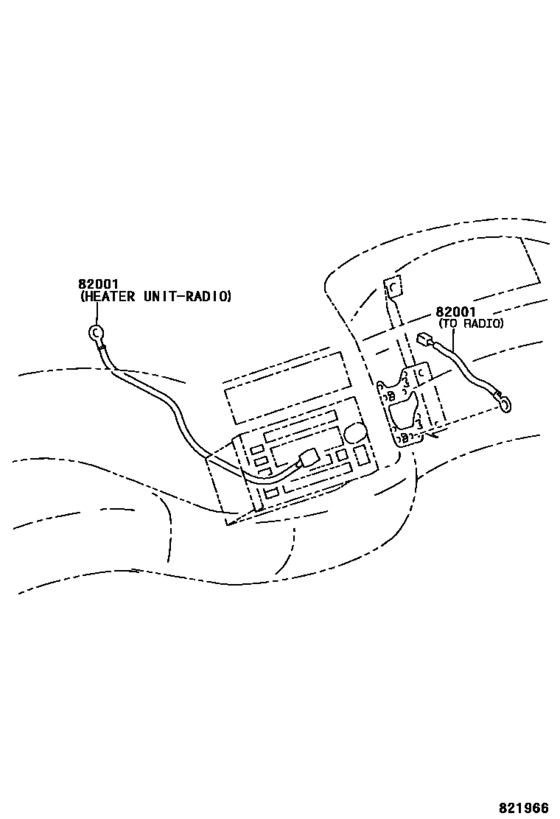

Wiring & Clamp ([07.1994 - ] CABLE BOND (9407- )) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1999
- Sales region
- General
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- MTM
- DESTINATION
- W
- From
- 05.1990
- To
- 12.1999
- Seating Capacity
- 07S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07310 Cable, Bond, No.1[05.1990 - 03.1996] TCR1#,2# TO IG COIL |
90980-07310 |
US $4.37 |
||
|
82001
|
82001
90980-07328 Cable, Bond, No.1[05.1990 - 08.1993] TCR1#,2# TO TRANSMISSION |
90980-07328 |
US $8.15 |
||
|
82001
|
82001
90980-07331 Cable, Bond, No.1[05.1990 - 08.1993] TCR1#,2# TO ENGIN |
90980-07331 |
US $8.15 |
||
|
82001
|
82001
90980-07342 Cable, Bond, No.1[08.1994 - 05.1996] TCR11..ARL AM/FM ETR CST CD *AF OR AM/FM ETR CST,TO RADIO; TCR11,21..W AM/FM/LW ETR CST OR AM/FM/LW ETR CST *AF,HEATER UNIT-RADIO; TCR10,20..W W(LW/AM/FM ETR CST),TO RADIO |
90980-07342 |
US $6.99 |
||
|
82001
|
82001
90980-07378 Cable, Bond, No.1[03.1996 - 12.1999] TCR1#,2# TO IG COIL |
90980-07378 |
US $6.84 |
||
|
82001
|
82001
90980-07379 Cable, Bond, No.1[08.1993 - 07.1994] TCR1#..ARL; TCR11,21..LHD W(LW/AM/FM ETR) |
90980-07379 |
US $13.25 |
||
|
82001
|
82001
90980-07385 Cable, Bond, No.1[03.1996 - 12.1999] TCR1#,2# FROM E/G |
90980-07385 |
US $10.63 |
||
|
82001
|
82001
90980-07391 Cable, Bond, No.1[08.1996 - 12.1999] TCR1#,2#..W W(LW/AM/FM MPX ETR CST RDS) OR W(LW/AM/FM MPXETR CST RDS),TO RADIO,L=130 |
90980-07391 |
US $10.63 |
