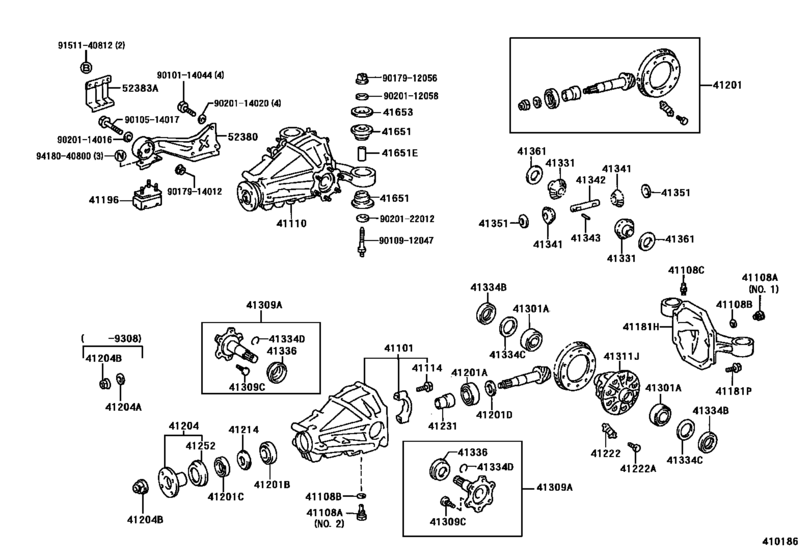

Rear Axle Housing & Differential ([05.1990 - ] (9005- )TCR11,21) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1993
- Sales region
- General
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 05.1990
- To
- 08.1993
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-28030
Carrier Sub-Assy, Differential, Rear
[05.1990 - 12.1999] TCR11,21 |
41101-28030 |
— | ||
|
41108A
|
41108A
90341-18006 Plug (No magnet)[05.1990 - 12.1999] TCR11,21 NO.1 |
90341-18006 |
from US $3.23 |
||
|
41108A
|
41108A
90341-18030 Plug (For Rear Differential Carrier Cover)[05.1990 - 12.1999] TCR11,21 NO.2 |
90341-18030 |
US $3.40 |
||
|
41108B
|
41108B
12157-10010 Gasket (For Drain Plug)[05.1990 - 12.1999] TCR11,21 |
12157-10010 |
from US $0.74 |
||
|
41108C
|
41108C
90930-03031 Plug, Breather(For Parking Cover)[05.1990 - 12.1999] TCR11,21 |
90930-03031 |
from US $6.34 |
||
|
41110
|
41110
41110-28200 Carrier Assy, Differential, Rear[05.1990 - 08.1991] TCR21..ARL;TCR11..ATM;TCR11..MTM..ARL *FGR=43:10=4.300 |
41110-28200 |
US $3,115.84 |
||
|
41114
|
41114
90105-12163 Bolt, Rear Differential Bearing Cap[05.1990 - 12.1999] TCR11,21 |
90105-12163 |
US $2.48 |
||
|
41181H
|
41181H
41181-28030 Cover, Rear Differential Carrier[05.1990 - 12.1999] TCR11,21 |
41181-28030 |
US $270.82 |
||
|
41181P
|
41181P
90119-10307
Bolt (For Front Differential Carrier Cover Setting)
[05.1990 - 10.1993] TCR11,21 |
90119-10307 |
— | ||
|
41196
|
41196
41196-28020 Damper, Rear Differential Dynamic[05.1990 - 06.1990] TCR11..MTM;TCR21..ARL |
41196-28020 |
US $113.57 |
||
|
41201
|
41201
41201-80004 Final Gear Kit, Differential, Rear[05.1990 - 08.1991] TCR11..ATM;TCR10,2#..ARL;TCR11..MTM..ARL *FGR=43:10=4.300 |
41201-80004 |
US $822.93 |
||
|
41201A
|
41201A
90366-35023 Bearing (For Rear Drive Pinion Rear)[05.1990 - 08.1990] TCR1#,2# |
90366-35023 |
from US $42.84 |
||
|
41201B
|
41201B
90366-30022
Bearing (For Rear Drive Pinion Front)
[05.1990 - 08.1990] TCR1#,2#; TCR10,20..W |
90366-30022 |
— | ||
| replacement | |||||
|
41201B
|
41201B
90366-30078 Bearing (For Rear Drive Pinion Front)[05.1990 - 08.1990] TCR1#,2#; TCR10,20..W |
90366-30078 |
from US $32.94 |
||
|
41201C
|
41201C
90311-38010 Seal, Oil (For Rear Differential Carrier)[05.1990 - 12.1999] TCR11,21 |
90311-38010 |
from US $11.11 |
||
|
41201D
|
41201D
90201-35396 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.36,MARK 05 |
90201-35396 |
US $5.38 |
||
|
41201D
|
41201D
90201-35397 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.39,MARK 06 |
90201-35397 |
US $5.38 |
||
|
41201D
|
41201D
90201-35398 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.42,MARK 07 |
90201-35398 |
US $5.38 |
||
|
41201D
|
41201D
90201-35399 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.43,MARK 08 |
90201-35399 |
US $5.38 |
||
|
41201D
|
41201D
90201-35400 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.48,MARK 09 |
90201-35400 |
US $5.38 |
||
|
41201D
|
41201D
90201-35401 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.51,MARK 10 |
90201-35401 |
US $5.38 |
||
|
41201D
|
41201D
90201-35402 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.54,MARK 11 |
90201-35402 |
US $3.72 |
||
|
41201D
|
41201D
90201-35403 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.57,MARK 12 |
90201-35403 |
US $5.38 |
||
|
41201D
|
41201D
90201-35404 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.60,MARK 13 |
90201-35404 |
US $5.38 |
||
|
41201D
|
41201D
90201-35434
Washer, Plate (For Rear Differential Drive Pinion)
[05.1990 - 09.1993] TCR1#,2# T=2.24,MARK 01 |
90201-35434 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 09.1993] TCR1#,2# T=2.24,MARK 01 |
90201-35515 |
US $2.15 |
||
|
41201D
|
41201D
90201-35435
Washer, Plate (For Rear Differential Drive Pinion)
[05.1990 - 09.1993] TCR1#,2# T=2.27,MARK 02 |
90201-35435 |
— | ||
| replacements | |||||
|
41201D
|
41201D
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 09.1993] TCR1#,2# T=2.27,MARK 02 |
90201-35516 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 09.1993] TCR1#,2# T=2.27,MARK 02 |
90201-35517 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35436
Washer, Plate (For Rear Differential Drive Pinion)
[05.1990 - 09.1993] TCR1#,2# T=2.30,MARK 03 |
90201-35436 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 09.1993] TCR1#,2# T=2.30,MARK 03 |
90201-35517 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35437
Washer, Plate (For Rear Differential Drive Pinion)
[05.1990 - 09.1993] TCR1#,2# T=2.33,MARK 04 |
90201-35437 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 09.1993] TCR1#,2# T=2.33,MARK 04 |
90201-35518 |
from US $2.15 |
||
|
41201D
|
41201D
90201-35438 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.63,MARK 14 |
90201-35438 |
US $5.38 |
||
|
41201D
|
41201D
90201-35439 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.66,MARK 15 |
90201-35439 |
US $5.38 |
||
|
41201D
|
41201D
90201-35440 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.69,MARK 16 |
90201-35440 |
US $5.38 |
||
|
41201D
|
41201D
90201-35441 Washer, Plate (For Rear Differential Drive Pinion)[05.1990 - 12.1999] TCR1#,2# T=2.72,MARK 17 |
90201-35441 |
US $3.72 |
||
|
41204
|
41204
41204-35050 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[05.1990 - 12.1999] TCR1#,2# |
41204-35050 |
US $73.58 |
||
|
41204A
|
41204A
90201-18485 Washer, Plate (For Transfer Gear)[05.1990 - 04.1993] TCR1#,2# |
90201-18485 |
US $5.91 |
||
|
41204B
|
41204B
90179-18001 Nut (For Transfer Gear)[05.1990 - 04.1993] TCR1#,2# |
90179-18001 |
from US $4.48 |
||
|
41214
|
41214
41214-30021 Slinger, Rear Differential Drive Pinion Oil[05.1990 - 12.1999] TCR1#,2# |
41214-30021 |
US $16.13 |
||
|
41222
|
41222
41222-35030 Plate, Rear Differential Ring Gear Set Bolt Lock[05.1990 - 12.1999] TCR1#,2# |
41222-35030 |
US $2.15 |
||
|
41222A
|
41222A
90101-11353 Bolt (For Rear Differential Ring Gear Set)[05.1990 - 12.1999] TCR1#,2# |
90101-11353 |
from US $0.90 |
||
|
41231
|
41231
41231-22010 Spacer, Rear Differential Drive Pinion Bearing[05.1990 - 12.1999] TCR1#,2# |
41231-22010 |
from US $10.39 |
||
|
41252
|
41252
41252-30010 Deflector, Dust (For Rear Differential)[05.1990 - 12.1999] TCR1#,2# |
41252-30010 |
US $8.24 |
||
|
41301A
|
41301A
90368-50006 Bearing(For Rear Differential Case)[05.1990 - 12.1999] TCR11,21 |
90368-50006 |
from US $41.59 |
||
|
41309A
|
41309A
41309-28020 Shaft Sub-Assy, Rear Differential Side Gear[05.1990 - 12.1999] TCR11,21 |
41309-28020 |
from US $155.20 |
||
|
41309C
|
41309C
90114-10028 Bolt (For Rear Differential Side Gear Shaft)[05.1990 - 12.1999] TCR11,21 |
90114-10028 |
US $2.15 |
||
|
41311J
|
41311J
41311-22060 Case Sub-Assy, Rear Differential[05.1990 - 09.1992] TCR11,21 |
41311-22060 |
from US $220.15 |
||
|
41331
|
41331
41331-14040
Gear, Rear Differential Side
[11.1991 - 09.1992] TCR11,21 |
41331-14040 |
— | ||
| replacement | |||||
|
41331
|
41331
41331-14041 Gear, Rear Differential Side[11.1991 - 09.1992] TCR11,21 |
41331-14041 |
US $81.48 |
||
|
41331
|
41331
41331-22041
Gear, Rear Differential Side
[05.1990 - 11.1991] TCR11,21 |
41331-22041 |
— | ||
| replacement | |||||
|
41331
|
41331
41331-14041 Gear, Rear Differential Side[05.1990 - 11.1991] TCR11,21 |
41331-14041 |
US $81.48 |
||
|
41334B
|
41334B
90311-38011 Seal, Oil (For Rear Differential Side Gear Shaft)[05.1990 - 12.1999] TCR11,21 |
90311-38011 |
from US $8.42 |
||
|
41334C
|
41334C
90201-65007 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.58 |
90201-65007 |
US $6.27 |
||
|
41334C
|
41334C
90201-65008 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.61 |
90201-65008 |
US $4.54 |
||
|
41334C
|
41334C
90201-65009 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.64 |
90201-65009 |
US $4.54 |
||
|
41334C
|
41334C
90201-65010 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.67 |
90201-65010 |
US $4.54 |
||
|
41334C
|
41334C
90201-65011 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.70 |
90201-65011 |
US $4.54 |
||
|
41334C
|
41334C
90201-65012 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.73 |
90201-65012 |
US $4.54 |
||
|
41334C
|
41334C
90201-65013 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.76 |
90201-65013 |
US $4.54 |
||
|
41334C
|
41334C
90201-65014 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.79 |
90201-65014 |
US $4.54 |
||
|
41334C
|
41334C
90201-65015 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.82 |
90201-65015 |
US $4.54 |
||
|
41334C
|
41334C
90201-65016 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.85 |
90201-65016 |
US $4.54 |
||
|
41334C
|
41334C
90201-65017 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.88 |
90201-65017 |
US $4.54 |
||
|
41334C
|
41334C
90201-65018 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.91 |
90201-65018 |
US $4.54 |
||
|
41334C
|
41334C
90201-65019 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.94 |
90201-65019 |
US $4.54 |
||
|
41334C
|
41334C
90201-65020 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=2.97 |
90201-65020 |
US $4.54 |
||
|
41334C
|
41334C
90201-65021 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=3.00 |
90201-65021 |
US $4.54 |
||
|
41334C
|
41334C
90201-65022 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=3.03 |
90201-65022 |
US $4.54 |
||
|
41334C
|
41334C
90201-65023 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=3.06 |
90201-65023 |
US $4.54 |
||
|
41334C
|
41334C
90201-65024 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=3.09 |
90201-65024 |
US $4.54 |
||
|
41334C
|
41334C
90201-65025 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=3.12 |
90201-65025 |
US $4.54 |
||
|
41334C
|
41334C
90201-65026 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=3.15 |
90201-65026 |
US $4.54 |
||
|
41334C
|
41334C
90201-65027 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=3.18 |
90201-65027 |
US $4.54 |
||
|
41334C
|
41334C
90201-65028 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=3.21 |
90201-65028 |
US $4.54 |
||
|
41334C
|
41334C
90201-65029 Washer, Plate (For Front Differential Case)[05.1990 - 12.1999] TCR11,21 T=3.24 |
90201-65029 |
US $4.54 |
||
|
41334D
|
41334D
90521-29002 Ring, Hole Snap (For Differential Side Gear Shaft)[05.1990 - 12.1999] TCR11,21 |
90521-29002 |
from US $0.90 |
||
|
41336
|
41336
41336-22010 Cover, Dust(For Rear Differential Side Gear Shaft)[05.1990 - 12.1999] TCR11,21 |
41336-22010 |
from US $6.73 |
||
|
41341
|
41341
41341-30020
Pinion, Rear Differential
[05.1990 - 09.1992] TCR1#,2# |
41341-30020 |
— | ||
| replacement | |||||
|
41341
|
41341
41341-30050 Pinion, Rear Differential[05.1990 - 09.1992] TCR1#,2# |
41341-30050 |
US $47.54 |
||
|
41342
|
41342
41342-22020
Shaft, Rear Differential Pinion
[05.1990 - 12.1999] TCR1#,2# |
41342-22020 |
— | ||
| replacement | |||||
|
41342
|
41342
41342-22021 Shaft, Rear Differential Pinion[05.1990 - 12.1999] TCR1#,2# |
41342-22021 |
from US $13.01 |
||
|
41343
|
41343
90250-06058 Pin, Straight(For Timing Gear Case)[05.1990 - 12.1999] TCR1#,2# |
90250-06058 |
from US $1.87 |
||
|
41351
|
41351
41351-30060 Washer, Rear Differential Pinion Thrust[05.1990 - 12.1999] TCR1#,2# |
41351-30060 |
from US $2.07 |
||
|
41361
|
41361
41361-30040 Washer, Rear Differential Side Gear Thrust, No.1[05.1990 - 12.1999] TCR1#,2# T=1.0 |
41361-30040 |
US $4.30 |
||
|
41361
|
41361
41361-30050 Washer, Rear Differential Side Gear Thrust, No.1[05.1990 - 12.1999] TCR1#,2# T=1.1 |
41361-30050 |
US $4.30 |
||
|
41361
|
41361
41361-30060 Washer, Rear Differential Side Gear Thrust, No.1[05.1990 - 12.1999] TCR1#,2# T=1.2 |
41361-30060 |
US $4.30 |
||
|
41361
|
41361
41361-30070 Washer, Rear Differential Side Gear Thrust, No.1[05.1990 - 12.1999] TCR1#,2# T=1.3 |
41361-30070 |
from US $4.30 |
||
|
41651
|
41651
41651-28030
Cushion, Rear Differential Mount, No.1
[05.1990 - 12.1999] TCR11,21 |
41651-28030 |
— | ||
|
41651E
|
41651E
90387-22007 Collar (For Rear Differential Mount Cushion)[05.1990 - 12.1999] TCR11,21 |
90387-22007 |
US $12.75 |
||
|
41653
|
41653
41653-28010 Stopper, Rear Differential Mount, Upper[05.1990 - 12.1999] TCR11,21 |
41653-28010 |
US $12.67 |
||
|
52380
|
52380
52380-28010 Support, Rear Differential, No.1[05.1990 - 12.1999] TCR11,21 |
52380-28010 |
US $216.94 |
||
|
9010114044
|
9010114044
90101-14044 New Genuine Part |
90101-14044 |
US $4.22 |
||
|
9010514017
|
9010514017
90105-14017 Bolt(For Lower Control Arm) |
90105-14017 |
US $8.59 |
||
|
9010912047
|
9010912047
90109-12047 New Genuine Part |
90109-12047 |
US $8.15 |
||
|
9017912056
|
9017912056
90179-12056 Nut |
90179-12056 |
US $3.49 |
||
|
9017914012
|
9017914012
90179-14012 Nut(For Rear Suspension Arm) |
90179-14012 |
US $4.30 |
||
|
9020112058
|
9020112058
90201-12058 Washer, No.1 (For Propeller Shaft & Differential Setting) |
90201-12058 |
US $3.76 |
||
|
9020114016
|
9020114016
90201-14016 WASHER |
90201-14016 |
US $1.97 |
||
|
9020114020
|
9020114020
90201-14020 WASHER |
90201-14020 |
from US $0.99 |
||
|
9020122012
|
9020122012
90201-22012 New Genuine Part |
90201-22012 |
US $2.62 |
||
|
9151140812
|
9151140812
91511-40812 New Genuine Part |
91511-40812 |
US $2.04 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
