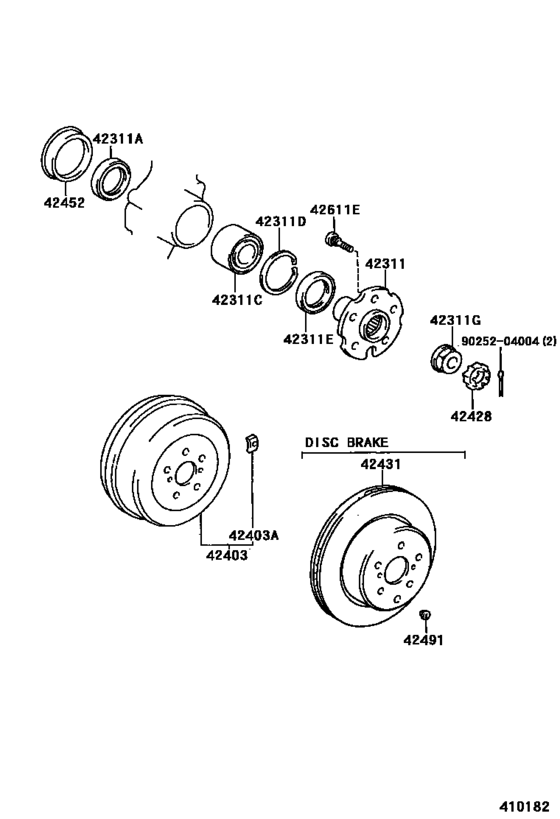

Rear Axle Shaft & Hub ([05.1990 - ] (9005- )TCR11,21) Diagram Toyota PREVIA/ TARAGO
- Year
- 1990 - 1993
- Sales region
- General
- Frame
- TCR21
- grade
- GL
- ENGINE
- 2TZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 05.1990
- To
- 08.1993
- Seating Capacity
- 07S
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311
|
42311
42311-28040
Shaft, Rear Axle
[05.1990 - 08.1991] TCR11,21 |
42311-28040 |
— | ||
|
42311A
|
42311A
90311-63001 Seal, Oil (For Rear Axle Shaft)[05.1990 - 08.1991] TCR11,21 |
90311-63001 |
US $13.44 |
||
|
42311C
|
42311C
90369-45002
Bearing (For Rear Axle Shaft)
[05.1990 - 08.1991] TCR11,21 |
90369-45002 |
— | ||
|
42311D
|
42311D
90521-82002 Ring, Snap (For Rear Axle Shaft)[05.1990 - 08.1991] TCR11,21 |
90521-82002 |
from US $4.04 |
||
|
42311E
|
42311E
90311-59002 Seal, Oil (For Rear Axle Shaft Outer)[05.1990 - 08.1991] TCR11,21 |
90311-59002 |
US $7.57 |
||
|
42311G
|
42311G
90179-24007 Nut (For Rear Axle Shaft)[05.1990 - 10.1992] TCR11,21 |
90179-24007 |
US $6.63 |
||
|
42311G
|
42311G
90179-26006 Nut (For Rear Axle Shaft)[10.1992 - 12.1999] TCR11,21 |
90179-26006 |
from US $3 |
||
|
42403
|
42403
42431-28050 Drum Sub-Assy, Rear Brake[05.1990 - 08.1991] TCR11,21 |
42431-28050 |
US $174.72 |
||
| replacement | |||||
|
42403
|
42403
42431-28080 Drum Sub-Assy, Rear Brake[05.1990 - 08.1991] TCR11,21 |
42431-28080 |
US $196.56 |
||
|
42403A
|
42403A
90937-01287 Piece, Balance (For Rear Brake Drum)[05.1990 - 08.1991] TCR1#,2# 10G |
90937-01287 |
US $2.48 |
||
|
42403A
|
42403A
90937-01288 Piece, Balance (For Rear Brake Drum)[05.1990 - 08.1991] TCR1#,2# 20G |
90937-01288 |
US $3.20 |
||
|
42403A
|
42403A
90937-01289 Piece, Balance (For Rear Brake Drum)[05.1990 - 08.1991] TCR1#,2# 30G |
90937-01289 |
US $4.22 |
||
|
42428
|
42428
42428-22010
Plate, Rear Axle Lock Nut
[05.1990 - 10.1992] TCR11,21 |
42428-22010 |
— | ||
|
42428
|
42428
42428-24010 Plate, Rear Axle Lock Nut[10.1992 - 12.1999] TCR11,21 |
42428-24010 |
from US $6.53 |
||
|
42431
|
42431
42431-14120 Disc, Rear[05.1990 - 02.1993] TCR11,21 |
42431-14120 |
US $167.44 |
||
| replacement | |||||
|
42431
|
42431
42431-14110 Disc, Rear[05.1990 - 02.1993] TCR11,21 |
42431-14110 |
US $170.35 |
||
|
42452
|
42452
42451-14010 Deflector, Rear Wheel Bearing Dust, No.1[05.1990 - 08.1991] TCR11,21 |
42451-14010 |
US $12.19 |
||
|
42452
|
42452
42451-28010 Deflector, Rear Wheel Bearing Dust, No.2[05.1990 - 08.1991] TCR11,21..ARL W(ABS & RR DISC BRAKE) |
42451-28010 |
from US $13.48 |
||
|
42491
|
42491
47491-14010 Plug, Shoe Adjusting Hole (For Parking Brake)[05.1990 - 08.1991] TCR11,21 |
47491-14010 |
US $4.12 |
||
|
42491
|
42491
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[05.1990 - 08.1991] TCR11,21 W(RR DISC BRAKE) |
47491-22020 |
from US $1.77 |
||
|
42611E
|
42611E
90942-02049 Bolt, Hub[05.1990 - 08.1991] TCR11,21 |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42611E
|
42611E
90942-02082 Bolt, Hub[05.1990 - 08.1991] TCR11,21 |
90942-02082 |
from US $2.32 |
||
|
9025204004
|
9025204004
90252-04004 PIN COTTER |
90252-04004 |
from US $0.80 |
||
