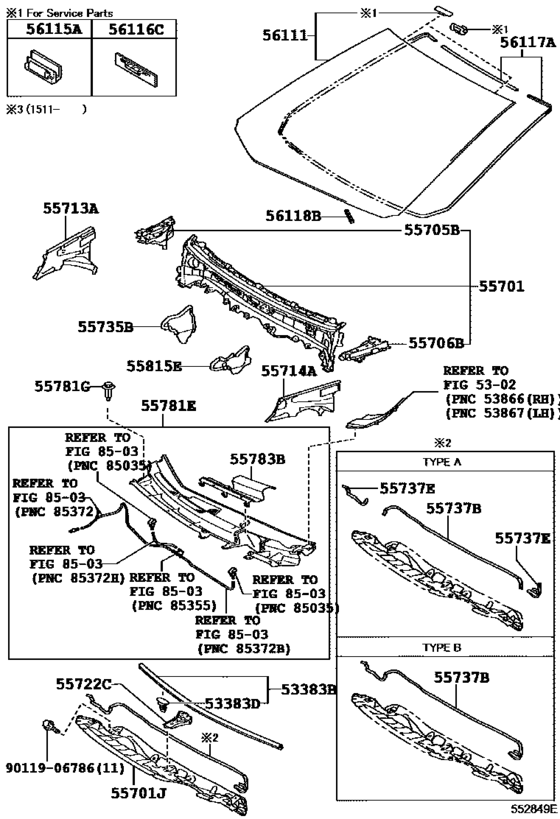

Cowl Panel & Windshield Glass ([12.2011 - ] (1112- )LHD) Diagram Toyota PRIUS
- Year
- 2011 - 2017
- Sales region
- General
- Frame
- NHP10
- body
- SED
- ENGINE
- 1NZFXE
- DESTINATION
- GEN
- Model
- PRIUS C
- From
- 12.2011
- To
- 06.2017
- Gear Shift Type
- CVT
- No.of Doors
- 5D
- Vehicle Model
- PRIUS C
- Model Mark
- V
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-52140 Seal, Hood To Cowl Top[12.2011 - 12.2014] NHP10 |
53383-52140 |
US $13.12 |
||
|
53383D
|
53383D
67867-12150 Clip(For Hood Air Intake Duct Seal)[12.2011 - 12.2014] NHP10 |
67867-12150 |
from US $1.60 |
||
|
55701
|
55701
55700-52370
Panel Sub-Assy, Cowl
[12.2011 - 12.2014] NHP10..LHD |
55700-52370 |
— | ||
| replacement | |||||
|
55701
|
55701
55700-52371
Panel Sub-Assy, Cowl
[12.2011 - 12.2014] NHP10..LHD |
55700-52371 |
— | ||
|
55701
|
55701
55700-52371
Panel Sub-Assy, Cowl
[01.2017 -] NHP10..LHD |
55700-52371 |
— | ||
|
55701J
|
55701J
55701-52310 Panel Sub-Assy, Cowl Top, Outer[12.2011 - 12.2014] NHP10..LHD |
55701-52310 |
US $133.95 |
||
|
55705B
|
55705B
55705-52180 Panel Sub-Assy, Cowl Top Side, Rh[12.2011 - 12.2014] NHP10 |
55705-52180 |
US $53.66 |
||
|
55706B
|
55706B
55706-52180 Panel Sub-Assy, Cowl Top Side, Lh[12.2011 - 12.2014] NHP10 |
55706-52180 |
US $53.66 |
||
|
55713A
|
55713A
55713-52130 Panel, Cowl Top Side, Rh[12.2011 - 12.2014] NHP10 |
55713-52130 |
US $49.55 |
||
|
55714A
|
55714A
55714-52130 Panel, Cowl Top Side, Lh[12.2011 - 12.2014] NHP10 |
55714-52130 |
from US $47.91 |
||
|
55722C
|
55722C
55722-52170 Brace, Cowl Top To Cowl, Inner[12.2011 - 12.2014] NHP10 |
55722-52170 |
US $14.12 |
||
|
55735B
|
55735B
55735-52110 Seal, Front Air Shutter[12.2011 - 12.2014] NHP10 |
55735-52110 |
US $8.88 |
||
|
55737B
|
55737B
55737-52160 Seal, Heater Air Duct Splash Shield, No.1[12.2011 - 12.2014] NHP10 TYPE A:REFER ILLUST. |
55737-52160 |
US $9.03 |
||
|
55737B
|
55737B
55737-52180 Seal, Heater Air Duct Splash Shield, No.1[12.2011 - 12.2014] NHP10 TYPE B:REFER ILLUST. |
55737-52180 |
US $10.19 |
||
|
55737E
|
55737E
55737-52170 Seal, Heater Air Duct Splash Shield, No.2[12.2011 - 12.2014] NHP10 TYPE A:REFER ILLUST. |
55737-52170 |
US $4.48 |
||
|
55781E
|
55781E
55708-52290
Louver Sub-Assy, Cowl Top Ventilator
[12.2011 - 12.2014] NHP10..LHD |
55708-52290 |
— | ||
| replacement | |||||
|
55781E
|
55781E
55708-52291
Louver Sub-Assy, Cowl Top Ventilator
[12.2011 - 12.2014] NHP10..LHD |
55708-52291 |
— | ||
|
55781E
|
55781E
55708-52291
Louver Sub-Assy, Cowl Top Ventilator
[04.2016 -] NHP10..LHD |
55708-52291 |
— | ||
|
55781G
|
55781G
52161-16010 Clip[12.2011 - 12.2014] NHP10 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
55781G
|
55781G
52161-0K040 Clip[12.2011 - 12.2014] NHP10 |
52161-0K040 |
from US $1.50 |
||
|
55781G
|
55781G
52161-02020 Clip[12.2011 - 12.2014] NHP10 |
52161-02020 |
US $5.27 |
||
|
55783B
|
55783B
55783-52310
Louver, Cowl Top Ventilator, Center No.1
[12.2011 - 12.2014] NHP10..LHD |
55783-52310 |
— | ||
|
55815E
|
55815E
55815-52060 Seal, Front Ventilator, No.1[12.2011 - 12.2014] NHP10 |
55815-52060 |
US $7.86 |
||
|
56111
|
56111
56101-52935
Glass, Windshield
[12.2011 - 12.2014] NHP10..LHD |
56101-52935 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[12.2011 - 12.2014] NHP10 |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[12.2011 - 12.2014] NHP10 |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-50130 Dam, Window Glass Adhesive[12.2011 - 12.2014] NHP10 *D,L=3202 OR 613 |
56117-50130 |
from US $24.14 |
||
|
56118B
|
56118B
56118-30100 Dam, Window Glass Adhesive, No.2[11.2015 -] NHP10 L=25 |
56118-30100 |
US $3.85 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.44 |
||
