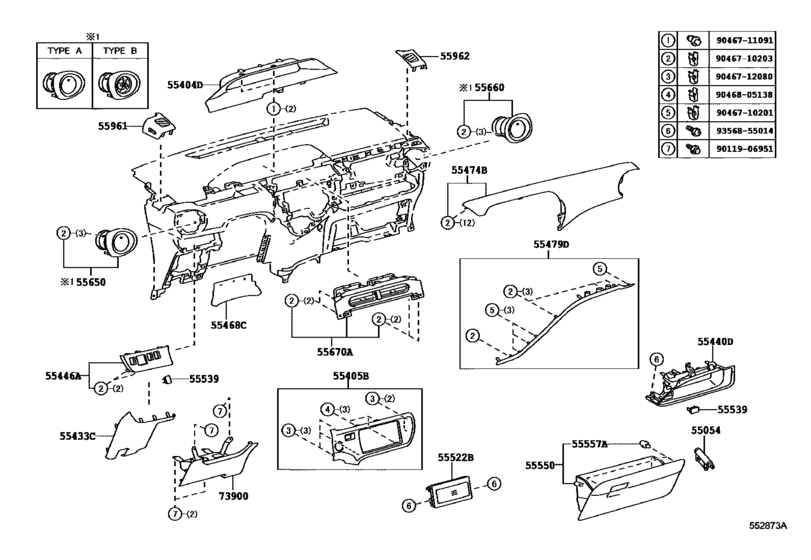

Instrument Panel & Glove Compartment ([12.2011 - ] (1112- )LHD) Diagram Toyota PRIUS
- Year
- 2011 - 2017
- Sales region
- General
- Frame
- NHP10
- body
- SED
- ENGINE
- 1NZFXE
- DESTINATION
- GEN
- Model
- PRIUS C
- From
- 12.2011
- To
- 06.2017
- Gear Shift Type
- CVT
- No.of Doors
- 5D
- Vehicle Model
- PRIUS C
- Model Mark
- V
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-52020 Stopper Sub-Assy, Glove Compartment Door[12.2011 - 12.2014] NHP10 |
55054-52020 |
US $10.56 |
||
|
55404D
|
55404D
55404-52110-C0
Panel Sub-Assy, Instrument Cluster Finish
[12.2011 - 12.2014] NHP10..LHD BLACK,TRIM2# |
55404-52110-C0 |
— | ||
|
55405B
|
55405B
55405-52880-C0
Panel Sub-Assy, Instrument Cluster Finish, Center
[12.2011 - 12.2014] NHP10..LHD AUDIO-AM(10KHZ STEP) & CD & *BT & 6SPEAKER,BLACK,TRIM2#; NHP10..LHD AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER,BLACK,TRIM2# |
55405-52880-C0 |
— | ||
|
55405B
|
55405B
55405-52890-C0
Panel Sub-Assy, Instrument Cluster Finish, Center
[12.2011 - 12.2014] NHP10..LHD BLACK,TRIM2# |
55405-52890-C0 |
— | ||
|
55405B
|
55405B
55405-52C70-C0
Panel Sub-Assy, Instrument Cluster Finish, Center
[12.2014 -] NHP10..LHD BLACK,TRIM2# |
55405-52C70-C0 |
— | ||
|
55433C
|
55433C
55433-52110-C0
Panel, Instrument Panel Finish, Lower Lh
[12.2011 - 12.2014] NHP10..LHD BLACK,TRIM2# |
55433-52110-C0 |
— | ||
|
55440D
|
55440D
55440-52120-C0
Box Assy, Instrument Panel
[12.2011 - 12.2014] NHP10..LHD BLACK,TRIM21,28 |
55440-52120-C0 |
— | ||
|
55440D
|
55440D
55440-52120-J1
Box Assy, Instrument Panel
[12.2011 - 12.2014] NHP10..LHD SEAT COVER MATERIAL-FABRIC(FOR S),BLACK/HV BLUE,TRIM28 |
55440-52120-J1 |
— | ||
|
55440D
|
55440D
55440-52170-B0
Box Assy, Instrument Panel
[12.2013 - 12.2014] NHP10..LHD SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/SILVER ME.,TRIM2# |
55440-52170-B0 |
— | ||
|
55440D
|
55440D
55440-52170-B1
Box Assy, Instrument Panel
[12.2014 -] NHP10..LHD BLACK/SILVER,TRIM2# |
55440-52170-B1 |
— | ||
|
55446A
|
55446A
55446-52110-C0
Base, Switch Hole, No.1
[12.2011 - 12.2014] NHP10..LHD BLACK,TRIM2# |
55446-52110-C0 |
— | ||
| replacement | |||||
|
55446A
|
55446A
55446-52130-C0
Base, Switch Hole, No.1
[12.2011 - 12.2014] NHP10..LHD BLACK,TRIM2# |
55446-52130-C0 |
— | ||
|
55446A
|
55446A
55446-52130-C0
Base, Switch Hole, No.1
[11.2015 -] NHP10..LHD BLACK,TRIM2# |
55446-52130-C0 |
— | ||
|
55468C
|
55468C
55468-52090 Seal, Instrument Cluster Finish Panel, No.1[12.2011 - 12.2014] NHP10 |
55468-52090 |
US $2.48 |
||
|
55474B
|
55474B
55470-52090-C0
Garnish, Instrument Cluster Finish Panel
[12.2011 - 12.2014] NHP10..LHD SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
55470-52090-C0 |
— | ||
|
55474B
|
55474B
55470-52090-C1
Garnish, Instrument Cluster Finish Panel
[12.2014 -] NHP10..LHD SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK(SYNTHETIC LTR SEAT),TRIM2# |
55470-52090-C1 |
— | ||
|
55474B
|
55474B
55474-52030-B0
Garnish, Instrument Cluster Finish Panel
[12.2011 - 12.2014] NHP10..LHD LT.BLUE GRAY,TRIM2# |
55474-52030-B0 |
— | ||
|
55474B
|
55474B
55474-52140-C0
Garnish, Instrument Cluster Finish Panel
[12.2014 -] NHP10..LHD SEAT COVER MATERIAL-FABRIC(BASE GRADE),BLACK,TRIM20 |
55474-52140-C0 |
— | ||
|
55474B
|
55474B
55474-52140-J1
Garnish, Instrument Cluster Finish Panel
[12.2014 -] NHP10..LHD BLUE ME.,TRIM20 |
55474-52140-J1 |
— | ||
|
55479D
|
55479D
55479-52030-B1
Garnish, Instrument Cluster Finish Panel, Lower
[12.2011 - 12.2014] NHP10..LHD LT.BLUE GRAY,TRIM28 |
55479-52030-B1 |
— | ||
|
55479D
|
55479D
55479-52030-C0
Garnish, Instrument Cluster Finish Panel, Lower
[12.2011 - 12.2014] NHP10..LHD SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28 |
55479-52030-C0 |
— | ||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[12.2011 - 12.2014] NHP10 |
55522-52020 |
from US $14.14 |
||
|
55539
|
55539
55539-52060-C0 Cover, Spare Switch Hole[12.2011 - 12.2014] NHP10 BLACK,TRIM2# |
55539-52060-C0 |
from US $3.53 |
||
|
55539
|
55539
55539-52060-C4 Cover, Spare Switch Hole[01.2017 -] NHP10 BLACK,TRIM2#; NHP10..ARL PRE-COLLISION SYSTEM-WITH,BLACK,TRIM2# |
55539-52060-C4 |
US $3.52 |
||
|
55550
|
55550
55550-52320-C0
Door Assy, Glove Compartment
[12.2011 - 12.2014] NHP10..LHD BLACK,TRIM2# |
55550-52320-C0 |
— | ||
|
55550
|
55550
55550-52321-C0
Door Assy, Glove Compartment
[03.2017 - 06.2017] NHP10..LHD BLACK,TRIM2# |
55550-52321-C0 |
— | ||
|
55557A
|
55557A
55557-60050 Cushion, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [12.2011 - 12.2014] NHP10 |
55557-60050 |
from US $0.82 |
||
|
55650
|
55650
55011-52010-C0 Register Assy, Instrument Panel, No.1[12.2014 -] NHP10..GEN BLACK,TRIM2#,TYPE B:REFER ILLUST. |
55011-52010-C0 |
US $67.70 |
||
|
55650
|
55650
55011-52020-C0 Register Assy, Instrument Panel, No.1[12.2014 -] NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,TYPE B:REFER ILLUST. |
55011-52020-C0 |
US $80.08 |
||
|
55650
|
55650
55650-52290-C0 Register Assy, Instrument Panel, No.1[12.2011 - 02.2013] NHP10 BLACK,TRIM2# |
55650-52290-C0 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-52291-C0 Register Assy, Instrument Panel, No.1[12.2011 - 02.2013] NHP10 BLACK,TRIM2# |
55650-52291-C0 |
US $62.03 |
||
|
55650
|
55650
55650-52291-C0 Register Assy, Instrument Panel, No.1[03.2013 - 12.2014] NHP10 BLACK,TRIM2# |
55650-52291-C0 |
US $62.03 |
||
|
55650
|
55650
55650-52300-C0 Register Assy, Instrument Panel, No.1[12.2011 - 02.2013] NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
55650-52300-C0 |
US $91.73 |
||
| replacement | |||||
|
55650
|
55650
55650-52301-C0 Register Assy, Instrument Panel, No.1[12.2011 - 02.2013] NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
55650-52301-C0 |
US $75.71 |
||
|
55650
|
55650
55650-52301-C0 Register Assy, Instrument Panel, No.1[03.2013 - 12.2014] NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
55650-52301-C0 |
US $75.71 |
||
|
55650
|
55650
55650-52420-C0 Register Assy, Instrument Panel, No.1[12.2014 -] NHP10..ARL BLACK,TRIM2#,TYPE A:REFER ILLUST.; NHP10..GEN SEAT COVER MATERIAL-FABRIC(BASE GRADE),BLACK,TRIM2#,TYPE A:REFER ILLUST. |
55650-52420-C0 |
US $43.39 |
||
|
55660
|
55660
55012-52010-C0 Register Assy, Instrument Panel, No.2[12.2014 -] NHP10..GEN BLACK,TRIM2#,TYPE B:REFER ILLUST. |
55012-52010-C0 |
US $67.70 |
||
|
55660
|
55660
55012-52020-C0 Register Assy, Instrument Panel, No.2[12.2014 -] NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,TYPE B:REFER ILLUST. |
55012-52020-C0 |
US $80.08 |
||
|
55660
|
55660
55660-52060-C0 Register Assy, Instrument Panel, No.2[12.2011 - 02.2013] NHP10 BLACK,TRIM2# |
55660-52060-C0 |
US $75.71 |
||
| replacement | |||||
|
55660
|
55660
55660-52061-C0 Register Assy, Instrument Panel, No.2[12.2011 - 02.2013] NHP10 BLACK,TRIM2# |
55660-52061-C0 |
US $62.03 |
||
|
55660
|
55660
55660-52061-C0 Register Assy, Instrument Panel, No.2[03.2013 - 12.2014] NHP10 BLACK,TRIM2# |
55660-52061-C0 |
US $62.03 |
||
|
55660
|
55660
55660-52070-C0 Register Assy, Instrument Panel, No.2[12.2011 - 02.2013] NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
55660-52070-C0 |
US $91.73 |
||
| replacement | |||||
|
55660
|
55660
55660-52071-C0 Register Assy, Instrument Panel, No.2[12.2011 - 02.2013] NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
55660-52071-C0 |
US $75.71 |
||
|
55660
|
55660
55660-52071-C0 Register Assy, Instrument Panel, No.2[03.2013 - 12.2014] NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
55660-52071-C0 |
US $75.71 |
||
|
55660
|
55660
55660-52180-C0 Register Assy, Instrument Panel, No.2[12.2014 -] NHP10..ARL BLACK,TRIM2#,TYPE A:REFER ILLUST.; NHP10..GEN SEAT COVER MATERIAL-FABRIC(BASE GRADE),BLACK,TRIM2#,TYPE A:REFER ILLUST. |
55660-52180-C0 |
US $43.39 |
||
|
55670A
|
55670A
55670-52120-C0 Register Assy, Instrument Panel, Center[12.2011 - 12.2014] NHP10 BLACK,TRIM2# |
55670-52120-C0 |
US $136.86 |
||
|
55670A
|
55670A
55670-52220-C0 Register Assy, Instrument Panel, Center[12.2014 -] NHP10..ARL BLACK,TRIM2#; NHP10..GEN SEAT COVER MATERIAL-FABRIC(BASE GRADE),BLACK,TRIM2# |
55670-52220-C0 |
US $82.99 |
||
|
55670A
|
55670A
55670-52230-C0 Register Assy, Instrument Panel, Center[12.2014 -] NHP10..GEN BLACK,TRIM2#; NHP10..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
55670-52230-C0 |
US $123.76 |
||
|
55961
|
55961
55961-52030-C0 Nozzle, Side Defroster, No.1[12.2011 - 12.2014] NHP10 BLACK,TRIM2# |
55961-52030-C0 |
US $12.11 |
||
|
55962
|
55962
55962-52010-C0 Nozzle, Side Defroster, No.2[12.2011 - 12.2014] NHP10 BLACK,TRIM2# |
55962-52010-C0 |
US $11.65 |
||
|
73900
|
73900
73900-52090-C0 Air Bag Assy, Instrument Panel, Lower No.1[12.2011 - 12.2014] NHP10..LHD BLACK,TRIM2# |
73900-52090-C0 |
US $317.41 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $1.03 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046711091
|
9046711091
90467-11091 Clip(For Panel, Instrument Cluster Finish) |
90467-11091 |
from US $0.96 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9046805138
|
9046805138
90468-05138 Clip, Instrument Panel |
90468-05138 |
from US $1.07 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
