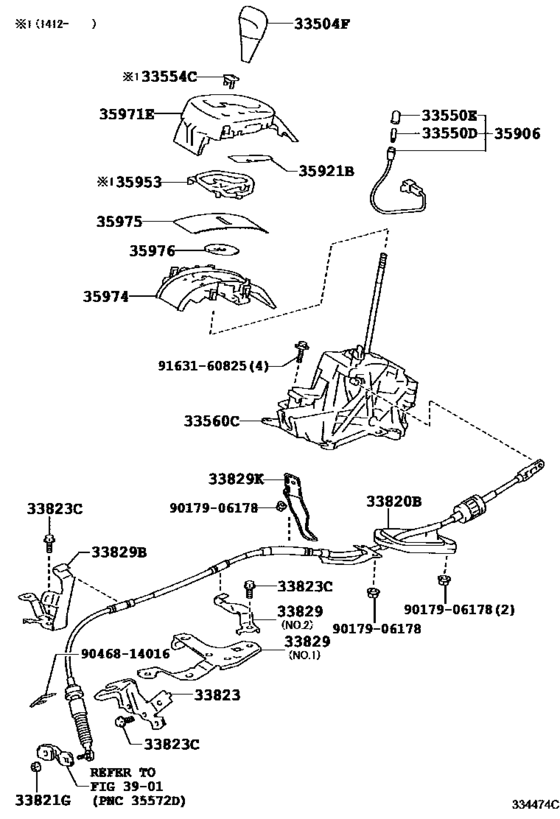

Shift Lever & Retainer ([12.2011 - ] (1112- )LHD) Diagram Toyota PRIUS
- Year
- 2011 - 2017
- Sales region
- General
- Frame
- NHP10
- body
- SED
- ENGINE
- 1NZFXE
- DESTINATION
- GEN
- Model
- PRIUS C
- From
- 12.2011
- To
- 06.2017
- Gear Shift Type
- CVT
- No.of Doors
- 5D
- Vehicle Model
- PRIUS C
- Model Mark
- V
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-52310-C0 Knob Sub-Assy, Shift Lever[12.2014 - 06.2017] NHP10..GEN DECONTENT PACKAGE(FOR GENERAL COUNTRY),BLACK,TRIM2# |
33504-52310-C0 |
US $30.58 |
||
|
33504F
|
33504F
33504-52340-C0 Knob Sub-Assy, Shift Lever[12.2011 - 12.2014] NHP10 BLACK,TRIM2# |
33504-52340-C0 |
US $45.60 |
||
|
33550D
|
33550D
35955-74010 Bulb, Position Indicator LampPOSITION INDICATOR LAMP [12.2011 - 12.2014] NHP10 12V 1.4W |
35955-74010 |
US $4.16 |
||
|
33550E
|
33550E
35956-52020 Cap, Position Indicator Lamp[12.2011 - 12.2014] NHP10 |
35956-52020 |
US $2.24 |
||
|
33554C
|
33554C
33554-52070
Cover, Shift Lock Release Button
[12.2014 - 06.2017] NHP10..LHD |
33554-52070 |
— | ||
|
33560C
|
33560C
33560-52560
Lever Assy, Shift, Lower
[12.2011 - 12.2014] NHP10..LHD |
33560-52560 |
— | ||
|
33560C
|
33560C
33560-52570
Lever Assy, Shift, Lower
[12.2014 - 06.2017] NHP10..LHD |
33560-52570 |
— | ||
|
33820B
|
33820B
33820-52800 Cable Assy, Transmission Control[12.2011 - 12.2014] NHP10 |
33820-52800 |
US $204.48 |
||
|
33821G
|
33821G
94151-80800 Nut (For Transmission Control Cable)[12.2011 - 12.2014] NHP10 |
94151-80800 |
from US $0.80 |
||
|
33823
|
33823
33823-52140 Bracket, Transmission Control Cable, No.1[12.2011 - 12.2014] NHP10 |
33823-52140 |
US $21.13 |
||
|
33823C
|
33823C
91671-80816 Bolt (For Transmission Control Cable Bracket)[12.2011 - 12.2014] NHP10 |
91671-80816 |
from US $0.88 |
||
|
33829
|
33829
33829-52190 Support, Transmission Control Cable[12.2011 - 12.2014] NHP10 NO.1 |
33829-52190 |
US $11.65 |
||
|
33829
|
33829
33829-52200 Support, Transmission Control Cable[12.2011 - 12.2014] NHP10 NO.2 |
33829-52200 |
US $5.82 |
||
|
33829B
|
33829B
33829-52180 Clamp, Transmission Control Cable[12.2011 - 12.2014] NHP10 |
33829-52180 |
US $8.30 |
||
|
33829K
|
33829K
33829-52170 Support, Transmission Control CableTRANSMISSION CONTROL CABLE [12.2011 - 12.2014] NHP10 |
33829-52170 |
US $5.97 |
||
|
35906
|
35906
35906-52210
Wire Sub-Assy, Indicator Lamp
[12.2011 - 12.2014] NHP10..LHD |
35906-52210 |
— | ||
|
35921B
|
35921B
35921-52200
Plate, Control Position Indicator No,2
[12.2011 - 12.2014] NHP10..LHD |
35921-52200 |
— | ||
|
35921B
|
35921B
35921-52230
Plate, Control Position Indicator No,2
[12.2014 - 06.2017] NHP10..LHD |
35921-52230 |
— | ||
|
35953
|
35953
35953-52130
Guide, Position Indicator Light
[12.2014 - 06.2017] NHP10..LHD |
35953-52130 |
— | ||
|
35971E
|
35971E
35971-52560
Housing, Position Indicator
[12.2011 - 12.2014] NHP10..LHD |
35971-52560 |
— | ||
|
35971E
|
35971E
35971-52570
Housing, Position Indicator
[12.2014 - 06.2017] NHP10..LHD |
35971-52570 |
— | ||
|
35974
|
35974
35974-52090
Housing, Position Indicator, Lower
[12.2011 - 12.2014] NHP10..LHD |
35974-52090 |
— | ||
|
35974
|
35974
35974-52120
Housing, Position Indicator, Lower
[12.2014 - 06.2017] NHP10..LHD |
35974-52120 |
— | ||
|
35975
|
35975
35975-52140 Cover, Slide (For Position Indicator)[12.2011 - 12.2014] NHP10 |
35975-52140 |
US $6.99 |
||
|
35976
|
35976
35976-52140 Cover, Slide, No.2 (For Position Indicator)[12.2011 - 12.2014] NHP10 |
35976-52140 |
US $4.40 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.84 |
