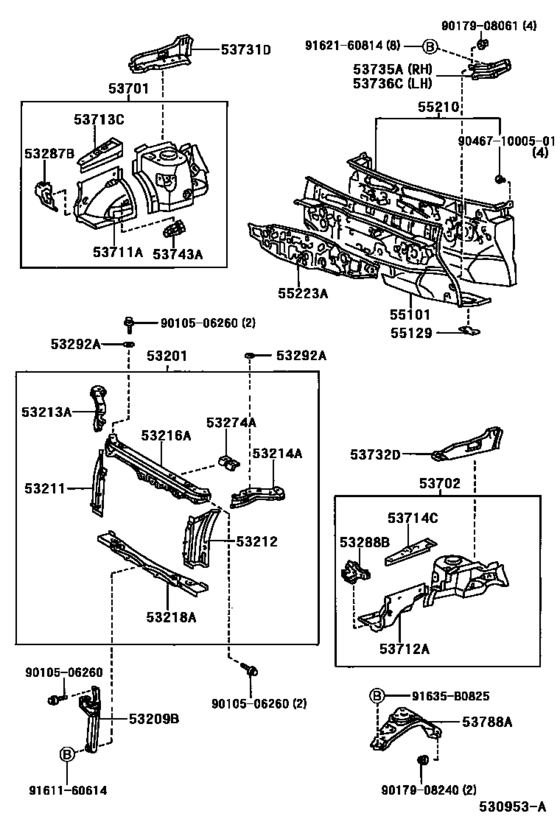

Front Fender Apron & Dash Panel ([05.2000 - ] (0005- )) Diagram Toyota PRIUS
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- NHW11
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 05.2000
- To
- 08.2003
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-47030 Support Sub-Assy, Radiator[05.2000 -] NHW11 |
53201-47030 |
US $432.43 |
||
|
53209B
|
53209B
53209-47010 Brace Sub-Assy, Hood Lock Support[05.2000 -] NHW11 |
53209-47010 |
US $29.27 |
||
|
53211
|
53211
53211-47020 Support, Radiator, Rh[05.2000 -] NHW11 |
53211-47020 |
US $75.71 |
||
|
53212
|
53212
53212-47010 Support, Radiator, Lh[05.2000 -] NHW11 |
53212-47010 |
US $75.71 |
||
|
53213A
|
53213A
53213-47010
Support, Radiator, Upper Rh
[05.2000 -] NHW11 |
53213-47010 |
— | ||
|
53214A
|
53214A
53214-47010 Support, Radiator, Upper Lh[05.2000 -] NHW11 |
53214-47010 |
US $41.06 |
||
|
53216A
|
53216A
53216-47010 Support, Radiator, Upper[05.2000 -] NHW11 |
53216-47010 |
US $131.04 |
||
|
53218A
|
53218A
53218-47010 Support, Radiator, Lower[05.2000 -] NHW11 |
53218-47010 |
US $109.20 |
||
|
53274A
|
53274A
53274-47010 Reinforcement, Radiator Support, Lh[05.2000 -] NHW11 |
53274-47010 |
US $11.07 |
||
|
53287B
|
53287B
53287-47010 Extension, Radiator Support, Rh[05.2000 -] NHW11 |
53287-47010 |
US $11.07 |
||
|
53288B
|
53288B
53288-47010 Extension, Radiator Support, Lh[05.2000 -] NHW11 |
53288-47010 |
US $11.07 |
||
|
53292A
|
53292A
53292-47010 Seal, Radiator Support, Upper[05.2000 -] NHW11 |
53292-47010 |
US $0.73 |
||
|
53701
|
53701
53701-47020 Apron Sub-Assy, Front Fender, Rh[05.2000 -] NHW11 |
53701-47020 |
US $263.54 |
||
|
53702
|
53702
53702-47020 Apron Sub-Assy, Front Fender, Lh[05.2000 -] NHW11 |
53702-47020 |
US $263.54 |
||
|
53711A
|
53711A
53711-47010 Apron, Front Fender, W/support, Front Rh[05.2000 -] NHW11 |
53711-47010 |
US $82.99 |
||
|
53712A
|
53712A
53712-47020 Apron, Front Fender, W/support, Front Lh[05.2000 -] NHW11 |
53712-47020 |
US $82.99 |
||
|
53713C
|
53713C
53713-47010 Extension, Front Fender Apron, Front Rh[05.2000 -] NHW11 |
53713-47010 |
US $19.95 |
||
|
53714C
|
53714C
53714-47010 Extension, Front Fender Apron, Front Lh[05.2000 -] NHW11 |
53714-47010 |
US $19.95 |
||
|
53731D
|
53731D
53731-47010 Member, Front Apron To Cowl Side, Upper Rh[05.2000 -] NHW11 |
53731-47010 |
US $46.74 |
||
|
53732D
|
53732D
53732-47010 Member, Front Apron To Cowl Side, Upper Lh[05.2000 -] NHW11 |
53732-47010 |
US $46.74 |
||
|
53735A
|
53735A
53735-47010 Member, Front Apron To Cowl Side, Lower Rh[05.2000 -] NHW11 |
53735-47010 |
US $32.47 |
||
|
53736C
|
53736C
53736-47010 Member, Front Apron To Cowl Side, Lower Lh[05.2000 -] NHW11 |
53736-47010 |
US $32.47 |
||
|
53743A
|
53743A
57233-47010 Reinforcement, Front Fender Apron, Front Rh[05.2000 -] NHW11 |
57233-47010 |
US $13.69 |
||
|
53788A
|
53788A
53708-47020 Gusset, Front Fender Apron, Lower LhFRONT FENDER APRON, LOWER LH [05.2000 -] NHW11 |
53708-47020 |
US $88.82 |
||
|
55101
|
55101
55101-47030 Panel Sub-Assy, DashDASH [05.2000 -] NHW11 |
55101-47030 |
US $512.51 |
||
|
55129
|
55129
55129-12030 Cover, Dash Panel Hole[05.2000 -] NHW11 |
55129-12030 |
US $6.41 |
||
|
55210
|
55210
55210-47020 Insulator Assy, Dash PanelDASH PANEL [05.2000 -] NHW11 |
55210-47020 |
US $334.88 |
||
|
55223A
|
55223A
55223-47010 Insulator, Dash Panel, OuterDASH PANEL, OUTER [05.2000 -] NHW11 |
55223-47010 |
US $75.71 |
||
|
91635B0825
|
91635B0825
91635-B0825 New Genuine Part |
91635-B0825 |
US $1.75 |
||
| replacement | |||||
|
91635B0825
|
91635B0825
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.82 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.82 |
||
|
9017908240
|
9017908240
90179-08240 New Genuine Part |
90179-08240 |
US $2.08 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9162160814
|
9162160814
91621-60814
Bolt (For Transmission Control Cable Bracket)
|
91621-60814 |
— | ||
| replacement | |||||
|
9162160814
|
9162160814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
904671000501
|
904671000501
90467-10005-01 Clip(For Front Fender Apron Seal) |
90467-10005-01 |
US $3.36 |
||
