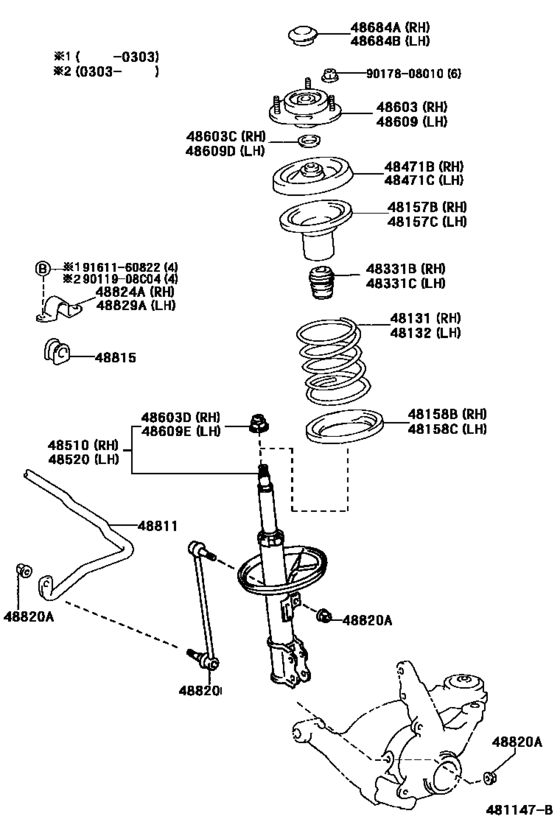

Front Spring & Shock Absorber ([05.2000 - ] (0005- )) Diagram Toyota PRIUS
- Year
- 2000 - 2003
- Sales region
- U.S.A.
- Frame
- NHW11
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 05.2000
- To
- 08.2003
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-47030 Spring, Front Coil, RhFRONT COIL, RH [05.2000 - 04.2001] NHW11 L=358.5 |
48131-47030 |
US $138.32 |
||
|
48131
|
48131
48131-47050
Spring, Front Coil, Rh
[04.2001 -] NHW11 L=332.0 |
48131-47050 |
— | ||
|
48132
|
48132
48131-47040 Spring, Front Coil, LhFRONT COIL, LH [05.2000 - 04.2001] NHW11 L=374.5 |
48131-47040 |
US $138.32 |
||
|
48132
|
48132
48131-47060
Spring, Front Coil, Lh
[04.2001 -] NHW11 L=345.5 |
48131-47060 |
— | ||
|
48157B
|
48157B
48157-47010 Insulator, Front Coil Spring, Upper Rh[05.2000 -] NHW11 |
48157-47010 |
US $35.57 |
||
|
48157C
|
48157C
48157-47010 Insulator, Front Coil Spring, Upper Rh[05.2000 -] NHW11 |
48157-47010 |
US $35.57 |
||
|
48158B
|
48158B
48158-47010 Insulator, Front Coil Spring, Lower Rh[05.2000 -] NHW11 |
48158-47010 |
from US $10.55 |
||
|
48158C
|
48158C
48158-47010 Insulator, Front Coil Spring, Lower Rh[05.2000 -] NHW11 |
48158-47010 |
from US $10.55 |
||
|
48331B
|
48331B
48331-47010 Bumper, Front Spring, Rh[05.2000 -] NHW11 |
48331-47010 |
US $32.14 |
||
|
48331C
|
48331C
48331-47010 Bumper, Front Spring, Rh[05.2000 -] NHW11 |
48331-47010 |
US $32.14 |
||
|
48471B
|
48471B
48044-47010 Seat, Front Coil Spring, Upper Rh[05.2000 -] NHW11 |
48044-47010 |
US $19.61 |
||
|
48471C
|
48471C
48044-47010 Seat, Front Coil Spring, Upper Rh[05.2000 -] NHW11 |
48044-47010 |
US $19.61 |
||
|
48510
|
48510
48510-49225 Absorber Assy, Shock, Front Rh[05.2000 -] NHW11 |
48510-49225 |
US $285.38 |
||
|
48520
|
48520
48520-49335 Absorber Assy, Shock, Front Lh[05.2000 -] NHW11 |
48520-49335 |
US $266.56 |
||
|
48603
|
48603
48609-47020 Support Sub-Assy, Front Suspension, Rh[05.2000 -] NHW11 |
48609-47020 |
US $65.48 |
||
|
48603C
|
48603C
90303-22049 Seal, Dust(For Front Suspension Support)[05.2000 -] NHW11 |
90303-22049 |
from US $3.71 |
||
|
48603D
|
48603D
94182-11400 Nut(For Idler Arm Support)[05.2000 -] NHW11 |
94182-11400 |
US $4.96 |
||
|
48609
|
48609
48609-47020 Support Sub-Assy, Front Suspension, Rh[05.2000 -] NHW11 |
48609-47020 |
US $65.48 |
||
|
48609D
|
48609D
90303-22049 Seal, Dust(For Front Suspension Support)[05.2000 -] NHW11 |
90303-22049 |
from US $3.71 |
||
|
48609E
|
48609E
94182-11400 Nut(For Idler Arm Support)[05.2000 -] NHW11 |
94182-11400 |
US $4.96 |
||
|
48684A
|
48684A
48684-12070 Cover, Front Suspension Support Dust[05.2000 - 11.2002] NHW11 |
48684-12070 |
US $14.40 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[11.2002 -] NHW11 |
48684-52010 |
from US $9.60 |
||
|
48684B
|
48684B
48684-12070 Cover, Front Suspension Support Dust[05.2000 - 11.2002] NHW11 |
48684-12070 |
US $14.40 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[11.2002 -] NHW11 |
48684-52010 |
from US $9.60 |
||
|
48811
|
48811
48811-47030 Bar, Stabilizer, Front[05.2000 -] NHW11 |
48811-47030 |
US $151.42 |
||
|
48815
|
48815
48815-28120 Bush, Front Stabilizer Bar, No.1[05.2000 -] NHW11 |
48815-28120 |
from US $7.49 |
||
|
48820
|
48820
48820-47010 Link Assy, Front Stabilizer[05.2000 -] NHW11 |
48820-47010 |
from US $75.74 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[05.2000 -] NHW11 |
90179-12151 |
from US $0.94 |
||
|
48824A
|
48824A
48824-47010 Bracket, Front Stabilizer, No.1 Rh[05.2000 -] NHW11 |
48824-47010 |
US $11.07 |
||
|
48829A
|
48829A
48824-47010 Bracket, Front Stabilizer, No.1 Rh[05.2000 -] NHW11 |
48824-47010 |
US $11.07 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
US $2.24 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
