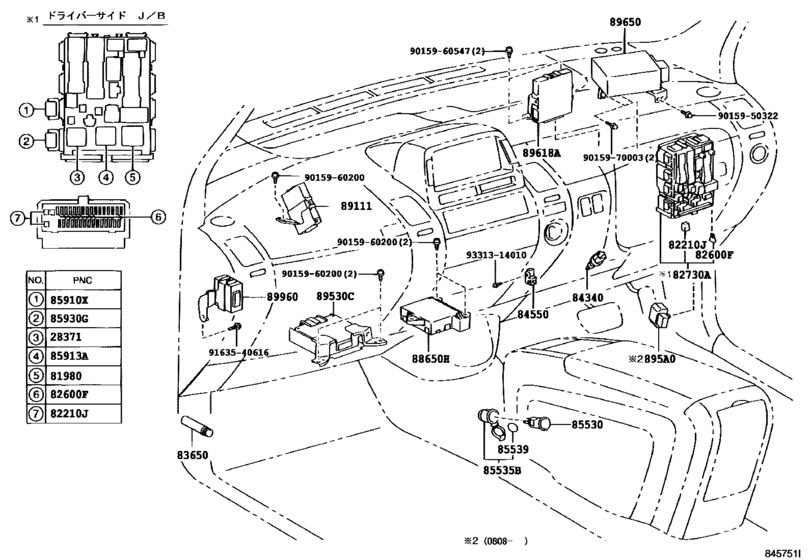

Switch & Relay & Computer ([08.2003 - ] ｶｳﾙ (0308- )) Diagram Toyota PRIUS
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- NHW20
- grade
- S
- body
- HB
- ENGINE
- 1NZFXE
- Model
- PRIUS
- From
- 08.2003
- To
- 12.2011
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-46010 Relay Assy, Stop Lamp Control[08.2008 - 11.2008] NHW20 |
895A0-46010 |
US $66.25 |
||
| replacement | |||||
|
895A0
|
895A0
895A0-46020 Relay Assy, Stop Lamp Control[08.2008 - 11.2008] NHW20 |
895A0-46020 |
US $74.78 |
||
|
895A0
|
895A0
895A0-46020 Relay Assy, Stop Lamp Control[12.2008 -] NHW20 |
895A0-46020 |
US $74.78 |
||
|
28371
|
28371
90987-02025 Relay[08.2003 - 11.2005] 1NZFXE..NHW20 |
90987-02025 |
from US $44.54 |
||
|
28371
|
28371
90987-02030 Relay, Ignition, No.1[03.2007 - 12.2011] 1NZFXE..NHW20 ピンク |
90987-02030 |
from US $44.54 |
||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[08.2003 - 11.2005] NHW20 |
81980-46010 |
from US $56.34 |
||
|
82210J
|
82210J
90982-08254 Fusible Link[08.2003 - 11.2005] NHW20 １２０Ａ，オス端子,ＰＡＣＩＦＩＣ |
90982-08254 |
US $7.04 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[08.2003 - 11.2005] NHW20 １２０Ａ，オス端子,ＹＡＺＡＫＩ |
90982-08274 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[08.2003 - 01.2005] NHW20 ３０Ａ，メス端子 |
90982-08295 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[08.2003 - 11.2005] NHW20 ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2003 - 11.2005] NHW20 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2003 - 11.2005] NHW20 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.96 |
||
|
82730A
|
82730A
82730-47160 Block Assy, Driver Side Junction[08.2003 - 01.2005] NHW20 |
82730-47160 |
US $859.04 |
||
| replacement | |||||
|
82730A
|
82730A
82730-47161 Block Assy, Driver Side Junction[08.2003 - 01.2005] NHW20 |
82730-47161 |
US $859.04 |
||
|
82730A
|
82730A
82730-47161 Block Assy, Driver Side Junction[02.2005 - 11.2005] NHW20 |
82730-47161 |
US $859.04 |
||
|
82730A
|
82730A
82730-47310 Block Assy, Driver Side Junction[11.2005 - 12.2011] NHW20 |
82730-47310 |
US $711.98 |
||
|
83650
|
83650
90986-01005
Fusee
[08.2003 - 11.2005] NHW20 |
90986-01005 |
— | ||
|
84340
|
84340
84340-30100 Switch Assy, Stop Lamp[08.2008 - 12.2011] NHW20..S |
84340-30100 |
US $37.39 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[08.2008 - 03.2009] NHW20..G; NHW20..S １０周年記念パッケージ |
84340-30110 |
from US $22.54 |
||
|
84340
|
84340
84340-47010 Switch Assy, Stop Lamp[08.2003 - 11.2005] NHW20..S |
84340-47010 |
US $33.90 |
||
|
84340
|
84340
84340-47020 Switch Assy, Stop Lamp[08.2004 - 11.2005] NHW20..S プレミアム ＊（Ｐ） |
84340-47020 |
from US $53.22 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[08.2003 - 11.2005] NHW20 |
84550-16060 |
from US $17.48 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[08.2003 - 11.2005] NHW20 |
85530-33020 |
from US $16.05 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[08.2003 - 11.2005] NHW20 |
85530-06010 |
from US $26.06 |
||
|
85535B
|
85535B
85535-60100-C0 Cover, Power Outlet Socket, No.1 (Black)[08.2003 - 11.2005] NHW20 BLACK,TRIM0#,18,19 |
85535-60100-C0 |
US $8.32 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[08.2003 - 11.2005] NHW20 |
85539-60020 |
US $1.41 |
||
|
85910X
|
85910X
90987-02027 Relay[08.2003 - 11.2005] NHW20 寒冷地仕様 |
90987-02027 |
from US $31.43 |
||
|
85913A
|
85913A
90987-04010 Relay Assy (For Heater Blower Motor)[08.2003 - 11.2005] NHW20 |
90987-04010 |
from US $42.71 |
||
|
85930G
|
85930G
90987-02027 Relay[08.2003 - 11.2005] NHW20 |
90987-02027 |
from US $31.43 |
||
|
88650H
|
88650H
88650-47050
Amplifier Assy, Air Conditioner
[08.2003 - 11.2005] NHW20 |
88650-47050 |
— | ||
|
88650H
|
88650H
88650-47051
Amplifier Assy, Air Conditioner
[11.2005 -] NHW20..S |
88650-47051 |
— | ||
|
89111
|
89111
89111-47020 Computer, Network Gateway[08.2003 - 11.2005] NHW20 |
89111-47020 |
US $541.63 |
||
|
89111
|
89111
89111-47040 Computer, Network Gateway[11.2005 -] NHW20 |
89111-47040 |
US $451.36 |
||
|
89530C
|
89530C
89535-47010 Computer Assy, Transmission Control[08.2003 - 11.2005] NHW20 |
89535-47010 |
US $767.31 |
||
|
89530C
|
89530C
89535-47020 Computer Assy, Transmission Control[11.2005 -] NHW20..S |
89535-47020 |
US $637.73 |
||
|
89618A
|
89618A
89618-47020 Computer, Power Source Control[08.2003 - 08.2004] NHW20 |
89618-47020 |
US $390.21 |
||
|
89618A
|
89618A
89618-47021 Computer, Power Source Control[08.2004 - 11.2005] NHW20 |
89618-47021 |
US $391.66 |
||
|
89618A
|
89618A
89670-47020 Computer, Power Source Control[11.2005 -] NHW20..S |
89670-47020 |
US $479.02 |
||
|
89650
|
89650
89650-47110 Computer Assy, Power Steering[08.2003 - 02.2005] NHW20 |
89650-47110 |
US $663.94 |
||
| replacement | |||||
|
89650
|
89650
89650-47113 Computer Assy, Power Steering[08.2003 - 02.2005] NHW20 |
89650-47113 |
US $690.20 |
||
|
89650
|
89650
89650-47111 Computer Assy, Power Steering[03.2005 - 11.2005] NHW20 |
89650-47111 |
US $663.94 |
||
| replacement | |||||
|
89650
|
89650
89650-47113 Computer Assy, Power Steering[03.2005 - 11.2005] NHW20 |
89650-47113 |
US $690.20 |
||
|
89650
|
89650
89650-47112 Computer Assy, Power Steering[11.2005 -] NHW20 |
89650-47112 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-47113 Computer Assy, Power Steering[11.2005 -] NHW20 |
89650-47113 |
US $690.20 |
||
|
89650
|
89650
89650-47120 Computer Assy, Power Steering[08.2003 - 02.2005] NHW20 ツーリングセレクション |
89650-47120 |
US $663.94 |
||
| replacement | |||||
|
89650
|
89650
89650-47123 Computer Assy, Power Steering[08.2003 - 02.2005] NHW20 ツーリングセレクション |
89650-47123 |
US $663.94 |
||
|
89650
|
89650
89650-47121 Computer Assy, Power Steering[03.2005 - 11.2005] NHW20 ツーリングセレクション; NHW20 プレミアム ＊（Ｐ） |
89650-47121 |
US $663.94 |
||
| replacement | |||||
|
89650
|
89650
89650-47123 Computer Assy, Power Steering[03.2005 - 11.2005] NHW20 ツーリングセレクション; NHW20 プレミアム ＊（Ｐ） |
89650-47123 |
US $663.94 |
||
|
89650
|
89650
89650-47122 Computer Assy, Power Steering[11.2005 - 03.2009] NHW20 ツーリングセレクション |
89650-47122 |
US $663.94 |
||
| replacement | |||||
|
89650
|
89650
89650-47123 Computer Assy, Power Steering[11.2005 - 03.2009] NHW20 ツーリングセレクション |
89650-47123 |
US $663.94 |
||
|
89650
|
89650
89650-47130 Computer Assy, Power Steering[08.2003 - 02.2005] NHW20 ＥＭＶ（ナビゲーション付）−有り |
89650-47130 |
US $921.65 |
||
| replacement | |||||
|
89650
|
89650
89650-47113 Computer Assy, Power Steering[08.2003 - 02.2005] NHW20 ＥＭＶ（ナビゲーション付）−有り |
89650-47113 |
US $690.20 |
||
|
89650
|
89650
89650-47131 Computer Assy, Power Steering[03.2005 - 11.2005] NHW20 ＥＭＶ（ナビゲーション付）−有り |
89650-47131 |
US $921.65 |
||
| replacement | |||||
|
89650
|
89650
89650-47113 Computer Assy, Power Steering[03.2005 - 11.2005] NHW20 ＥＭＶ（ナビゲーション付）−有り |
89650-47113 |
US $690.20 |
||
|
89650
|
89650
89650-47132 Computer Assy, Power Steering[11.2005 - 03.2009] NHW20 ＥＭＶ（ナビゲーション付）−有り |
89650-47132 |
US $921.65 |
||
| replacement | |||||
|
89650
|
89650
89650-47113 Computer Assy, Power Steering[11.2005 - 03.2009] NHW20 ＥＭＶ（ナビゲーション付）−有り |
89650-47113 |
US $690.20 |
||
|
89650
|
89650
89650-47140 Computer Assy, Power Steering[08.2003 - 02.2005] NHW20 ツーリングセレクション＆ＥＭＶ（ナビゲーション付）−有り |
89650-47140 |
US $921.65 |
||
| replacement | |||||
|
89650
|
89650
89650-47123 Computer Assy, Power Steering[08.2003 - 02.2005] NHW20 ツーリングセレクション＆ＥＭＶ（ナビゲーション付）−有り |
89650-47123 |
US $663.94 |
||
|
89650
|
89650
89650-47141 Computer Assy, Power Steering[03.2005 - 11.2005] NHW20 ツーリングセレクション＆ＥＭＶ（ナビゲーション付）−有り; NHW20 プレミアム ＊（Ｐ）＆ＥＭＶ（ナビゲーション付）−有り |
89650-47141 |
US $921.65 |
||
| replacement | |||||
|
89650
|
89650
89650-47123 Computer Assy, Power Steering[03.2005 - 11.2005] NHW20 ツーリングセレクション＆ＥＭＶ（ナビゲーション付）−有り; NHW20 プレミアム ＊（Ｐ）＆ＥＭＶ（ナビゲーション付）−有り |
89650-47123 |
US $663.94 |
||
|
89650
|
89650
89650-47142 Computer Assy, Power Steering[11.2005 - 03.2009] NHW20 ツーリングセレクション＆ＥＭＶ（ナビゲーション付）−有り; NHW20..G ツーリングレザーパッケージ＆ＥＭＶ（ナビゲーション付）−有り |
89650-47142 |
US $921.65 |
||
| replacement | |||||
|
89650
|
89650
89650-47123 Computer Assy, Power Steering[11.2005 - 03.2009] NHW20 ツーリングセレクション＆ＥＭＶ（ナビゲーション付）−有り; NHW20..G ツーリングレザーパッケージ＆ＥＭＶ（ナビゲーション付）−有り |
89650-47123 |
US $663.94 |
||
|
89960
|
89960
89960-47010 Computer Assy, Headlamp Leveling[08.2003 - 11.2005] NHW20 ディスチャージヘッドランプ |
89960-47010 |
US $432.43 |
||
|
89960
|
89960
89960-47030 Computer Assy, Headlamp Leveling[11.2005 - 04.2009] NHW20..S ヘッドランプ−ディスチャージ（２灯式） |
89960-47030 |
US $430.98 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.74 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
from US $1.60 |
||
|
9015960547
|
9015960547
90159-60547 New Genuine Part |
90159-60547 |
US $0.70 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
