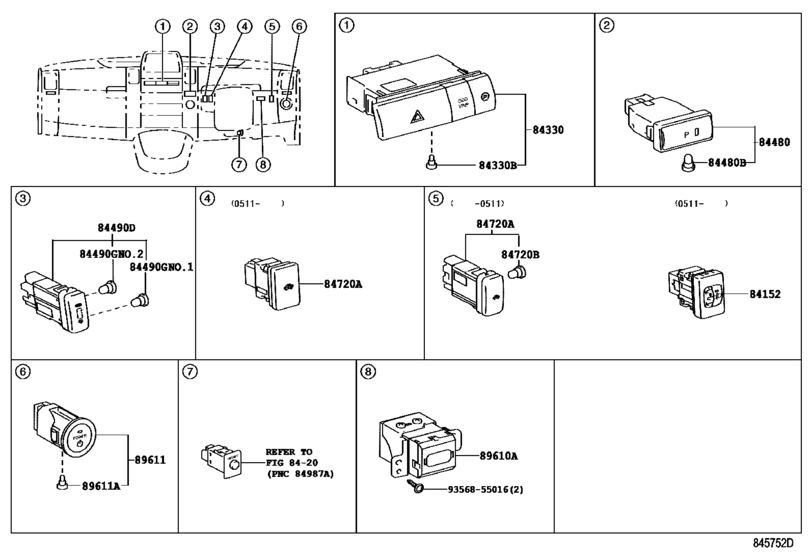

Switch & Relay & Computer ([08.2003 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (0308- )) Diagram Toyota PRIUS
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- NHW20
- grade
- S
- body
- HB
- ENGINE
- 1NZFXE
- Model
- PRIUS
- From
- 08.2003
- To
- 12.2011
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[11.2005 -] NHW20..S; NHW20..S ヘッドランプ−ディスチャージ（２灯式） |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[11.2005 -] NHW20..S; NHW20..S ヘッドランプ−ディスチャージ（２灯式） |
84152-52071 |
US $43.24 |
||
|
84330
|
84330
84330-47010 Switch Assy, Hazard Warning Signal[08.2003 - 11.2005] NHW20 |
84330-47010 |
US $72.80 |
||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[08.2003 - 11.2005] NHW20 １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.96 |
||
|
84480
|
84480
84480-47010
Switch Assy, Main
[08.2003 - 11.2005] NHW20 |
84480-47010 |
— | ||
| replacement | |||||
|
84480
|
84480
84480-47020 Switch Assy, Main[08.2003 - 11.2005] NHW20 |
84480-47020 |
US $55.74 |
||
|
84480
|
84480
84480-47020 Switch Assy, Main[11.2005 -] NHW20..S |
84480-47020 |
US $55.74 |
||
|
84480B
|
84480B
90010-01061 Bulb (For Headlamp Leveling Switch)[08.2003 - 11.2005] NHW20 １４Ｖ０．８４Ｗ，グリーン キャップ付き |
90010-01061 |
from US $3.76 |
||
|
84490D
|
84490D
84490-28020 Switch Assy, Ipa Main[11.2005 - 03.2009] NHW20 ＥＭＶ（ナビゲーション付）−有り |
84490-28020 |
US $49.65 |
||
|
84490D
|
84490D
84490-47010 Switch Assy, Ipa Main[08.2003 - 11.2005] NHW20 ＥＭＶ（ナビゲーション付）−有り |
84490-47010 |
US $64.65 |
||
|
84490G
|
84490G
90010-01080 Bulb, Dpr Swich Assy[08.2003 - 11.2005] NHW20 １４Ｖ ０．９１Ｗ，キャップ付き,ＥＭＶ（ナビゲーション付）−有り,ＮＯ．１ |
90010-01080 |
US $4.80 |
||
|
84490G
|
84490G
90010-01089 Bulb, Lane Monitoring Main Switch[08.2003 - 11.2005] NHW20 １４Ｖ ０．６３Ｗ，キャップ付き,ＥＭＶ（ナビゲーション付）−有り,ＮＯ．２ |
90010-01089 |
US $5.76 |
||
|
84720A
|
84720A
84720-47010
Switch Assy, Pattern Select, No.1
[08.2003 - 11.2005] NHW20 |
84720-47010 |
— | ||
|
84720A
|
84720A
84720-47020 Switch Assy, Pattern Select, No.1[11.2005 -] NHW20..S |
84720-47020 |
US $34.36 |
||
| replacement | |||||
|
84720A
|
84720A
84720-47021 Switch Assy, Pattern Select, No.1[11.2005 -] NHW20..S |
84720-47021 |
US $34.36 |
||
|
84720B
|
84720B
90010-01062 Bulb, Hdeadlamp Swivel Main Switch[08.2003 - 11.2005] NHW20 １４Ｖ０．６３Ｗ，グリーン キャップ付き |
90010-01062 |
from US $3.86 |
||
|
89610A
|
89610A
89610-47010 Holder Assy, Electrical Key[08.2003 - 11.2005] NHW20 |
89610-47010 |
US $183.46 |
||
| replacement | |||||
|
89610A
|
89610A
89610-47011 Holder Assy, Electrical Key[08.2003 - 11.2005] NHW20 |
89610-47011 |
US $183.46 |
||
|
89611
|
89611
89611-47010 Switch, Push Start[08.2003 - 11.2005] NHW20 |
89611-47010 |
US $79.92 |
||
|
89611A
|
89611A
90010-01039 Blub, Center Cluster Module Switch[08.2003 - 11.2005] NHW20 |
90010-01039 |
from US $3.43 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
