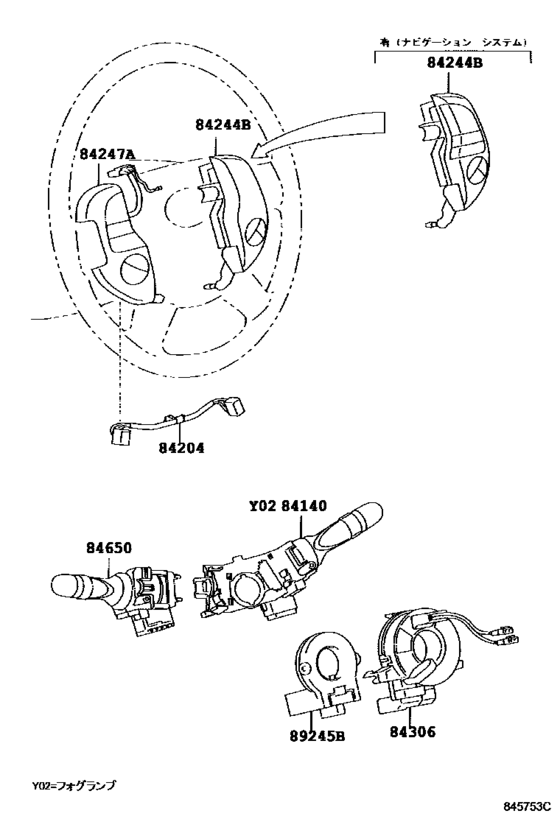

Switch & Relay & Computer ([08.2003 - ] ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ (0308- )) Diagram Toyota PRIUS
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- NHW20
- grade
- S
- body
- HB
- ENGINE
- 1NZFXE
- Model
- PRIUS
- From
- 08.2003
- To
- 12.2011
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-12570 Switch Assy, Headlamp Dimmer[08.2009 -] NHW20 |
84140-12570 |
US $133.20 |
||
|
84140
|
84140
84140-12580 Switch Assy, Headlamp Dimmer[08.2009 -] NHW20 寒冷地仕様 |
84140-12580 |
US $99.59 |
||
|
84140
|
84140
84140-30290 Switch Assy, Headlamp Dimmer[11.2005 - 03.2009] NHW20 寒冷地仕様 |
84140-30290 |
US $133.43 |
||
|
84140
|
84140
84140-30300 Switch Assy, Headlamp Dimmer[11.2005 - 03.2009] NHW20 |
84140-30300 |
US $164.16 |
||
|
84140
|
84140
84140-42070 Switch Assy, Headlamp Dimmer[08.2009 -] NHW20 フロントフォグランプ−有り |
84140-42070 |
US $103.60 |
||
|
84140
|
84140
84140-42080 Switch Assy, Headlamp Dimmer[08.2009 -] NHW20 寒冷地仕様＆フロントフォグランプ−有り |
84140-42080 |
US $103.60 |
||
|
84140
|
84140
84140-47020 Switch Assy, Headlamp Dimmer[08.2003 - 11.2005] NHW20 |
84140-47020 |
US $154.34 |
||
|
84140
|
84140
84140-47021 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [06.2009 - 08.2009] NHW20 |
84140-47021 |
US $136.86 |
||
|
84140
|
84140
84140-47030 Switch Assy, Headlamp Dimmer[08.2003 - 11.2005] NHW20 寒冷地仕様 |
84140-47030 |
US $173.26 |
||
|
84140
|
84140
84140-48030 Switch Assy, Headlamp Dimmer[08.2003 - 11.2005] NHW20 フロントフォグランプ−有り |
84140-48030 |
US $173.26 |
||
|
84140
|
84140
84140-48060 Switch Assy, Headlamp Dimmer[08.2003 - 11.2005] NHW20 寒冷地仕様＆フロントフォグランプ−有り |
84140-48060 |
US $186.37 |
||
|
84140
|
84140
84140-53100 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [06.2009 - 08.2009] NHW20 寒冷地仕様 |
84140-53100 |
US $136.86 |
||
|
84204
|
84204
84204-47010 Cable Sub-Assy, Steering Pad Switch[08.2003 - 11.2005] NHW20 |
84204-47010 |
US $33.78 |
||
|
84244B
|
84244B
84244-47010 Switch, Steering Pad, Rh[08.2003 - 11.2005] NHW20 ＥＭＶ（ナビゲーション付）−有り |
84244-47010 |
US $117.48 |
||
|
84244B
|
84244B
84244-47020 Switch, Steering Pad, Rh[08.2003 - 11.2005] NHW20 |
84244-47020 |
US $80.08 |
||
|
84247A
|
84247A
84247-47010 Switch, Steering Pad, Lh[08.2003 - 11.2005] NHW20 |
84247-47010 |
US $100.46 |
||
|
84306
|
84306
84306-48030
Cable Sub-Assy, Spiral
[08.2003 - 11.2005] NHW20 |
84306-48030 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[08.2003 - 11.2005] NHW20 |
84306-48031 |
from US $154.19 |
||
|
84650
|
84650
84652-42130
Switch Assy, Windshield Wiper
[11.2005 -] NHW20 |
84652-42130 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-42132 Switch Assy, Windshield Wiper[11.2005 -] NHW20 |
84652-42132 |
US $118.40 |
||
|
84650
|
84650
84652-47020 Switch Assy, Windshield Wiper[08.2003 - 11.2005] NHW20 |
84652-47020 |
US $133.95 |
||
| replacement | |||||
|
84650
|
84650
84652-52261 Switch Assy, Windshield Wiper[08.2003 - 11.2005] NHW20 |
84652-52261 |
US $87.32 |
||
|
84650
|
84650
84652-48010 Switch Assy, Windshield Wiper[08.2003 - 11.2005] NHW20 有り（間欠リヤワイパー） |
84652-48010 |
US $157.25 |
||
| replacement | |||||
|
84650
|
84650
84652-42132 Switch Assy, Windshield Wiper[08.2003 - 11.2005] NHW20 有り（間欠リヤワイパー） |
84652-42132 |
US $118.40 |
||
|
84650
|
84650
84652-52260
Switch Assy, Windshield Wiper
[11.2005 - 03.2009] NHW20..S ビジネスパッケージ |
84652-52260 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-52261 Switch Assy, Windshield Wiper[11.2005 - 03.2009] NHW20..S ビジネスパッケージ |
84652-52261 |
US $87.32 |
||
|
89245B
|
89245B
89245-48020 Sensor, Steering[08.2003 - 11.2005] NHW20..G; NHW20..S ＥＭＶ（ナビゲーション付）−有り; NHW20..S ディスチャージヘッドランプ＆ＥＭＶ（ナビゲーション付）−有り |
89245-48020 |
US $260.62 |
||
| replacement | |||||
|
89245B
|
89245B
89245-30080 Sensor, Steering[08.2003 - 11.2005] NHW20..G; NHW20..S ＥＭＶ（ナビゲーション付）−有り; NHW20..S ディスチャージヘッドランプ＆ＥＭＶ（ナビゲーション付）−有り |
89245-30080 |
from US $217.85 |
||
