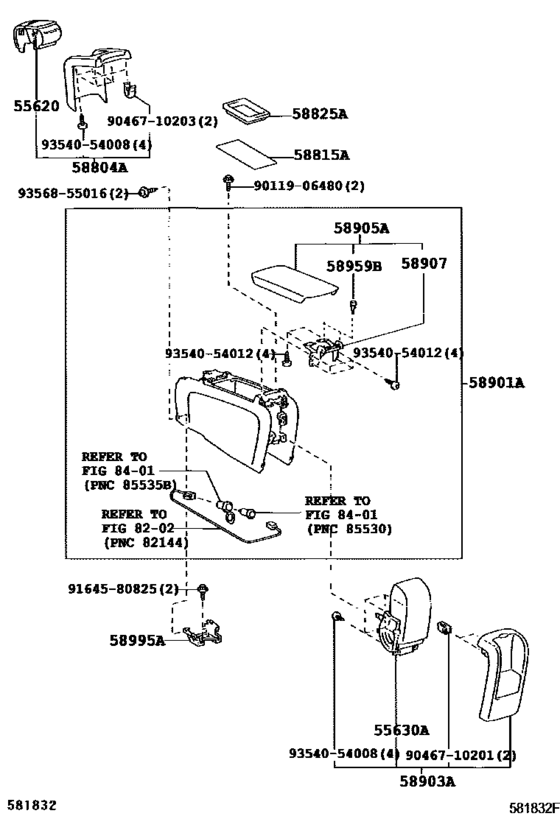

Console Box & Bracket ([08.2003 - ] (0308- )) Diagram Toyota PRIUS
- Year
- 2003 - 2009
- Sales region
- U.S.A.
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 08.2003
- To
- 03.2009
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55620
|
55620
55620-47010 Holder Assy, Instrument Panel Cup[08.2003 - 11.2005] NHW20 |
55620-47010 |
US $116.48 |
||
|
55630A
|
55630A
55630-47020-A0 Holder, Rear Console Box, Cup[08.2003 - 11.2005] NHW20 IVORY,TRIM0# |
55630-47020-A0 |
US $135.41 |
||
| replacement | |||||
|
55630A
|
55630A
55630-47021-A0 Holder, Rear Console Box, Cup[08.2003 - 11.2005] NHW20 IVORY,TRIM0# |
55630-47021-A0 |
US $135.41 |
||
|
55630A
|
55630A
55630-47020-B0 Holder, Rear Console Box, Cup[08.2003 - 11.2005] NHW20 MD.GRAY,TRIM1# |
55630-47020-B0 |
US $133.95 |
||
| replacement | |||||
|
55630A
|
55630A
55630-47021-B0 Holder, Rear Console Box, Cup[08.2003 - 11.2005] NHW20 MD.GRAY,TRIM1# |
55630-47021-B0 |
US $110.66 |
||
|
55630A
|
55630A
55630-47020-E0 Holder, Rear Console Box, Cup[11.2005 - 01.2008] NHW20 GREGE,TRIM4# |
55630-47020-E0 |
US $133.95 |
||
| replacement | |||||
|
55630A
|
55630A
55630-47021-E0 Holder, Rear Console Box, Cup[11.2005 - 01.2008] NHW20 GREGE,TRIM4# |
55630-47021-E0 |
US $133.95 |
||
|
55630A
|
55630A
55630-47021-B0 Holder, Rear Console Box, Cup[02.2008 - 03.2009] NHW20 MD.GRAY,TRIM1# |
55630-47021-B0 |
US $110.66 |
||
|
55630A
|
55630A
55630-47021-E0 Holder, Rear Console Box, Cup[02.2008 - 03.2009] NHW20 GREGE,TRIM4# |
55630-47021-E0 |
US $133.95 |
||
|
58804A
|
58804A
58804-47010 Panel Sub-Assy, Console, Upper[08.2003 - 11.2005] NHW20 |
58804-47010 |
US $165.98 |
||
|
58815A
|
58815A
58815-47020 Carpet, Console Box[08.2003 - 11.2005] NHW20 |
58815-47020 |
US $4.95 |
||
|
58825A
|
58825A
58825-47010 Pocket, Console Box[08.2003 - 11.2005] NHW20 |
58825-47010 |
US $30.43 |
||
|
58901A
|
58901A
58901-47030-A0 Box Sub-Assy, Console, Rear[08.2003 - 03.2005] NHW20 IVORY,TRIM0# |
58901-47030-A0 |
US $559.10 |
||
| replacement | |||||
|
58901A
|
58901A
58901-47030-A1 Box Sub-Assy, Console, Rear[08.2003 - 03.2005] NHW20 IVORY,TRIM0# |
58901-47030-A1 |
US $559.10 |
||
|
58901A
|
58901A
58901-47030-A1 Box Sub-Assy, Console, Rear[03.2005 - 11.2005] NHW20 IVORY,TRIM08 |
58901-47030-A1 |
US $559.10 |
||
|
58901A
|
58901A
58901-47030-B0 Box Sub-Assy, Console, Rear[08.2003 - 03.2005] NHW20 MD.GRAY,TRIM1# |
58901-47030-B0 |
US $559.10 |
||
| replacement | |||||
|
58901A
|
58901A
58901-47030-B1 Box Sub-Assy, Console, Rear[08.2003 - 03.2005] NHW20 MD.GRAY,TRIM1# |
58901-47030-B1 |
US $465.92 |
||
|
58901A
|
58901A
58901-47030-B1 Box Sub-Assy, Console, Rear[11.2005 - 03.2009] NHW20 MD.GRAY,TRIM1# |
58901-47030-B1 |
US $465.92 |
||
|
58901A
|
58901A
58901-47030-B4 Box Sub-Assy, Console, Rear[03.2005 - 11.2005] NHW20 MD.GRAY,TRIM18 |
58901-47030-B4 |
US $559.10 |
||
| replacement | |||||
|
58901A
|
58901A
58901-47030-B1 Box Sub-Assy, Console, Rear[03.2005 - 11.2005] NHW20 MD.GRAY,TRIM18 |
58901-47030-B1 |
US $465.92 |
||
|
58901A
|
58901A
58901-47030-E0 Box Sub-Assy, Console, Rear[11.2005 - 03.2009] NHW20 GREGE,TRIM4# |
58901-47030-E0 |
US $559.10 |
||
|
58901A
|
58901A
58901-47040-B0
Box Sub-Assy, Console, Rear
[11.2005 - 03.2009] NHW20..USA AUDIO-05AM/FM+CD 6 SPEAKER,MD.GRAY,TRIM1#; NHW20 AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,MD.GRAY,TRIM1# |
58901-47040-B0 |
— | ||
|
58901A
|
58901A
58901-47040-E0
Box Sub-Assy, Console, Rear
[11.2005 - 03.2009] NHW20..USA AUDIO-05AM/FM+CD 6 SPEAKER,GREGE,TRIM4#; NHW20 AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,GREGE,TRIM4# |
58901-47040-E0 |
— | ||
|
58901A
|
58901A
58901-47050-B1 Box Sub-Assy, Console, Rear[11.2005 - 03.2009] NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
58901-47050-B1 |
US $669.76 |
||
|
58901A
|
58901A
58901-47050-E1 Box Sub-Assy, Console, Rear[11.2005 - 03.2009] NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
58901-47050-E1 |
US $669.76 |
||
|
58901A
|
58901A
58901-47060-B1
Box Sub-Assy, Console, Rear
[11.2005 - 03.2009] NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-05AM/FM+CD 6 SPEAKER,MD.GRAY,TRIM1#; NHW20 SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,MD.GRAY ,TRIM1# |
58901-47060-B1 |
— | ||
|
58901A
|
58901A
58901-47060-E1
Box Sub-Assy, Console, Rear
[11.2005 - 03.2009] NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-05AM/FM+CD 6 SPEAKER,GREGE,TRIM4#; NHW20 SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,GREGE,T RIM4# |
58901-47060-E1 |
— | ||
|
58903A
|
58903A
58903-47010-A0 Panel Sub-Assy, Console Rear End[08.2003 - 11.2005] NHW20 IVORY,TRIM0# |
58903-47010-A0 |
US $218.40 |
||
| replacement | |||||
|
58903A
|
58903A
58903-47011-A0 Panel Sub-Assy, Console Rear End[08.2003 - 11.2005] NHW20 IVORY,TRIM0# |
58903-47011-A0 |
US $218.40 |
||
|
58903A
|
58903A
58903-47010-B0 Panel Sub-Assy, Console Rear End[08.2003 - 11.2005] NHW20 MD.GRAY,TRIM1# |
58903-47010-B0 |
US $216.94 |
||
| replacement | |||||
|
58903A
|
58903A
58903-47011-B0 Panel Sub-Assy, Console Rear End[08.2003 - 11.2005] NHW20 MD.GRAY,TRIM1# |
58903-47011-B0 |
from US $180.54 |
||
|
58903A
|
58903A
58903-47010-E0 Panel Sub-Assy, Console Rear End[11.2005 - 01.2008] NHW20 GREGE,TRIM4# |
58903-47010-E0 |
US $216.94 |
||
| replacement | |||||
|
58903A
|
58903A
58903-47011-E0 Panel Sub-Assy, Console Rear End[11.2005 - 01.2008] NHW20 GREGE,TRIM4# |
58903-47011-E0 |
US $216.94 |
||
|
58903A
|
58903A
58903-47011-B0 Panel Sub-Assy, Console Rear End[02.2008 - 03.2009] NHW20 MD.GRAY,TRIM1# |
58903-47011-B0 |
from US $180.54 |
||
|
58903A
|
58903A
58903-47011-E0 Panel Sub-Assy, Console Rear End[02.2008 - 03.2009] NHW20 GREGE,TRIM4# |
58903-47011-E0 |
US $216.94 |
||
|
58905A
|
58905A
58905-47030-A0 Door Sub-Assy, Console Compartment, Rear[08.2003 - 03.2005] NHW20 IVORY,TRIM0# |
58905-47030-A0 |
US $294.11 |
||
| replacement | |||||
|
58905A
|
58905A
58905-47030-A1 Door Sub-Assy, Console Compartment, Rear[08.2003 - 03.2005] NHW20 IVORY,TRIM0# |
58905-47030-A1 |
US $294.11 |
||
|
58905A
|
58905A
58905-47030-A1 Door Sub-Assy, Console Compartment, Rear[03.2005 - 11.2005] NHW20 IVORY,TRIM08 |
58905-47030-A1 |
US $294.11 |
||
|
58905A
|
58905A
58905-47030-B0 Door Sub-Assy, Console Compartment, Rear[08.2003 - 03.2005] NHW20 MD.GRAY,TRIM1# |
58905-47030-B0 |
US $294.11 |
||
| replacement | |||||
|
58905A
|
58905A
58905-47030-B1 Door Sub-Assy, Console Compartment, Rear[08.2003 - 03.2005] NHW20 MD.GRAY,TRIM1# |
58905-47030-B1 |
from US $244.61 |
||
|
58905A
|
58905A
58905-47030-B1 Door Sub-Assy, Console Compartment, Rear[11.2005 - 03.2009] NHW20 MD.GRAY,TRIM1# |
58905-47030-B1 |
from US $244.61 |
||
|
58905A
|
58905A
58905-47030-B4 Door Sub-Assy, Console Compartment, Rear[03.2005 - 11.2005] NHW20 MD.GRAY,TRIM18 |
58905-47030-B4 |
US $294.11 |
||
| replacement | |||||
|
58905A
|
58905A
58905-47030-B1 Door Sub-Assy, Console Compartment, Rear[03.2005 - 11.2005] NHW20 MD.GRAY,TRIM18 |
58905-47030-B1 |
from US $244.61 |
||
|
58905A
|
58905A
58905-47030-E0 Door Sub-Assy, Console Compartment, Rear[11.2005 - 03.2009] NHW20 GREGE,TRIM4# |
58905-47030-E0 |
US $294.11 |
||
|
58905A
|
58905A
58905-47040-B1 Door Sub-Assy, Console Compartment, Rear[11.2005 - 03.2009] NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#; NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-05AM/FM+CD 6 SPEAKER,MEDIUM GRAY,TRIM1#; NHW20 SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKE |
58905-47040-B1 |
US $419.33 |
||
|
58905A
|
58905A
58905-47040-E1 Door Sub-Assy, Console Compartment, Rear[11.2005 - 03.2009] NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#; NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-05AM/FM+CD 6 SPEAKER,GREGE,TRIM4#; NHW20 SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,GREGE,T RI |
58905-47040-E1 |
US $419.33 |
||
|
58907
|
58907
58907-47010 Hinge Sub-Assy, Console Compartment Door[08.2003 - 11.2005] NHW20 |
58907-47010 |
US $38 |
||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[08.2003 - 11.2005] NHW20 |
58959-60060 |
from US $1.35 |
||
|
58995A
|
58995A
58995-47010 Bracket, Console Box Mounting, No.1[08.2003 - 11.2005] NHW20 |
58995-47010 |
US $13.10 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.86 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.96 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9164580825
|
9164580825
91645-80825 BOLT WWASHER |
91645-80825 |
US $1.60 |
||
|
9354054008
|
9354054008
93540-54008 New Genuine Part |
93540-54008 |
US $0.44 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
