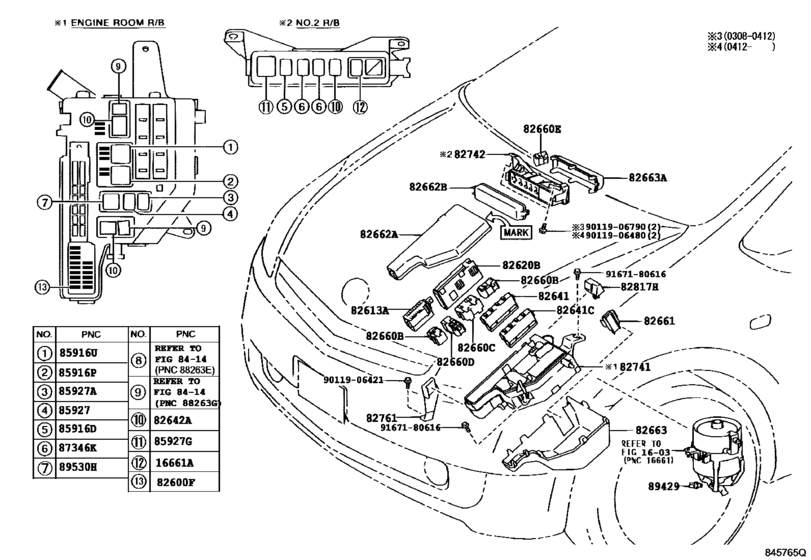

Switch & Relay & Computer ([08.2003 - ] ENGINE ROOM (0308- )) Diagram Toyota PRIUS
- Year
- 2003 - 2009
- Sales region
- U.S.A.
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- USA
- Model
- PRIUS
- From
- 08.2003
- To
- 03.2009
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16661A
|
16661A
90987-02027 Relay[08.2003 - 11.2005] 1NZFXE..NHW20 |
90987-02027 |
from US $44.54 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[08.2003 - 11.2005] NHW20 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2003 - 11.2005] NHW20 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2003 - 11.2005] NHW20 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2003 - 08.2004] NHW20 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2003 - 11.2005] NHW20 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82613A
|
82613A
82613-47010 Block, Fuse Base[08.2003 - 11.2005] NHW20 |
82613-47010 |
US $37.42 |
||
|
82620B
|
82620B
82620-47050 Block Assy, Fusible Link[08.2003 - 11.2005] NHW20 |
82620-47050 |
from US $61.02 |
||
|
82641
|
82641
82641-47010 Relay, Integration No.1[08.2003 - 11.2005] NHW20 |
82641-47010 |
US $128.76 |
||
|
82641C
|
82641C
82641-47020 Relay, Integration No.1[08.2003 - 11.2005] NHW20 |
82641-47020 |
from US $79.92 |
||
|
82642A
|
82642A
90987-02027 Relay[08.2003 - 11.2005] NHW20..CND; NHW20..USA W(DAYTIME RUNNING LIGHT SYSTEM) |
90987-02027 |
from US $44.54 |
||
|
82660B
|
82660B
82660-47010 Block Assy, Relay[08.2003 - 11.2005] NHW20 |
82660-47010 |
US $15.29 |
||
|
82660C
|
82660C
82660-47020 Block Assy, Relay[08.2003 - 11.2005] NHW20 |
82660-47020 |
US $19.66 |
||
|
82660D
|
82660D
82660-47030 Block Assy, Relay[08.2003 - 11.2005] NHW20 |
82660-47030 |
US $15.29 |
||
|
82660E
|
82660E
82660-47010 Block Assy, Relay[08.2003 - 11.2005] NHW20 |
82660-47010 |
US $15.29 |
||
|
82661
|
82661
82661-47010 Cover, Relay Block, No.1[08.2003 - 11.2005] NHW20 |
82661-47010 |
US $18.78 |
||
|
82662A
|
82662A
82662-47040 Cover, Relay Block, Upper, No.1[08.2003 - 05.2004] NHW20 |
82662-47040 |
US $46.01 |
||
|
82662A
|
82662A
82662-47041 Cover, Relay Block, Upper, No.1[05.2004 - 11.2005] NHW20 |
82662-47041 |
from US $38.15 |
||
|
82662A
|
82662A
82662-47050 Cover, Relay Block, Upper, No.1[08.2003 - 05.2004] NHW20..USA W(VSC) |
82662-47050 |
US $46.01 |
||
|
82662A
|
82662A
82662-47051 Cover, Relay Block, Upper, No.1[05.2004 - 11.2005] NHW20..USA W(VSC) |
82662-47051 |
US $45.86 |
||
|
82662B
|
82662B
82662-47060 Cover, Relay Block, Upper, No.2[08.2003 - 11.2005] NHW20 |
82662-47060 |
US $13.10 |
||
|
82663
|
82663
82663-47040 Cover, Relay Block, Lower[08.2003 - 11.2005] NHW20 |
82663-47040 |
US $38.15 |
||
|
82663A
|
82663A
82663-47050 Cover, Relay Block, Lower, No.2[08.2003 - 11.2005] NHW20 |
82663-47050 |
US $14.68 |
||
|
82741
|
82741
82741-47010 Block, Engine Room Relay[08.2003 - 11.2005] NHW20 |
82741-47010 |
US $72.80 |
||
|
82742
|
82742
82742-47020 Block, Engine Room Relay, No.2[08.2003 - 11.2005] NHW20 |
82742-47020 |
US $44.84 |
||
|
82761
|
82761
82761-47010 Bracket, Relay Block, No.1[08.2003 - 11.2005] NHW20 |
82761-47010 |
US $18.35 |
||
|
82817H
|
82817H
82817-47390 Protector, Wiring Harness[08.2003 - 11.2005] NHW20 |
82817-47390 |
US $3.93 |
||
|
85916D
|
85916D
90987-02027 Relay[08.2003 - 11.2005] NHW20 W(VSC) |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02025 Relay[08.2003 - 11.2005] NHW20 |
90987-02025 |
from US $44.54 |
||
|
85916U
|
85916U
90987-04010 Relay Assy (For Heater Blower Motor)[08.2003 - 11.2005] NHW20 |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02027 Relay[08.2003 - 11.2005] NHW20 |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[08.2003 - 11.2005] NHW20 |
90987-04004 |
from US $42.71 |
||
|
85927G
|
85927G
90987-02025 Relay[08.2003 - 11.2005] NHW20 |
90987-02025 |
from US $44.54 |
||
|
87346K
|
87346K
90987-02027 Relay[08.2003 - 11.2005] NHW20 |
90987-02027 |
from US $44.54 |
||
|
89429
|
89429
89429-47010 Sensor, Water TemperatureWATER TEMPERATURE [08.2003 - 11.2005] NHW20 |
89429-47010 |
US $36.63 |
||
|
89530H
|
89530H
90987-02025 Relay[08.2003 - 11.2005] NHW20 |
90987-02025 |
from US $44.54 |
||
|
9011906421
|
9011906421
90119-06421 New Genuine Part |
90119-06421 |
US $2.72 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.86 |
||
|
9011906790
|
9011906790
90119-06790 New Genuine Part |
90119-06790 |
US $0.44 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
