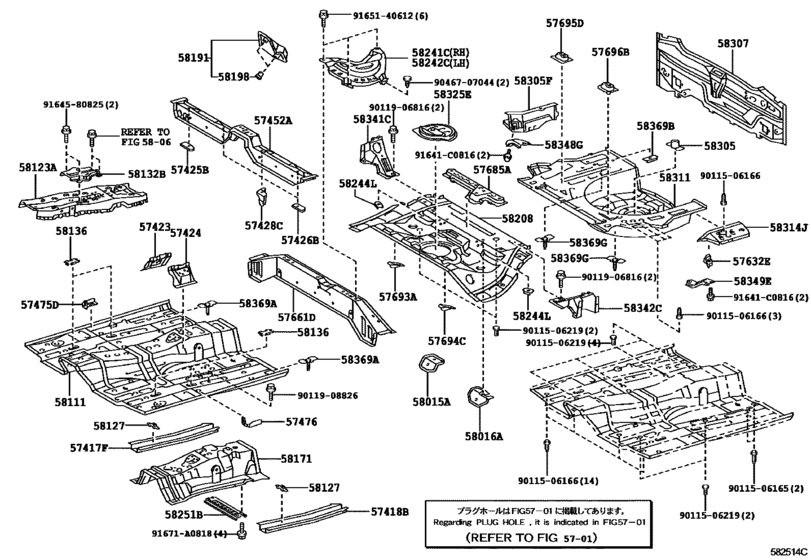

Floor Pan & Lower Back Panel ([11.2005 - ] (0511- )) Diagram Toyota PRIUS
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- CHI
- Model
- PRIUS
- From
- 11.2005
- To
- 04.2009
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57417F
|
57417F
57417-47020 Reinforcement, Front Floor Under, Rh[11.2005 -] NHW20 |
57417-47020 |
US $74.26 |
||
|
57418B
|
57418B
57417-47020 Reinforcement, Front Floor Under, Rh[11.2005 -] NHW20 |
57417-47020 |
US $74.26 |
||
|
57423
|
57423
57423-47010 Bracket, Front Floor Reinforcement, Rh[11.2005 -] NHW20 |
57423-47010 |
US $14.71 |
||
|
57424
|
57424
57424-47010 Bracket, Front Floor Reinforcement, Lh[11.2005 -] NHW20 |
57424-47010 |
US $20.82 |
||
|
57425B
|
57425B
57425-47010 Reinforcement, Front Floor, No.2 Rh[11.2005 -] NHW20 |
57425-47010 |
US $6.12 |
||
|
57426B
|
57426B
57426-47010 Reinforcement, Front Floor, No.2 Lh[11.2005 -] NHW20 |
57426-47010 |
US $5.53 |
||
|
57428C
|
57428C
57428-47010 Reinforcement, Front Floor, No.3 Lh[11.2005 -] NHW20 |
57428-47010 |
US $6.41 |
||
|
57452A
|
57452A
57451-47030 Member, Front Floor Cross, No.2[11.2005 -] NHW20 |
57451-47030 |
US $119.39 |
||
|
57475D
|
57475D
57475-20070 Plate, Front Floor Crossmember[11.2005 -] NHW20 |
57475-20070 |
US $4.80 |
||
|
57476
|
57476
57476-20070 Plate, Front Floor Crossmember, Lh[11.2005 -] NHW20 |
57476-20070 |
US $4.80 |
||
|
57632E
|
57632E
57632-47020 Extension, Rear Floor Side Member, Fr Lh[11.2005 -] NHW20 |
57632-47020 |
US $9.03 |
||
|
57661D
|
57661D
57661-47010 Member, Rear Floor Cross, Front[11.2005 -] NHW20 |
57661-47010 |
US $180.54 |
||
|
57685A
|
57685A
58205-47010 Bracket, Rear Floor Mounting, No.1 Rh[11.2005 -] NHW20 |
58205-47010 |
US $50.09 |
||
|
57693A
|
57693A
57693-47010 Reinforcement, Fuel Tank Mounting Bracket, Rh[11.2005 -] NHW20 |
57693-47010 |
US $6.84 |
||
|
57694C
|
57694C
57693-47010 Reinforcement, Fuel Tank Mounting Bracket, Rh[11.2005 -] NHW20 |
57693-47010 |
US $6.84 |
||
|
57695D
|
57695D
57695-47020 Bracket, Rear Floor Mounting, No.2 Rh[11.2005 -] NHW20 |
57695-47020 |
US $12.67 |
||
|
57696B
|
57696B
57696-47020 Bracket, Rear Floor Mounting, No.2 Lh[11.2005 -] NHW20 |
57696-47020 |
US $14.71 |
||
|
58015A
|
58015A
58015-47030 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[11.2005 -] NHW20 |
58015-47030 |
US $16.60 |
||
|
58016A
|
58016A
58016-47020 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[11.2005 -] NHW20 |
58016-47020 |
US $17.33 |
||
|
58111
|
58111
58111-47902 Pan, Front Floor[11.2005 -] NHW20 |
58111-47902 |
US $509.60 |
||
|
58123A
|
58123A
58123-47010 Support, Shift & Select Lever[11.2005 -] NHW20 |
58123-47010 |
US $78.62 |
||
|
58127
|
58127
58127-47010 Patch, Front Floor Panel[11.2005 -] NHW20 |
58127-47010 |
US $3.93 |
||
|
58132B
|
58132B
58132-47010 Reinforcement, Front Floor Side, No.1[11.2005 -] NHW20 |
58132-47010 |
US $23.44 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[11.2005 -] NHW20 |
58136-33010 |
US $3.06 |
||
|
58171
|
58171
58107-47020 Reinforcement, Parking Brake BasePARKING BRAKE BASE [11.2005 -] NHW20 |
58107-47020 |
US $266.45 |
||
|
58191
|
58191
58192-13010 Footrest, Front FloorFRONT FLOOR [11.2005 -] NHW20 |
58192-13010 |
US $39.17 |
||
|
58198
|
58198
58198-13020 Clip, Footrest[11.2005 -] NHW20 |
58198-13020 |
US $4.22 |
||
|
58208
|
58208
58211-47903 Pan, Center FloorCENTER FLOOR [11.2005 -] NHW20 |
58211-47903 |
US $314.50 |
||
|
58241C
|
58241C
58241-47020 Panel, Floor Side, Rh[11.2005 -] NHW20 |
58241-47020 |
US $43.53 |
||
|
58242C
|
58242C
58242-47030 Panel, Floor Side, Lh[11.2005 -] NHW20 |
58242-47030 |
US $43.68 |
||
|
58244L
|
58244L
58244-13030 Bracket, Rear Seat Cushion Mounting[11.2005 -] NHW20 |
58244-13030 |
US $2.91 |
||
|
58251B
|
58251B
58251-32010 Brace, Floor Panel, Front[11.2005 -] NHW20 |
58251-32010 |
US $18.92 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[11.2005 -] NHW20 |
58351-33010 |
US $6.56 |
||
|
58305F
|
58305F
58305-47021
Panel, Rear Floor Side, Rh
[11.2005 -] NHW20 |
58305-47021 |
— | ||
|
58307
|
58307
58307-47050 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [11.2005 - 04.2009] NHW20 |
58307-47050 |
US $292.66 |
||
|
58311
|
58311
58311-47901 Pan, Rear Floor[11.2005 -] NHW20 |
58311-47901 |
US $317.41 |
||
|
58314J
|
58314J
58314-47900 Panel, Rear Floor Side, Lh[11.2005 -] NHW20 |
58314-47900 |
US $26.94 |
||
|
58325E
|
58325E
58325-47030 Cover, Rear Floor Service Hole[11.2005 -] NHW20 |
58325-47030 |
US $23.59 |
||
|
58341C
|
58341C
58341-47040 Bracket, Rear Absorber Mounting, No.1 Rh[11.2005 -] NHW20 |
58341-47040 |
US $72.36 |
||
|
58342C
|
58342C
58342-47040 Bracket, Rear Absorber Mounting, No.1 Lh[11.2005 -] NHW20 |
58342-47040 |
US $72.36 |
||
|
58348G
|
58348G
58348-47010 Plate, Rear Floor Side, Rh[11.2005 -] NHW20 |
58348-47010 |
US $9.32 |
||
|
58349E
|
58349E
58349-47010 Plate, Rear Floor Side, Lh[11.2005 -] NHW20 |
58349-47010 |
US $12.67 |
||
|
58369A
|
58369A
58369-47010 Bracket, Fuel Tube, No.3[11.2005 -] NHW20 |
58369-47010 |
US $3.93 |
||
|
58369B
|
58369B
53213-12110 Support, Radiator, Upper Front[11.2005 -] NHW20 |
53213-12110 |
US $15.04 |
||
|
58369G
|
58369G
58369-47010 Bracket, Fuel Tube, No.3[11.2005 -] NHW20 |
58369-47010 |
US $3.93 |
||
|
91641C0816
|
91641C0816
91641-C0816 New Genuine Part |
91641-C0816 |
US $1.46 |
||
|
91671A0818
|
91671A0818
91671-A0818 New Genuine Part |
91671-A0818 |
US $0.96 |
||
|
9011506165
|
9011506165
90115-06165 New Genuine Part |
90115-06165 |
US $1.38 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011906816
|
9011906816
90119-06816 New Genuine Part |
90119-06816 |
US $1.46 |
||
|
9011908826
|
9011908826
90119-08826 BOLT |
90119-08826 |
US $1.31 |
||
|
9046707044
|
9046707044
90467-07044 Clip, Radiator Support To Frame |
90467-07044 |
US $2.24 |
||
|
9164580825
|
9164580825
91645-80825 BOLT WWASHER |
91645-80825 |
US $1.60 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
