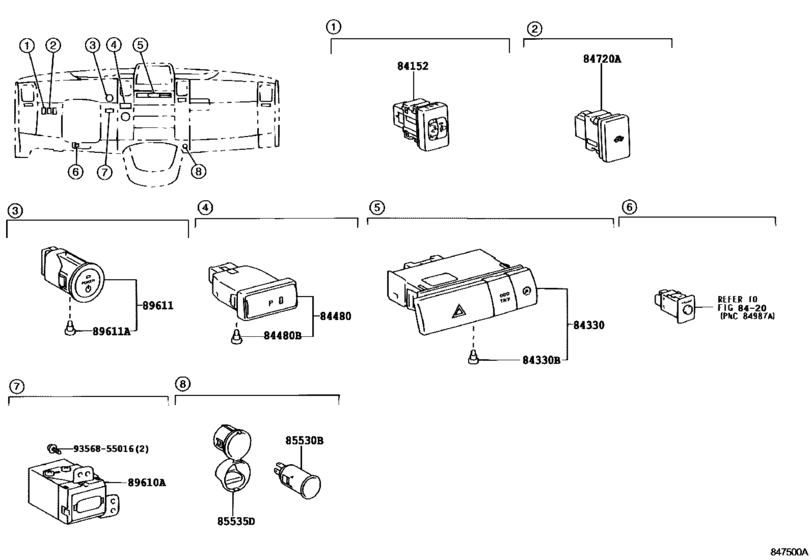

Switch & Relay & Computer ([11.2005 - ] INSTRUMENT PANEL (0511- )) Diagram Toyota PRIUS
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- CHI
- Model
- PRIUS
- From
- 11.2005
- To
- 04.2009
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[11.2005 -] NHW20 |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[11.2005 -] NHW20 |
84152-52071 |
US $43.24 |
||
|
84330
|
84330
84330-47010 Switch Assy, Hazard Warning Signal[11.2005 -] NHW20 |
84330-47010 |
US $72.80 |
||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[11.2005 -] NHW20 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84480
|
84480
84480-47020 Switch Assy, Main[11.2005 -] NHW20 |
84480-47020 |
US $55.74 |
||
|
84480B
|
84480B
90010-01061 Bulb (For Headlamp Leveling Switch)[11.2005 -] NHW20 14V0.84W,W(GREEN CAP) |
90010-01061 |
from US $3.61 |
||
|
84720A
|
84720A
84720-47020 Switch Assy, Pattern Select, No.1[11.2005 -] NHW20 |
84720-47020 |
US $34.36 |
||
| replacement | |||||
|
84720A
|
84720A
84720-47021 Switch Assy, Pattern Select, No.1[11.2005 -] NHW20 |
84720-47021 |
US $34.36 |
||
|
85530B
|
85530B
85530-33020 Socket Assy, Power Outlet, No.1[11.2005 -] NHW20 |
85530-33020 |
from US $15.50 |
||
| replacement | |||||
|
85530B
|
85530B
85530-06010 Socket Assy, Power Outlet, No.1[11.2005 -] NHW20 |
85530-06010 |
from US $26.06 |
||
|
85535D
|
85535D
85535-47020 Cover, Power Outlet Socket, No.1[02.2008 -] NHW20 |
85535-47020 |
US $13.60 |
||
|
85535D
|
85535D
85535-52010 Cover, Power Outlet Socket, No.1[11.2005 - 01.2008] NHW20 |
85535-52010 |
US $11.36 |
||
| replacement | |||||
|
85535D
|
85535D
85535-47020 Cover, Power Outlet Socket, No.1[11.2005 - 01.2008] NHW20 |
85535-47020 |
US $13.60 |
||
|
89610A
|
89610A
89610-47030
Holder Assy, Electrical Key
[11.2005 -] NHW20 |
89610-47030 |
— | ||
| replacement | |||||
|
89610A
|
89610A
89610-47032
Holder Assy, Electrical Key
[11.2005 -] NHW20 |
89610-47032 |
— | ||
|
89611
|
89611
89611-47010 Switch, Push Start[11.2005 -] NHW20 |
89611-47010 |
US $79.92 |
||
|
89611A
|
89611A
90010-01039 Blub, Center Cluster Module Switch[11.2005 -] NHW20 |
90010-01039 |
from US $3.30 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
