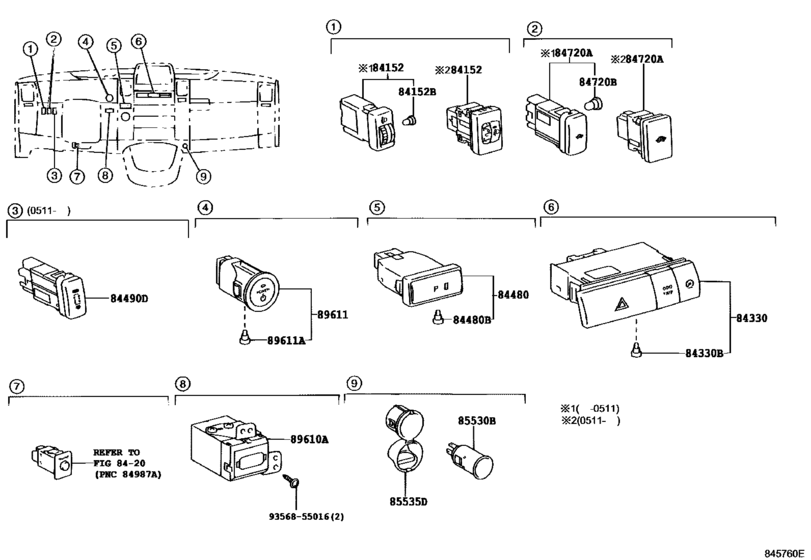

Switch & Relay & Computer ([08.2003 - ] INSTRUMENT PANEL (0308- )LHD) Diagram Toyota PRIUS
- Year
- 2003 - 2009
- Sales region
- Europe
- Frame
- NHW20
- ENGINE
- 1NZFXE
- DESTINATION
- EUR
- Model
- PRIUS
- From
- 08.2003
- To
- 03.2009
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-33030 Switch, Headlamp Leveling[08.2003 - 11.2005] NHW20..EUR |
84152-33030 |
from US $45.72 |
||
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[11.2005 - 03.2009] NHW20..EUR |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[11.2005 - 03.2009] NHW20..EUR |
84152-52071 |
US $43.24 |
||
|
84152B
|
84152B
90010-08107 Bulb (For Headlamp Leveling Switch)[08.2003 - 11.2005] NHW20..EUR 14V 40MA,W(GREEN CAP) |
90010-08107 |
from US $2.79 |
||
|
84330
|
84330
84330-47010 Switch Assy, Hazard Warning Signal[08.2003 - 11.2005] NHW20..ARL;NHW20..LHD; NHW20..RHD..EUR HONG KONG SPEC; NHW20..RHD..EUR SINGAPORE SPEC |
84330-47010 |
US $72.80 |
||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[08.2003 - 11.2005] NHW20 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84480
|
84480
84480-47010
Switch Assy, Main
[08.2003 - 11.2005] NHW20 |
84480-47010 |
— | ||
| replacement | |||||
|
84480
|
84480
84480-47020 Switch Assy, Main[08.2003 - 11.2005] NHW20 |
84480-47020 |
US $55.74 |
||
|
84480
|
84480
84480-47020 Switch Assy, Main[11.2005 - 03.2009] NHW20 |
84480-47020 |
US $55.74 |
||
|
84480B
|
84480B
90010-01061 Bulb (For Headlamp Leveling Switch)[08.2003 - 11.2005] NHW20 14V0.84W,W(GREEN CAP) |
90010-01061 |
from US $3.76 |
||
|
84490D
|
84490D
84490-28020 Switch Assy, Ipa Main[11.2005 - 03.2009] NHW20..EUR BACK GUIDE MONITOR-WITH(WITH/INTELLIGENT PARKING ASSIST) |
84490-28020 |
US $49.65 |
||
|
84720A
|
84720A
84720-47010
Switch Assy, Pattern Select, No.1
[08.2003 - 11.2005] NHW20 |
84720-47010 |
— | ||
|
84720A
|
84720A
84720-47020 Switch Assy, Pattern Select, No.1[11.2005 - 03.2009] NHW20 |
84720-47020 |
US $34.36 |
||
| replacement | |||||
|
84720A
|
84720A
84720-47021 Switch Assy, Pattern Select, No.1[11.2005 - 03.2009] NHW20 |
84720-47021 |
US $34.36 |
||
|
84720B
|
84720B
90010-01062 Bulb, Hdeadlamp Swivel Main Switch[08.2003 - 11.2005] NHW20 14V0.63W,W(GREEN CAP) |
90010-01062 |
from US $3.86 |
||
|
85530B
|
85530B
85530-33020 Socket Assy, Power Outlet, No.1[08.2003 - 11.2005] NHW20..LHD |
85530-33020 |
from US $16.05 |
||
| replacement | |||||
|
85530B
|
85530B
85530-06010 Socket Assy, Power Outlet, No.1[08.2003 - 11.2005] NHW20..LHD |
85530-06010 |
from US $26.06 |
||
|
85535D
|
85535D
85535-47020 Cover, Power Outlet Socket, No.1[12.2007 - 03.2009] NHW20..LHD |
85535-47020 |
US $13.60 |
||
|
85535D
|
85535D
85535-52010 Cover, Power Outlet Socket, No.1[08.2003 - 11.2005] NHW20..LHD |
85535-52010 |
US $11.36 |
||
| replacement | |||||
|
85535D
|
85535D
85535-47020 Cover, Power Outlet Socket, No.1[08.2003 - 11.2005] NHW20..LHD |
85535-47020 |
US $13.60 |
||
|
89610A
|
89610A
89610-47020 Holder Assy, Electrical KeyELECTRICAL KEY [08.2003 - 11.2005] NHW20..LHD |
89610-47020 |
US $221.31 |
||
| replacement | |||||
|
89610A
|
89610A
89610-47032
Holder Assy, Electrical Key
[08.2003 - 11.2005] NHW20..LHD |
89610-47032 |
— | ||
|
89610A
|
89610A
89610-47030
Holder Assy, Electrical Key
[08.2005 - 11.2005] NHW20..LHD CHINA SPEC&W(SMART ENTRY) |
89610-47030 |
— | ||
| replacement | |||||
|
89610A
|
89610A
89610-47032
Holder Assy, Electrical Key
[08.2005 - 11.2005] NHW20..LHD CHINA SPEC&W(SMART ENTRY) |
89610-47032 |
— | ||
|
89611
|
89611
89611-47010 Switch, Push Start[08.2003 - 11.2005] NHW20 |
89611-47010 |
US $79.92 |
||
|
89611A
|
89611A
90010-01039 Blub, Center Cluster Module Switch[08.2003 - 11.2005] NHW20 |
90010-01039 |
from US $3.43 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
