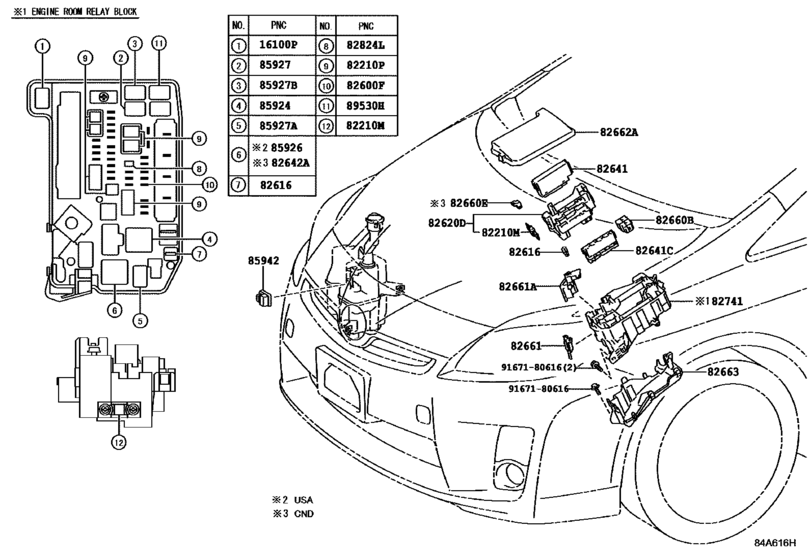

Switch & Relay & Computer ([04.2009 - 12.2011] ENGINE ROOM (0904-1112)) Diagram Toyota PRIUS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- ZVW30
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS
- From
- 04.2009
- To
- 11.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100P
|
16100P
90987-02027 Relay[04.2009 - 12.2011] 2ZRFXE..ZVW30 |
90987-02027 |
from US $31.43 |
||
|
82210M
|
82210M
90982-08297 Fusible Link[04.2009 - 12.2011] ZVW30..USA 125A |
90982-08297 |
US $8.32 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[04.2009 - 12.2011] ZVW30..G,S 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08300 Fusible Link[04.2009 - 12.2011] ZVW30 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[04.2009 - 12.2011] ZVW30 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210P
|
82210P
90982-08308 Fusible Link[04.2009 - 12.2011] ZVW30 40A-30A-30A,FEMALE |
90982-08308 |
from US $6.56 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[04.2009 - 12.2011] ZVW30 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[04.2009 - 12.2011] ZVW30 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2009 - 12.2011] ZVW30 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2009 - 12.2011] ZVW30 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2009 - 12.2011] ZVW30 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2009 - 12.2011] ZVW30 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[04.2009 - 12.2011] ZVW30 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[04.2009 - 12.2011] ZVW30 |
82616-58010 |
from US $2.40 |
||
|
82620D
|
82620D
82620-75010 Block Assy, Fusible LinkFUSIBLE LINK [04.2009 - 12.2011] ZVW30 |
82620-75010 |
US $57.02 |
||
|
82641
|
82641
82641-47031 Relay, Integration No.1[04.2009 - 11.2010] ZVW30 |
82641-47031 |
US $128.76 |
||
|
82641
|
82641
82641-47090
Relay, Integration No.1
[11.2010 - 12.2011] ZVW30 |
82641-47090 |
— | ||
|
82641C
|
82641C
82641-71010 Relay, Integration No.1[04.2009 - 12.2011] ZVW30 |
82641-71010 |
from US $151.13 |
||
|
82642A
|
82642A
90987-02027 Relay[12.2011 -] ZVW30..USA; ZVW30..(G,S)..USA KOREA SPEC |
90987-02027 |
from US $31.43 |
||
|
82660B
|
82660B
82660-75010 Block Assy, RelayRELAY [04.2009 - 12.2011] ZVW30 |
82660-75010 |
US $11.50 |
||
|
82661
|
82661
82661-47040 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [04.2009 - 12.2011] ZVW30 |
82661-47040 |
US $2.75 |
||
|
82661A
|
82661A
82661-75010 Cover, Relay Block, No.2RELAY BLOCK, NO.2 [04.2009 - 12.2011] ZVW30 |
82661-75010 |
US $5.92 |
||
|
82662A
|
82662A
82662-47090 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [04.2009 - 11.2010] ZVW30 |
82662-47090 |
US $51.83 |
||
|
82662A
|
82662A
82662-47091 Cover, Relay Block, Upper, No.1[11.2010 - 12.2011] ZVW30 |
82662-47091 |
US $36.25 |
||
|
82662A
|
82662A
82662-47150 Cover, Relay Block, Upper, No.1[12.2011 - 11.2015] ZVW30 |
82662-47150 |
US $51.83 |
||
|
82663
|
82663
82663-75010 Cover, Relay Block, LowerRELAY BLOCK, LOWER [04.2009 - 12.2011] ZVW30 |
82663-75010 |
US $39.06 |
||
|
82741
|
82741
82741-47020 Block, Engine Room Relay[12.2011 - 11.2015] ZVW30 |
82741-47020 |
US $81.40 |
||
|
82741
|
82741
82741-75010 Block, Engine Room RelayENGINE ROOM RELAY [04.2009 - 12.2011] ZVW30 |
82741-75010 |
US $75.24 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[04.2009 - 12.2011] ZVW30 |
82824-41010 |
from US $3.24 |
||
|
85924
|
85924
90987-02025 Relay[04.2009 - 12.2011] ZVW30 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[06.2009 - 12.2011] ZVW30..USA |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[04.2009 - 05.2009] ZVW30..USA |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02027 Relay[04.2009 - 12.2011] ZVW30 |
90987-02027 |
from US $31.43 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[04.2009 - 12.2011] ZVW30 |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02027 Relay[04.2009 - 12.2011] ZVW30 |
90987-02027 |
from US $31.43 |
||
|
85942
|
85942
85942-48020 Relay, Headlamp Cleaner ControlHEADLAMP CLEANER CONTROL [04.2009 - 04.2010] ZVW30..G,S HEADLAMP-LED |
85942-48020 |
US $110.66 |
||
| replacement | |||||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[04.2009 - 04.2010] ZVW30..G,S HEADLAMP-LED |
85942-58010 |
from US $115.77 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[05.2010 - 12.2011] ZVW30..G,S HEADLAMP-LED |
85942-58010 |
from US $115.77 |
||
|
89530H
|
89530H
90987-02027 Relay[11.2010 - 12.2011] ZVW30 |
90987-02027 |
from US $31.43 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
