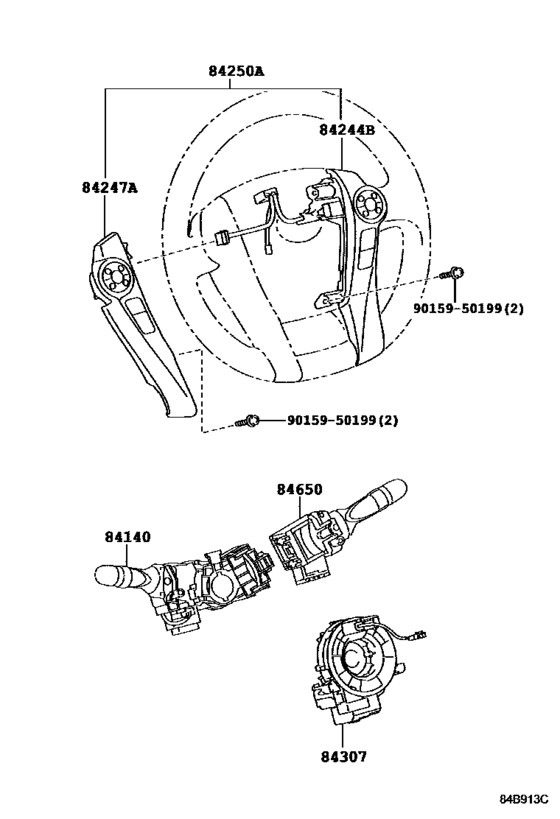

Switch & Relay & Computer ([04.2009 - ] STEERING (0904- )) Diagram Toyota PRIUS
- Year
- 2009 - 2015
- Sales region
- U.S.A.
- Frame
- ZVW30
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS
- From
- 04.2009
- To
- 11.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-47130 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [04.2009 - 12.2011] ZVW30..(G,S)..USA HEADLAMP-LED |
84140-47130 |
from US $80.08 |
||
|
84140
|
84140
84140-47140 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [04.2009 - 12.2011] ZVW30..USA |
84140-47140 |
from US $97.84 |
||
|
84140
|
84140
84140-47151
Switch Assy, Headlamp Dimmer
[12.2011 -] ZVW30..(L,S)..USA |
84140-47151 |
— | ||
|
84244B
|
84244B
84244-47030-B0 Switch, Steering Pad, Rh[04.2009 - 12.2011] ZVW30..G,S SILVER ME.11SV09,TRIM1#,4#,6# |
84244-47030-B0 |
US $384.38 |
||
|
84244B
|
84244B
84244-47080-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..S..USA KOREA SPEC&AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47080-B0 |
US $141.23 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47081-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..S..USA KOREA SPEC&AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47081-B0 |
US $220.32 |
||
|
84244B
|
84244B
84244-47081-B0 Switch, Steering Pad, Rh[10.2013 - 11.2015] ZVW30..S..USA KOREA SPEC&AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47081-B0 |
US $220.32 |
||
|
84244B
|
84244B
84244-47100-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..G,S ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47100-B0 |
US $320.32 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..G,S ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47101-B0 |
US $373.90 |
||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[10.2013 - 11.2015] ZVW30..G,S ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47101-B0 |
US $373.90 |
||
|
84244B
|
84244B
84244-47170-B0
Switch, Steering Pad, Rh
[10.2012 - 10.2013] ZVW30..S..USA USA SPECIAL PACKAGE,ORNAMENT SILVER,TRIM2#; ZVW30..S..USA USA SPECIAL PACKAGE&AUDIO-*DA SDARS *BT USB 6SP,ORNAMENT SILVER,TRIM2# |
84244-47170-B0 |
— | ||
| replacement | |||||
|
84244B
|
84244B
84244-47171-B0 Switch, Steering Pad, Rh[10.2012 - 10.2013] ZVW30..S..USA USA SPECIAL PACKAGE,ORNAMENT SILVER,TRIM2#; ZVW30..S..USA USA SPECIAL PACKAGE&AUDIO-*DA SDARS *BT USB 6SP,ORNAMENT SILVER,TRIM2# |
84244-47171-B0 |
US $320.32 |
||
|
84244B
|
84244B
84244-47171-B0 Switch, Steering Pad, Rh[08.2014 - 12.2014] ZVW30..S..USA USA SPECIAL PACKAGE,ORNAMENT SILVER,TRIM2#; ZVW30..S..USA USA SPECIAL PACKAGE&AUDIO-*DA SDARS *BT USB 6SP,ORNAMENT SILVER,TRIM2# |
84244-47171-B0 |
US $320.32 |
||
|
84247A
|
84247A
84247-47020-B0 Switch, Steering Pad, Lh[04.2009 - 12.2011] ZVW30..S SILVER ME.11SV09,TRIM1#,4#,6# |
84247-47020-B0 |
US $215.49 |
||
|
84247A
|
84247A
84247-47030-B0 Switch, Steering Pad, Lh[04.2009 - 12.2011] ZVW30..G SILVER ME.11SV09,TRIM1#,4#,6#; ZVW30..S..USA AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,4#,6#; ZVW30..S AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,4#,6#; ZVW30..S AUDIO-AV,SDARS,BLUETOOTH,JBL,8 |
84247-47030-B0 |
US $231.50 |
||
|
84247A
|
84247A
84247-47050-B0 Switch, Steering Pad, Lh[12.2011 - 09.2013] ZVW30..S..USA KOREA SPEC&AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47050-B0 |
US $141.23 |
||
| replacement | |||||
|
84247A
|
84247A
84247-47051-B0 Switch, Steering Pad, Lh[12.2011 - 09.2013] ZVW30..S..USA KOREA SPEC&AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47051-B0 |
US $220.32 |
||
|
84247A
|
84247A
84247-47051-B0 Switch, Steering Pad, Lh[10.2013 - 11.2015] ZVW30..S..USA KOREA SPEC&AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47051-B0 |
US $220.32 |
||
|
84247A
|
84247A
84247-47080-B0 Switch, Steering Pad, Lh[12.2011 - 09.2013] ZVW30..G ORNAMENT SILVER,TRIM1#,4#,6#; ZVW30..CND PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER,ORNAMENT SILVER,TRIM1#,4#,6#; ZVW30..S AUDIO-*DA SDARS *BT USB 6SP,ORNAMENT SILVER,TRIM1#,4#,6 |
84247-47080-B0 |
US $192.19 |
||
| replacement | |||||
|
84247A
|
84247A
84247-47081-B0 Switch, Steering Pad, Lh[12.2011 - 09.2013] ZVW30..G ORNAMENT SILVER,TRIM1#,4#,6#; ZVW30..CND PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER,ORNAMENT SILVER,TRIM1#,4#,6#; ZVW30..S AUDIO-*DA SDARS *BT USB 6SP,ORNAMENT SILVER,TRIM1#,4#,6 |
84247-47081-B0 |
US $225.39 |
||
|
84247A
|
84247A
84247-47081-B0 Switch, Steering Pad, Lh[10.2013 - 11.2015] ZVW30..G ORNAMENT SILVER,TRIM1#,4#,6#; ZVW30..S AUDIO-*DA SDARS *BT USB 6SP,ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47081-B0 |
US $225.39 |
||
|
84247A
|
84247A
84247-47090-B0
Switch, Steering Pad, Lh
[12.2011 - 09.2013] ZVW30..S ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47090-B0 |
— | ||
| replacement | |||||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[12.2011 - 09.2013] ZVW30..S ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47091-B0 |
— | ||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[10.2013 - 11.2015] ZVW30..S ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47091-B0 |
— | ||
|
84247A
|
84247A
84247-47140-B0
Switch, Steering Pad, Lh
[10.2012 - 10.2013] ZVW30..S..USA USA SPECIAL PACKAGE&AUDIO-*DA SDARS *BT USB 6SP,ORNAMENT SILVER,TRIM2# |
84247-47140-B0 |
— | ||
| replacement | |||||
|
84247A
|
84247A
84247-47141-B0 Switch, Steering Pad, Lh[10.2012 - 10.2013] ZVW30..S..USA USA SPECIAL PACKAGE&AUDIO-*DA SDARS *BT USB 6SP,ORNAMENT SILVER,TRIM2# |
84247-47141-B0 |
US $334.88 |
||
|
84247A
|
84247A
84247-47141-B0 Switch, Steering Pad, Lh[08.2014 - 12.2014] ZVW30..S..USA USA SPECIAL PACKAGE&AUDIO-*DA SDARS *BT USB 6SP,ORNAMENT SILVER,TRIM2# |
84247-47141-B0 |
US $334.88 |
||
|
84247A
|
84247A
84247-47150-B0
Switch, Steering Pad, Lh
[10.2012 - 10.2013] ZVW30..S..USA USA SPECIAL PACKAGE,ORNAMENT SILVER,TRIM2# |
84247-47150-B0 |
— | ||
| replacement | |||||
|
84247A
|
84247A
84247-47151-B0
Switch, Steering Pad, Lh
[10.2012 - 10.2013] ZVW30..S..USA USA SPECIAL PACKAGE,ORNAMENT SILVER,TRIM2# |
84247-47151-B0 |
— | ||
|
84247A
|
84247A
84247-47151-B0
Switch, Steering Pad, Lh
[08.2014 - 12.2014] ZVW30..S..USA USA SPECIAL PACKAGE,ORNAMENT SILVER,TRIM2# |
84247-47151-B0 |
— | ||
|
84250A
|
84250A
84250-47200-B0 Switch Assy, Steering Pad[04.2009 - 12.2011] ZVW30..S SILVER ME.11SV09,TRIM1#,4#,6# |
84250-47200-B0 |
US $477.57 |
||
|
84250A
|
84250A
84250-47210-B0 Switch Assy, Steering Pad[04.2009 - 12.2011] ZVW30..G SILVER ME.11SV09,TRIM1#,4#,6#; ZVW30..S..USA AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,4#,6#; ZVW30..S AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,4#,6#; ZVW30..S..USA AUDIO-AV,SDARS,BLUETOOTH, |
84250-47210-B0 |
US $495.04 |
||
|
84307
|
84307
84307-47020 Cable Sub-Assy, Spiral[04.2009 - 12.2011] ZVW30 |
84307-47020 |
US $380.93 |
||
| replacement | |||||
|
84307
|
84307
84307-47021 Cable Sub-Assy, Spiral[04.2009 - 12.2011] ZVW30 |
84307-47021 |
from US $359.91 |
||
|
84650
|
84650
84652-48180 Switch Assy, Windshield WiperWINDSHIELD WIPER [04.2009 - 12.2011] ZVW30..G,S |
84652-48180 |
from US $94.35 |
||
|
84650
|
84650
84652-76010 Switch Assy, Windshield Wiper[12.2011 -] ZVW30..(G,S)..USA |
84652-76010 |
US $97.55 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
