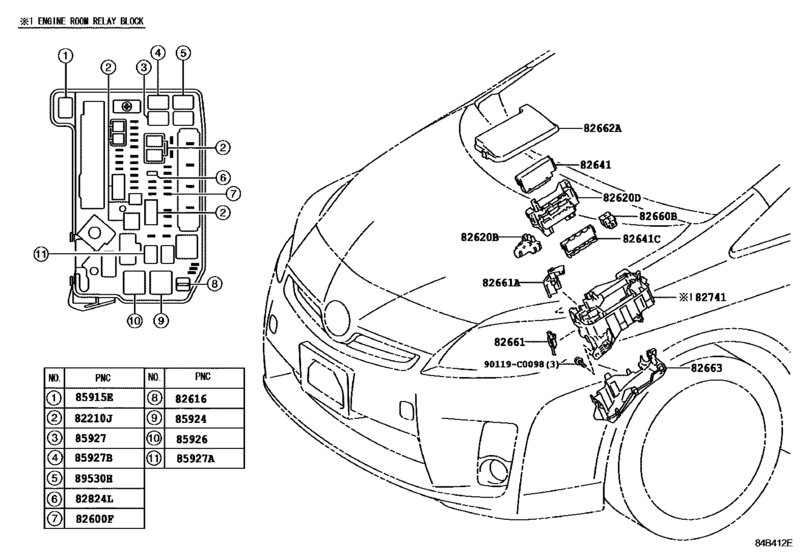

Switch & Relay & Computer ([12.2011 - ] ENGINE ROOM (1112- )) Diagram Toyota PRIUS
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ZVW30
- ENGINE
- 5ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS
- From
- 12.2011
- To
- 10.2015
- Vehicle Model
- PRIUS
- Fuel Induction
- CVFC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08297 Fusible Link[12.2011 -] ZVW30 125A |
90982-08297 |
US $8.32 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[12.2011 -] ZVW30 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08304 Fusible Link[12.2011 -] ZVW30 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[12.2011 -] ZVW30 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82210J
|
82210J
90982-08308 Fusible Link[12.2011 -] ZVW30 40A-30A-30A,FEMALE |
90982-08308 |
from US $6.56 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2011 -] ZVW30 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2011 -] ZVW30 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2011 -] ZVW30 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2011 -] ZVW30 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2011 -] ZVW30 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2011 -] ZVW30 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2011 -] ZVW30 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[12.2011 -] ZVW30 |
82616-58010 |
from US $2.40 |
||
|
82620B
|
82620B
82620-47060 Block Assy, Fusible Link[12.2011 -] ZVW30 |
82620-47060 |
US $9.76 |
||
|
82620D
|
82620D
82620-75010 Block Assy, Fusible LinkFUSIBLE LINK [12.2011 -] ZVW30 |
82620-75010 |
US $57.02 |
||
|
82641
|
82641
82641-47090
Relay, Integration No.1
[12.2011 -] ZVW30 |
82641-47090 |
— | ||
|
82641C
|
82641C
82641-71010 Relay, Integration No.1[12.2011 -] ZVW30 |
82641-71010 |
from US $151.13 |
||
|
82660B
|
82660B
82660-75010 Block Assy, RelayRELAY [12.2011 -] ZVW30 |
82660-75010 |
US $11.50 |
||
|
82661
|
82661
82661-47040 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [12.2011 -] ZVW30 |
82661-47040 |
US $2.75 |
||
|
82661A
|
82661A
82661-75010 Cover, Relay Block, No.2RELAY BLOCK, NO.2 [12.2011 -] ZVW30 |
82661-75010 |
US $5.92 |
||
|
82662A
|
82662A
82662-47100
Cover, Relay Block, Upper, No.1
[12.2011 -] ZVW30 |
82662-47100 |
— | ||
|
82663
|
82663
82663-75010 Cover, Relay Block, LowerRELAY BLOCK, LOWER [12.2011 -] ZVW30 |
82663-75010 |
US $39.06 |
||
|
82741
|
82741
82741-47020 Block, Engine Room Relay[12.2011 -] ZVW30 |
82741-47020 |
US $81.40 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[12.2011 -] ZVW30 |
82824-41010 |
from US $3.24 |
||
|
85915E
|
85915E
90987-T2005
Relay, Water Pump
[12.2011 -] ZVW30 |
90987-T2005 |
— | ||
|
85924
|
85924
90987-T2004
Relay, Water Pump
[12.2011 -] ZVW30 |
90987-T2004 |
— | ||
|
85926
|
85926
90987-T4002
Relay Assy (For Heater Blower Motor)
[12.2011 -] ZVW30 |
90987-T4002 |
— | ||
|
85927
|
85927
90987-T2005
Relay, Water Pump
[12.2011 -] ZVW30 |
90987-T2005 |
— | ||
|
85927A
|
85927A
90987-T4001
Relay Assy, Starter
[12.2011 -] ZVW30 |
90987-T4001 |
— | ||
|
85927B
|
85927B
90987-T2005
Relay, Water Pump
[12.2011 -] ZVW30 |
90987-T2005 |
— | ||
|
89530H
|
89530H
90987-02027 Relay[12.2011 -] ZVW30 |
90987-02027 |
from US $31.43 |
||
|
90119C0098
|
90119C0098
90119-C0098
New Genuine Part
|
90119-C0098 |
— |
