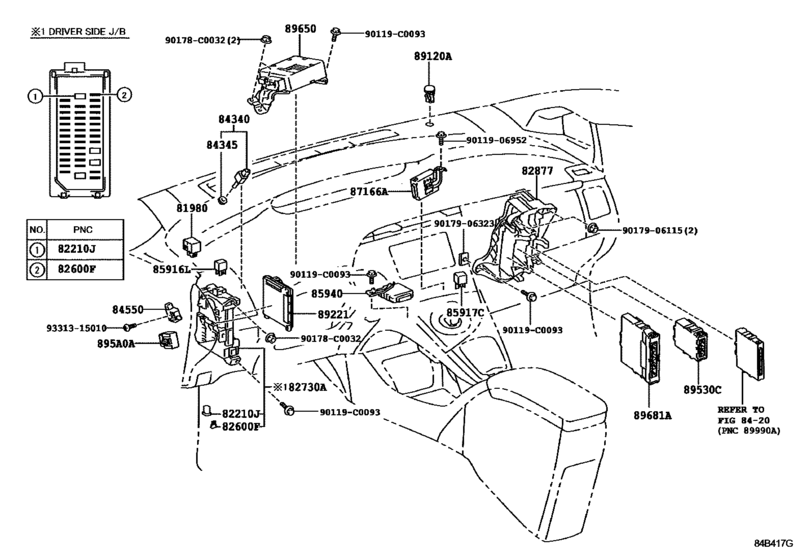

Switch & Relay & Computer ([12.2011 - ] COWL (1112- )) Diagram Toyota PRIUS
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ZVW30
- ENGINE
- 5ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS
- From
- 12.2011
- To
- 10.2015
- Vehicle Model
- PRIUS
- Fuel Induction
- CVFC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0A
|
895A0A
895A0-20020 Computer Assy, Stop Lamp ControlSTOP LAMP CONTROL [12.2011 -] ZVW30 |
895A0-20020 |
US $48.75 |
||
|
81980
|
81980
81980-02040
Flasher Assy, Turn Signal
[12.2011 -] ZVW30 |
81980-02040 |
— | ||
|
82210J
|
82210J
90982-08297 Fusible Link[12.2011 -] ZVW30 125A |
90982-08297 |
US $8.32 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[12.2011 -] ZVW30 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08304 Fusible Link[12.2011 -] ZVW30 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[12.2011 -] ZVW30 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82210J
|
82210J
90982-08308 Fusible Link[12.2011 -] ZVW30 40A-30A-30A,FEMALE |
90982-08308 |
from US $6.56 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2011 -] ZVW30 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2011 -] ZVW30 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2011 -] ZVW30 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2011 -] ZVW30 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2011 -] ZVW30 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2011 -] ZVW30 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2011 -] ZVW30 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82730A
|
82730A
82730-47490
Block Assy, Driver Side Junction
[12.2011 -] ZVW30 |
82730-47490 |
— | ||
|
82877
|
82877
82877-47010
Box, Computer Integration, Rh
[12.2011 -] ZVW30 |
82877-47010 |
— | ||
|
84340
|
84340
84340-59645 Switch Assy, Stop Lamp[12.2011 -] ZVW30 |
84340-59645 |
US $43.17 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[12.2011 -] ZVW30 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-47010 Switch Assy, Parking BrakePARKING BRAKE [12.2011 - 10.2015] ZVW30 |
84550-47010 |
US $30.58 |
||
|
85916L
|
85916L
90987-T2005
Relay, Water Pump
[12.2011 -] ZVW30 |
90987-T2005 |
— | ||
|
85917C
|
85917C
90987-04010 Relay Assy (For Heater Blower Motor)[12.2011 -] ZVW30 MOON ROOF-WITH(SOLAR PANEL) |
90987-04010 |
US $42.71 |
||
|
85940
|
85940
85940-47030 Relay Assy, Windshield Wiper[12.2011 -] ZVW30 DELUXE ADVANCE&AUDIO-AVN 6SPEAKER BLUETOOTH |
85940-47030 |
US $154.34 |
||
|
87166A
|
87166A
87166-47010
Computer, Solar Battery Airconditioner Blower Vent
[12.2011 -] ZVW30 MOON ROOF-WITH(SOLAR PANEL) |
87166-47010 |
— | ||
|
89120A
|
89120A
89121-30010 Sensor, Automatic Light Control[12.2011 -] ZVW30 |
89121-30010 |
US $155.52 |
||
|
89221
|
89221
89220-47Z90
Computer, Multiplex Network Body
[12.2011 -] ZVW30 DELUXE ADVANCE |
89220-47Z90 |
— | ||
|
89221
|
89221
89220-4E010
Computer, Multiplex Network Body
[12.2011 -] ZVW30 |
89220-4E010 |
— | ||
|
89221
|
89221
89220-4E020
Computer, Multiplex Network Body
[12.2011 -] ZVW30 DELUXE ADVANCE&MOON ROOF-WITH(SOLAR PANEL) |
89220-4E020 |
— | ||
|
89530C
|
89530C
89535-76020 Computer Assy, Transmission Control[12.2011 - 12.2013] ZVW30 |
89535-76020 |
US $795.20 |
||
|
89530C
|
89530C
89535-76021 Computer Assy, Transmission Control[01.2014 -] ZVW30 |
89535-76021 |
US $502.24 |
||
|
89650
|
89650
89650-47321 Computer Assy, Power Steering[12.2011 -] ZVW30 |
89650-47321 |
US $460.10 |
||
|
89681A
|
89681A
89681-47320 Computer, Power Management Control[12.2011 - 09.2013] ZVW30 |
89681-47320 |
US $1,343.89 |
||
|
89681A
|
89681A
89681-47460
Computer, Power Management Control
[09.2013 -] ZVW30 |
89681-47460 |
— | ||
|
90119C0093
|
90119C0093
90119-C0093
New Genuine Part
|
90119-C0093 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.76 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
