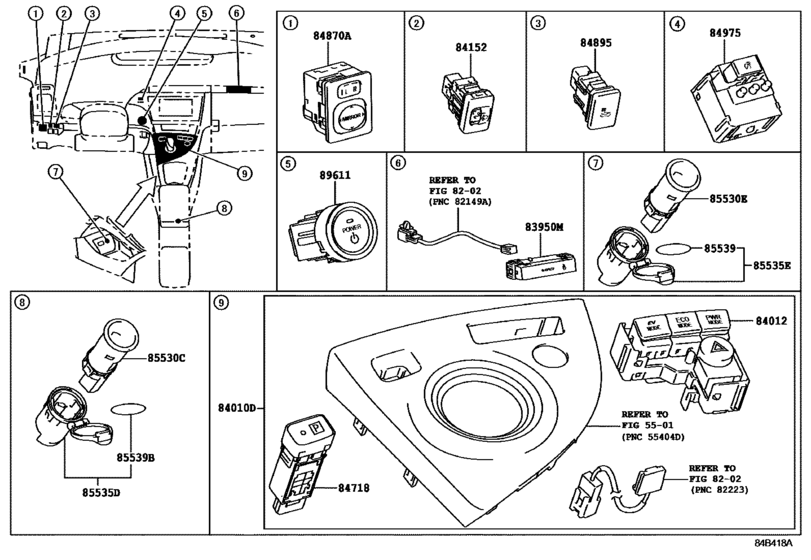

Switch & Relay & Computer ([12.2011 - ] INSTRUMENT PANEL (1112- )) Diagram Toyota PRIUS
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ZVW30
- ENGINE
- 5ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS
- From
- 12.2011
- To
- 10.2015
- Vehicle Model
- PRIUS
- Fuel Induction
- CVFC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83950M
|
83950M
83950-47051
Lamp Assy, Telltale
[12.2011 -] ZVW30 |
83950-47051 |
— | ||
|
84010D
|
84010D
84010-47060
Control & Panel Assy, Integration
[12.2011 -] ZVW30 |
84010-47060 |
— | ||
|
84012
|
84012
84012-47060
Control & Panel Sub-Assy, Integration
[12.2011 - 12.2012] ZVW30 |
84012-47060 |
— | ||
| replacement | |||||
|
84012
|
84012
84012-47061
Control & Panel Sub-Assy, Integration
[12.2011 - 12.2012] ZVW30 |
84012-47061 |
— | ||
|
84012
|
84012
84012-47061
Control & Panel Sub-Assy, Integration
[01.2013 -] ZVW30 |
84012-47061 |
— | ||
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[12.2011 - 01.2015] ZVW30 |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[12.2011 - 01.2015] ZVW30 |
84152-52071 |
US $43.24 |
||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[02.2015 -] ZVW30 |
84152-52071 |
US $43.24 |
||
|
84718
|
84718
84718-47060
Switch, Transmission Shift Main
[12.2011 - 12.2012] ZVW30 |
84718-47060 |
— | ||
| replacement | |||||
|
84718
|
84718
84718-47061
Switch, Transmission Shift Main
[12.2011 - 12.2012] ZVW30 |
84718-47061 |
— | ||
|
84718
|
84718
84718-47061
Switch, Transmission Shift Main
[01.2013 -] ZVW30 |
84718-47061 |
— | ||
|
84870A
|
84870A
84870-28030
Switch Assy, Outer Mirror
[12.2011 -] ZVW30 |
84870-28030 |
— | ||
|
84895
|
84895
84895-47010 Switch, VentilatorVENTILATOR [12.2011 - 11.2014] ZVW30 MOON ROOF-WITH(SOLAR PANEL) |
84895-47010 |
US $39.60 |
||
| replacement | |||||
|
84895
|
84895
84895-47011 Switch, Ventilator[12.2011 - 11.2014] ZVW30 MOON ROOF-WITH(SOLAR PANEL) |
84895-47011 |
US $39.60 |
||
|
84895
|
84895
84895-47011 Switch, Ventilator[12.2014 -] ZVW30 MOON ROOF-WITH(SOLAR PANEL) |
84895-47011 |
US $39.60 |
||
|
84975
|
84975
84975-47200
Switch, Trip
[12.2011 -] ZVW30 |
84975-47200 |
— | ||
|
85530C
|
85530C
85530-42010 Socket Assy, Power Outlet, No.1[12.2011 - 10.2015] ZVW30 |
85530-42010 |
from US $26.60 |
||
|
85530E
|
85530E
85530-0N010
Socket Assy, Power Outlet, No.1
[09.2013 -] ZVW30 |
85530-0N010 |
— | ||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[12.2011 - 09.2013] ZVW30 |
85530-42010 |
from US $26.60 |
||
|
85535D
|
85535D
85535-60140-C0
Cover, Power Outlet Socket, No.1
[12.2011 - 10.2015] ZVW30 BLACK |
85535-60140-C0 |
— | ||
|
85535E
|
85535E
85535-60140-C0
Cover, Power Outlet Socket, No.1
[12.2011 - 10.2015] ZVW30 BLACK |
85535-60140-C0 |
— | ||
|
85539
|
85539
85539-48030
Label, Power Outlet Notice
[12.2011 -] ZVW30 |
85539-48030 |
— | ||
|
85539B
|
85539B
85539-48030
Label, Power Outlet Notice
[12.2011 -] ZVW30 |
85539-48030 |
— | ||
|
89611
|
89611
89611-75042 Switch, Push Start[12.2011 - 03.2012] ZVW30 |
89611-75042 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[12.2011 - 03.2012] ZVW30 |
89611-75044 |
US $210.24 |
||
|
89611
|
89611
89611-75043 Switch, Push Start[04.2012 -] ZVW30 |
89611-75043 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[04.2012 -] ZVW30 |
89611-75044 |
US $210.24 |
||
