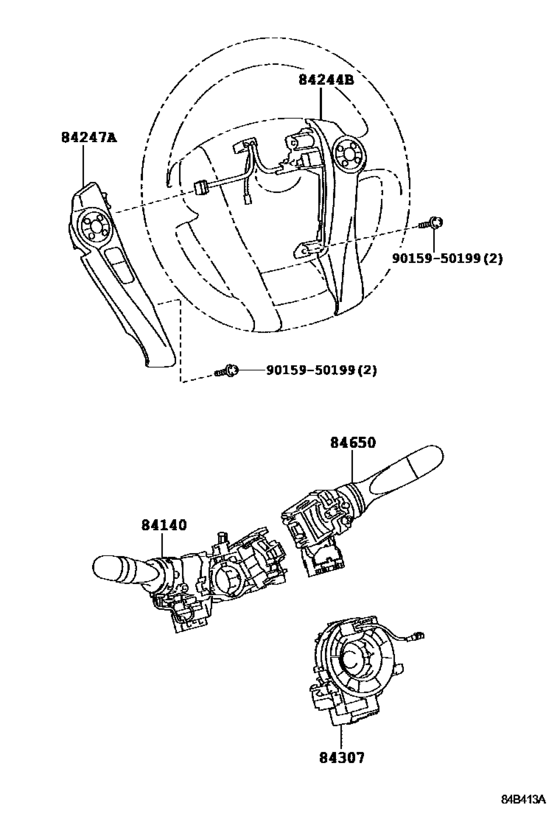

Switch & Relay & Computer ([12.2011 - ] STEERING (1112- )) Diagram Toyota PRIUS
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ZVW30
- ENGINE
- 5ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS
- From
- 12.2011
- To
- 10.2015
- Vehicle Model
- PRIUS
- Fuel Induction
- CVFC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-0P011
Switch Assy, Headlamp Dimmer
[12.2011 -] ZVW30 DELUXE ADVANCE |
84140-0P011 |
— | ||
|
84140
|
84140
84140-42101 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [12.2011 -] ZVW30 |
84140-42101 |
US $90.27 |
||
|
84244B
|
84244B
84244-47100-B0 Switch, Steering Pad, Rh[12.2011 - 11.2013] ZVW30 ORNAMENT SILVER,TRIM1# |
84244-47100-B0 |
US $320.32 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[12.2011 - 11.2013] ZVW30 ORNAMENT SILVER,TRIM1# |
84244-47101-B0 |
US $373.90 |
||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[11.2013 - 10.2015] ZVW30 ORNAMENT SILVER,TRIM1# |
84244-47101-B0 |
US $373.90 |
||
|
84247A
|
84247A
84247-47090-B0
Switch, Steering Pad, Lh
[12.2011 - 11.2013] ZVW30 AUDIO-AVN 6SPEAKER BLUETOOTH,ORNAMENT SILVER,TRIM1# |
84247-47090-B0 |
— | ||
| replacement | |||||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[12.2011 - 11.2013] ZVW30 AUDIO-AVN 6SPEAKER BLUETOOTH,ORNAMENT SILVER,TRIM1# |
84247-47091-B0 |
— | ||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[11.2013 - 10.2015] ZVW30 AUDIO-AVN 6SPEAKER BLUETOOTH,ORNAMENT SILVER,TRIM1# |
84247-47091-B0 |
— | ||
|
84247A
|
84247A
84247-52130-B0
Switch, Steering Pad, Lh
[12.2011 - 11.2013] ZVW30 ORNAMENT SILVER,TRIM1# |
84247-52130-B0 |
— | ||
| replacement | |||||
|
84247A
|
84247A
84247-52131-B0 Switch, Steering Pad, Lh[12.2011 - 11.2013] ZVW30 ORNAMENT SILVER,TRIM1# |
84247-52131-B0 |
US $141.23 |
||
|
84247A
|
84247A
84247-52131-B0 Switch, Steering Pad, Lh[11.2013 - 10.2015] ZVW30 ORNAMENT SILVER,TRIM1# |
84247-52131-B0 |
US $141.23 |
||
|
84307
|
84307
84307-74020
Cable Sub-Assy, Spiral
[12.2011 -] ZVW30 |
84307-74020 |
— | ||
| replacement | |||||
|
84307
|
84307
8430774021 Cable Sub-Assy, Spiral W/Sensor[12.2011 -] ZVW30 |
8430774021 |
US $462 |
||
|
84650
|
84650
84652-0R010
Switch Assy, Windshield Wiper
[12.2011 -] ZVW30 |
84652-0R010 |
— | ||
|
84650
|
84650
84652-48190 Switch Assy, Windshield WiperWINDSHIELD WIPER [12.2011 -] ZVW30 DELUXE ADVANCE |
84652-48190 |
US $110.66 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
