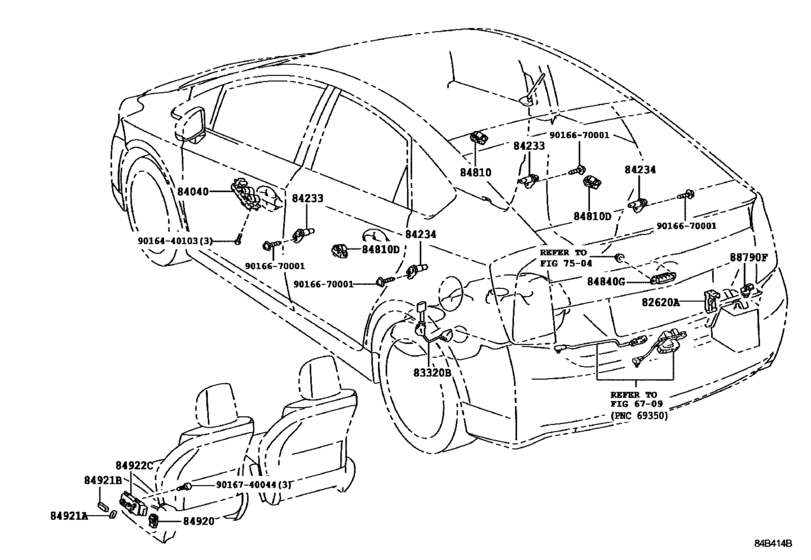

Switch & Relay & Computer ([12.2011 - ] DOOR,ROOF,FLOOR & LUGGAGE (1112- )) Diagram Toyota PRIUS
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ZVW30
- ENGINE
- 5ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS
- From
- 12.2011
- To
- 10.2015
- Vehicle Model
- PRIUS
- Fuel Induction
- CVFC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82620A
|
82620A
82620-47070 Block Assy, Fusible LinkFUSIBLE LINK [12.2011 -] ZVW30 |
82620-47070 |
US $6.08 |
||
|
83320B
|
83320B
83320-47080 Gage Assy, Fuel Sender[12.2011 - 10.2015] ZVW30 |
83320-47080 |
from US $45.75 |
||
|
84040
|
84040
84040-33100 Master Switch Assy,multiplex Network[12.2011 -] ZVW30 |
84040-33100 |
from US $334.04 |
||
|
84233
|
84233
84231-02130
Switch Assy, Courtesy Lamp (For Front Door)
[12.2011 - 11.2014] ZVW30 |
84231-02130 |
— | ||
|
84233
|
84233
84231-0R010
Switch Assy, Courtesy Lamp (For Front Door)
[12.2014 -] ZVW30 |
84231-0R010 |
— | ||
|
84234
|
84234
84231-02130
Switch Assy, Courtesy Lamp (For Front Door)
[12.2011 - 11.2014] ZVW30 |
84231-02130 |
— | ||
|
84234
|
84234
84231-0R010
Switch Assy, Courtesy Lamp (For Front Door)
[12.2014 -] ZVW30 |
84231-0R010 |
— | ||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[12.2011 -] ZVW30 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[12.2011 -] ZVW30 |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[12.2011 -] ZVW30 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[12.2011 -] ZVW30 |
84810-06090 |
US $211.68 |
||
|
84840G
|
84840G
84840-28030 Switch Assy, Luggage Compartment Door Opening[12.2011 -] ZVW30 |
84840-28030 |
from US $38.91 |
||
|
84840G
|
84840G
84840-28040 Switch Assy, Back Door Opener[12.2011 -] ZVW30 DELUXE ADVANCE |
84840-28040 |
from US $64.60 |
||
|
84920
|
84920
84920-60090-B3
Switch, Front Power Seat(For Lumbar)
[12.2011 - 10.2015] ZVW30 SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
84920-60090-B3 |
— | ||
|
84921A
|
84921A
84921-60180-B3
Knob, Power Seat Switch (For Reclining)
[12.2011 - 10.2015] ZVW30 SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
84921-60180-B3 |
— | ||
|
84921B
|
84921B
84921-60160-B3
Knob, Power Seat Switch (For Slide & Vertical)
[12.2011 - 10.2015] ZVW30 SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
84921-60160-B3 |
— | ||
|
84922C
|
84922C
84922-60180 Switch, Front Power SeatFRONT POWER SEAT, LH [12.2011 - 10.2015] ZVW30 SEAT COVER MATERIAL-NATURAL LEATHER |
84922-60180 |
from US $96.10 |
||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[12.2011 -] ZVW30 |
88790-22131 |
US $33.55 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
