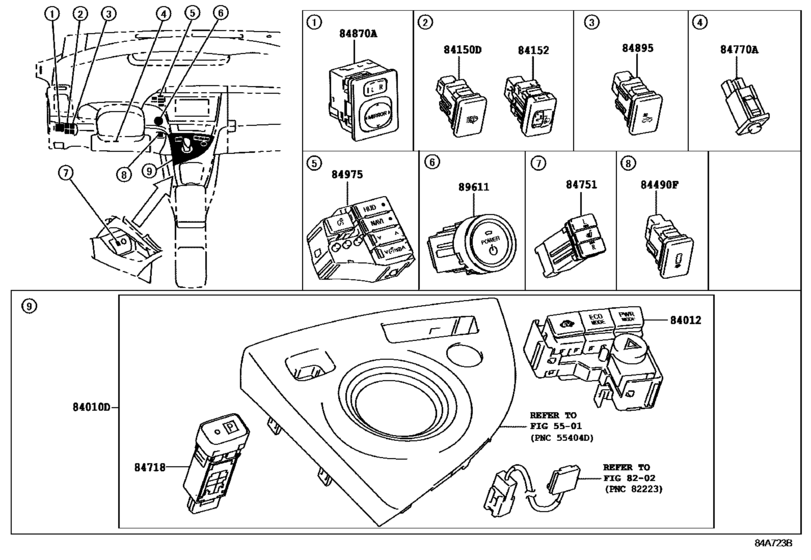

Switch & Relay & Computer ([04.2009 - 12.2011] INSTRUMENT PANEL (0904-1112)LHD) Diagram Toyota PRIUS
- Year
- 2009 - 2015
- Sales region
- Europe
- Frame
- ZVW30
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- PRIUS
- From
- 04.2009
- To
- 11.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84010D
|
84010D
84010-47020
Control & Panel Assy, Integration
[04.2009 - 11.2010] ZVW30..LHD |
84010-47020 |
— | ||
| replacement | |||||
|
84010D
|
84010D
84010-47021-B0
Control & Panel Assy, Integration
[04.2009 - 11.2010] ZVW30..LHD |
84010-47021-B0 |
— | ||
|
84010D
|
84010D
84010-47020-B0
Control & Panel Assy, Integration
[11.2010 - 12.2011] ZVW30..LHD SILVER ME.11SV09,TRIM1#,6# |
84010-47020-B0 |
— | ||
| replacement | |||||
|
84010D
|
84010D
84010-47021-B0
Control & Panel Assy, Integration
[11.2010 - 12.2011] ZVW30..LHD SILVER ME.11SV09,TRIM1#,6# |
84010-47021-B0 |
— | ||
|
84010D
|
84010D
84010-47060
Control & Panel Assy, Integration
[12.2011 -] ZVW30..LHD |
84010-47060 |
— | ||
|
84012
|
84012
84012-47020
Control & Panel Sub-Assy, Integration
[04.2009 - 12.2011] ZVW30..LHD |
84012-47020 |
— | ||
| replacement | |||||
|
84012
|
84012
84012-47021
Control & Panel Sub-Assy, Integration
[04.2009 - 12.2011] ZVW30..LHD |
84012-47021 |
— | ||
|
84012
|
84012
84012-47060
Control & Panel Sub-Assy, Integration
[12.2011 - 12.2012] ZVW30..LHD |
84012-47060 |
— | ||
| replacement | |||||
|
84012
|
84012
84012-47061
Control & Panel Sub-Assy, Integration
[12.2011 - 12.2012] ZVW30..LHD |
84012-47061 |
— | ||
|
84012
|
84012
84012-47061
Control & Panel Sub-Assy, Integration
[01.2013 -] ZVW30..LHD |
84012-47061 |
— | ||
|
84150D
|
84150D
84150-47010 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [04.2009 - 12.2011] ZVW30..ARL,EUR HEADLAMP-LED |
84150-47010 |
US $39.60 |
||
| replacement | |||||
|
84150D
|
84150D
84150-47011 Switch Assy, Headlamp Cleaner[04.2009 - 12.2011] ZVW30..ARL,EUR HEADLAMP-LED |
84150-47011 |
US $35.96 |
||
|
84150D
|
84150D
84150-47011 Switch Assy, Headlamp Cleaner[02.2015 -] ZVW30..ARL,EUR HEADLAMP-LED |
84150-47011 |
US $35.96 |
||
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[04.2009 - 12.2011] ZVW30..ARL,EUR; ZVW30..ARL,EUR HEADLAMP-LED |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[04.2009 - 12.2011] ZVW30..ARL,EUR; ZVW30..ARL,EUR HEADLAMP-LED |
84152-52071 |
US $43.24 |
||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[03.2015 -] ZVW30..ARL,EUR; ZVW30..ARL,EUR HEADLAMP-LED |
84152-52071 |
US $43.24 |
||
|
84490F
|
84490F
84490-58020 Switch Assy, Ipa Main[04.2009 - 12.2011] ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER; ZVW30..ARL AUDIO-AVN,BLUETOOTH,8SPEAKER; ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER |
84490-58020 |
US $34.36 |
||
| replacement | |||||
|
84490F
|
84490F
84490-58021 Switch Assy, Ipa Main[04.2009 - 12.2011] ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER; ZVW30..ARL AUDIO-AVN,BLUETOOTH,8SPEAKER; ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER |
84490-58021 |
US $34.36 |
||
|
84490F
|
84490F
84490-58021 Switch Assy, Ipa Main[03.2015 -] ZVW30..EUR AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER; ZVW30..LHD AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER; ZVW30..LHD AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER; ZVW30..RHD..EUR AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER; ZVW30..ARL AUDIO-A |
84490-58021 |
US $34.36 |
||
|
84718
|
84718
84718-47020
Switch, Transmission Shift Main
[04.2009 - 12.2011] ZVW30..LHD |
84718-47020 |
— | ||
| replacement | |||||
|
84718
|
84718
84718-47061
Switch, Transmission Shift Main
[04.2009 - 12.2011] ZVW30..LHD |
84718-47061 |
— | ||
|
84718
|
84718
84718-47060
Switch, Transmission Shift Main
[12.2011 - 12.2012] ZVW30..LHD |
84718-47060 |
— | ||
| replacement | |||||
|
84718
|
84718
84718-47061
Switch, Transmission Shift Main
[12.2011 - 12.2012] ZVW30..LHD |
84718-47061 |
— | ||
|
84718
|
84718
84718-47061
Switch, Transmission Shift Main
[01.2013 -] ZVW30..LHD |
84718-47061 |
— | ||
|
84751
|
84751
84751-47030 Switch, Seat Heater[12.2011 - 01.2015] ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER |
84751-47030 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47031 Switch, Seat Heater[12.2011 - 01.2015] ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER |
84751-47031 |
US $55.18 |
||
|
84751
|
84751
84751-47031 Switch, Seat Heater[02.2015 -] ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER |
84751-47031 |
US $55.18 |
||
|
84751
|
84751
84751-52030 Switch, Seat Heater[04.2009 - 12.2011] ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER |
84751-52030 |
US $47.61 |
||
| replacement | |||||
|
84751
|
84751
84751-52031 Switch, Seat Heater[04.2009 - 12.2011] ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER |
84751-52031 |
US $64.60 |
||
|
84770A
|
84770A
84770-48010 Switch Assy, Pre-Collision System Cancel[04.2009 - 12.2011] ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH) |
84770-48010 |
US $34.36 |
||
|
84870A
|
84870A
84870-28040 Switch Assy, Outer Mirror[12.2011 -] ZVW30..ARL,EUR |
84870-28040 |
US $66.27 |
||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[04.2009 - 12.2011] ZVW30..ARL,EUR |
84870-34010 |
from US $57.15 |
||
|
84895
|
84895
84895-47010 Switch, VentilatorVENTILATOR [04.2009 - 12.2011] ZVW30..ARL,EUR MOON ROOF-WITH(SOLAR PANEL) |
84895-47010 |
US $39.60 |
||
| replacement | |||||
|
84895
|
84895
84895-47011 Switch, Ventilator[04.2009 - 12.2011] ZVW30..ARL,EUR MOON ROOF-WITH(SOLAR PANEL) |
84895-47011 |
US $39.60 |
||
|
84895
|
84895
84895-47011 Switch, Ventilator[03.2015 -] ZVW30..ARL,EUR MOON ROOF-WITH(SOLAR PANEL) |
84895-47011 |
US $39.60 |
||
|
84975
|
84975
84975-47030
Switch, Trip
[04.2009 - 07.2009] ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER |
84975-47030 |
— | ||
|
84975
|
84975
84975-47090
Switch, Trip
[04.2009 - 12.2011] ZVW30..LHD |
84975-47090 |
— | ||
|
84975
|
84975
84975-47170
Switch, Trip
[12.2011 -] ZVW30..LHD EMV & NAVIGATION SYSTEM-AVN |
84975-47170 |
— | ||
|
84975
|
84975
84975-47180
Switch, Trip
[12.2011 -] ZVW30..LHD |
84975-47180 |
— | ||
|
89611
|
89611
89611-33010 Switch, Push Start[04.2009 - 01.2010] ZVW30 |
89611-33010 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-33014 Switch, Push Start[04.2009 - 01.2010] ZVW30 |
89611-33014 |
US $163.07 |
||
|
89611
|
89611
89611-33011 Switch, Push StartPUSH START [02.2010 - 04.2011] ZVW30..ARL,EUR |
89611-33011 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-33014 Switch, Push Start[02.2010 - 04.2011] ZVW30..ARL,EUR |
89611-33014 |
US $163.07 |
||
|
89611
|
89611
89611-33012 Switch, Push Start[05.2011 - 12.2011] ZVW30..ARL,EUR |
89611-33012 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-33014 Switch, Push Start[05.2011 - 12.2011] ZVW30..ARL,EUR |
89611-33014 |
US $163.07 |
||
|
89611
|
89611
89611-75042 Switch, Push Start[12.2011 - 02.2012] ZVW30..ARL,EUR |
89611-75042 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[12.2011 - 02.2012] ZVW30..ARL,EUR |
89611-75044 |
US $210.24 |
||
|
89611
|
89611
89611-75043 Switch, Push Start[03.2012 -] ZVW30..ARL,EUR |
89611-75043 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[03.2012 -] ZVW30..ARL,EUR |
89611-75044 |
US $210.24 |
||
