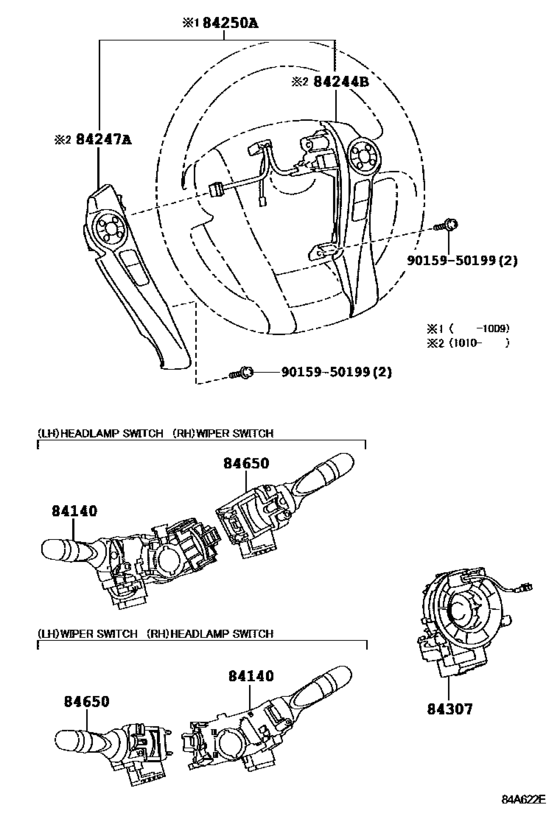

Switch & Relay & Computer ([04.2009 - ] STEERING (0904- )) Diagram Toyota PRIUS
- Year
- 2009 - 2015
- Sales region
- Europe
- Frame
- ZVW30
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- PRIUS
- From
- 04.2009
- To
- 11.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-42101 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [04.2009 - 12.2011] ZVW30..EUR |
84140-42101 |
US $90.27 |
||
|
84140
|
84140
84140-42111 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [04.2009 - 12.2011] ZVW30..EUR EXPORT UPPER PACKAGE&HEADLAMP-LED; ZVW30..RHD..EUR EUROPE SUPERLATIVE PACKAGE&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED; ZVW30..LHD EUROPE SUPERLATIVE PACKAGE&HEADLAMP-LED |
84140-42111 |
from US $100.46 |
||
|
84140
|
84140
84140-47130 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [04.2009 - 12.2011] ZVW30..LHD CHILE SPEC |
84140-47130 |
from US $80.08 |
||
|
84140
|
84140
84140-48200
Switch Assy, Headlamp Dimmer
[04.2009 - 12.2011] ZVW30..LHD CHILE SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
84140-48200 |
— | ||
|
84140
|
84140
84140-48201
Switch Assy, Headlamp Dimmer
[10.2014 -] ZVW30..LHD CHILE SPEC&EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR)&HEADLAMP-LED |
84140-48201 |
— | ||
|
84244B
|
84244B
84244-47030-B0 Switch, Steering Pad, Rh[04.2009 - 12.2011] ZVW30..ARL,EUR SILVER ME.11SV09,TRIM1#,6# |
84244-47030-B0 |
US $384.38 |
||
|
84244B
|
84244B
84244-47040-B0 Switch, Steering Pad, Rh[04.2009 - 12.2011] ZVW30..ARL PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH),SILVER ME.11SV09,TRIM1#,6#; ZVW30..EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVE R ME.11SV09,TRIM1#,6#; ZVW30..LHD PRE-COLLISION SYSTEM |
84244-47040-B0 |
US $416.42 |
||
|
84244B
|
84244B
84244-47080-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..LHD AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM2#,6# |
84244-47080-B0 |
US $141.23 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47081-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..LHD AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM2#,6# |
84244-47081-B0 |
US $220.32 |
||
|
84244B
|
84244B
84244-47081-B0 Switch, Steering Pad, Rh[10.2013 - 11.2015] ZVW30..LHD AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM2#,6# |
84244-47081-B0 |
US $220.32 |
||
|
84244B
|
84244B
84244-47100-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..ARL,EUR ORNAMENT SILVER,TRIM2#,6# |
84244-47100-B0 |
US $320.32 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..ARL,EUR ORNAMENT SILVER,TRIM2#,6# |
84244-47101-B0 |
US $373.90 |
||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[10.2013 - 11.2015] ZVW30..ARL,EUR ORNAMENT SILVER,TRIM2#,6# |
84244-47101-B0 |
US $373.90 |
||
|
84244B
|
84244B
84244-47110-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN(FOR EURO) *BT USB JBL 8S PEAKER&EMV & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRIM2#,6#; ZVW30..ARL PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN(FOR AUSTRA |
84244-47110-B0 |
US $346.53 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47111-B0 Switch, Steering Pad, Rh[12.2011 - 09.2013] ZVW30..EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN(FOR EURO) *BT USB JBL 8S PEAKER&EMV & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRIM2#,6#; ZVW30..ARL PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN(FOR AUSTRA |
84244-47111-B0 |
US $346.53 |
||
|
84244B
|
84244B
84244-47111-B0 Switch, Steering Pad, Rh[10.2013 - 08.2014] ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN(FOR EURO) *BT USB JBL 8S PEAKER&EMV & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRIM2#,6# |
84244-47111-B0 |
US $346.53 |
||
|
84247A
|
84247A
84247-47020-B0 Switch, Steering Pad, Lh[04.2009 - 12.2011] ZVW30..EUR SILVER ME.11SV09,TRIM1#,6# |
84247-47020-B0 |
US $215.49 |
||
|
84247A
|
84247A
84247-47030-B0 Switch, Steering Pad, Lh[04.2009 - 12.2011] ZVW30..ARL SILVER ME.11SV09,TRIM1#,6#; ZVW30..EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVE R ME.11SV09,TRIM1#,6#; ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-CD,BLUETOOTH,8 |
84247-47030-B0 |
US $231.50 |
||
|
84247A
|
84247A
84247-47050-B0 Switch, Steering Pad, Lh[12.2011 - 09.2013] ZVW30..LHD AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM2#,6# |
84247-47050-B0 |
US $141.23 |
||
| replacement | |||||
|
84247A
|
84247A
84247-47051-B0 Switch, Steering Pad, Lh[12.2011 - 09.2013] ZVW30..LHD AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM2#,6# |
84247-47051-B0 |
US $220.32 |
||
|
84247A
|
84247A
84247-47051-B0 Switch, Steering Pad, Lh[10.2013 - 11.2015] ZVW30..LHD AUDIO-RADIO LESS,6SPEAKER,ORNAMENT SILVER,TRIM2#,6# |
84247-47051-B0 |
US $220.32 |
||
|
84247A
|
84247A
84247-47080-B0 Switch, Steering Pad, Lh[12.2011 - 09.2013] ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&AUDIO-AV N(FOR RUSSIA) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRI M2#,6#; ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME |
84247-47080-B0 |
US $192.19 |
||
| replacement | |||||
|
84247A
|
84247A
84247-47081-B0 Switch, Steering Pad, Lh[12.2011 - 09.2013] ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&AUDIO-AV N(FOR RUSSIA) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRI M2#,6#; ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME |
84247-47081-B0 |
US $225.39 |
||
|
84247A
|
84247A
84247-47081-B0 Switch, Steering Pad, Lh[10.2013 - 08.2014] ZVW30..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&AUDIO -AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER, TRIM2#,6#; ZVW30..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & |
84247-47081-B0 |
US $225.39 |
||
|
84247A
|
84247A
84247-47090-B0
Switch, Steering Pad, Lh
[12.2011 - 09.2013] ZVW30..ARL,EUR ORNAMENT SILVER,TRIM2#,6# |
84247-47090-B0 |
— | ||
| replacement | |||||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[12.2011 - 09.2013] ZVW30..ARL,EUR ORNAMENT SILVER,TRIM2#,6# |
84247-47091-B0 |
— | ||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[10.2013 - 11.2015] ZVW30..ARL,EUR ORNAMENT SILVER,TRIM2#,6# |
84247-47091-B0 |
— | ||
|
84250A
|
84250A
84250-47200-B0 Switch Assy, Steering Pad[04.2009 - 12.2011] ZVW30..EUR SILVER ME.11SV09,TRIM1#,6# |
84250-47200-B0 |
US $477.57 |
||
|
84250A
|
84250A
84250-47210-B0 Switch Assy, Steering Pad[04.2009 - 12.2011] ZVW30..ARL SILVER ME.11SV09,TRIM1#,6#; ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6#; ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6#; ZVW30..EUR AUDIO-CD,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1 |
84250-47210-B0 |
US $495.04 |
||
|
84250A
|
84250A
84250-47220-B0 Switch Assy, Steering Pad[04.2009 - 12.2011] ZVW30..ARL PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH),SILVER ME.11SV09,TRIM1#,6#; ZVW30..EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVE R ME.11SV09,TRIM1#,6#; ZVW30..LHD PRE-COLLISION SYSTEM |
84250-47220-B0 |
US $505.23 |
||
|
84307
|
84307
84307-74020
Cable Sub-Assy, Spiral
[04.2009 - 12.2011] ZVW30..ARL,EUR |
84307-74020 |
— | ||
| replacement | |||||
|
84307
|
84307
8430774021 Cable Sub-Assy, Spiral W/Sensor[04.2009 - 12.2011] ZVW30..ARL,EUR |
8430774021 |
US $462 |
||
|
84650
|
84650
84652-48180 Switch Assy, Windshield WiperWINDSHIELD WIPER [04.2009 - 12.2011] ZVW30..EUR |
84652-48180 |
from US $94.35 |
||
|
84650
|
84650
84652-48190 Switch Assy, Windshield WiperWINDSHIELD WIPER [04.2009 - 12.2011] ZVW30..LHD TAIWAN SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AV,BLU ETOOTH,8SPEAKER; ZVW30..EUR MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAK |
84652-48190 |
US $110.66 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
