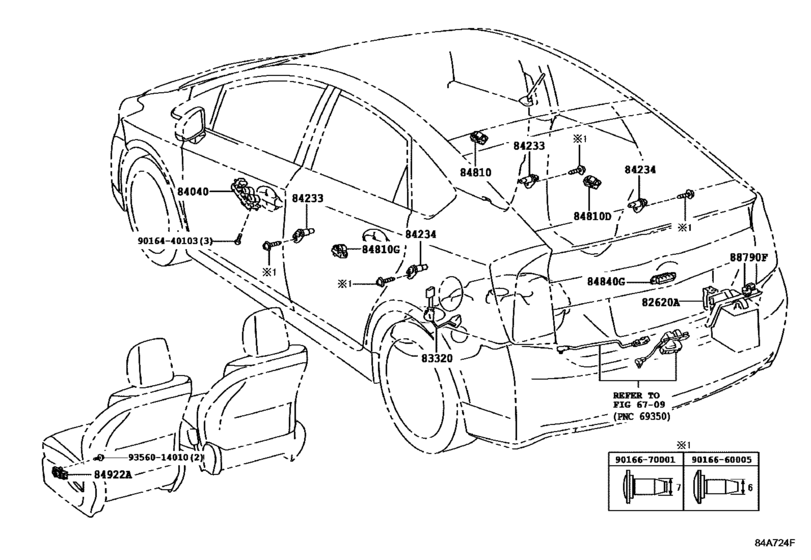

Switch & Relay & Computer ([04.2009 - ] DOOR,ROOF,FLOOR & BACK DOOR (0904- )LHD) Diagram Toyota PRIUS
- Year
- 2009 - 2015
- Sales region
- Europe
- Frame
- ZVW30
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- PRIUS
- From
- 04.2009
- To
- 11.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82620A
|
82620A
82620-47070 Block Assy, Fusible LinkFUSIBLE LINK [04.2009 - 12.2011] ZVW30..ARL,EUR |
82620-47070 |
US $6.08 |
||
|
83320
|
83320
83320-47050 Gage Assy, Fuel SenderFUEL SENDER [04.2009 - 12.2011] ZVW30..ARL,EUR |
83320-47050 |
US $51.25 |
||
| replacement | |||||
|
83320
|
83320
83320-47080 Gage Assy, Fuel Sender[04.2009 - 12.2011] ZVW30..ARL,EUR |
83320-47080 |
from US $45.75 |
||
|
83320
|
83320
83320-47080 Gage Assy, Fuel Sender[08.2013 - 11.2015] ZVW30..ARL,EUR |
83320-47080 |
from US $45.75 |
||
|
84040
|
84040
84040-33100 Master Switch Assy,multiplex Network[04.2009 - 12.2011] ZVW30..LHD |
84040-33100 |
from US $334.04 |
||
|
84040
|
84040
84040-60160
Master Switch Assy,multiplex Network
[05.2014 - 11.2015] ZVW30..LHD |
84040-60160 |
— | ||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[04.2009 - 12.2011] ZVW30..ARL,EUR |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[04.2009 - 12.2011] ZVW30..ARL,EUR |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[04.2009 - 12.2011] ZVW30..ARL,EUR |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[04.2009 - 12.2011] ZVW30..ARL,EUR |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[04.2009 - 12.2011] ZVW30..ARL,EUR |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[04.2009 - 12.2011] ZVW30..ARL,EUR |
84810-06090 |
US $211.68 |
||
|
84810G
|
84810G
84810-33120 Switch Assy, Power Window Regulator[04.2009 - 12.2011] ZVW30..ARL,EUR |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810G
|
84810G
84810-06090 Switch Assy, Power Window Regulator[04.2009 - 12.2011] ZVW30..ARL,EUR |
84810-06090 |
US $211.68 |
||
|
84840G
|
84840G
84840-28030 Switch Assy, Luggage Compartment Door Opening[04.2009 - 12.2011] ZVW30..EUR |
84840-28030 |
from US $38.91 |
||
|
84840G
|
84840G
84840-28040 Switch Assy, Back Door Opener[04.2009 - 12.2011] ZVW30..ARL; ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK); ZVW30..EUR WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK) |
84840-28040 |
from US $64.60 |
||
|
84922A
|
84922A
84920-60050-B2 Switch Assy, Power SeatPOWER SEAT [04.2009 - 12.2011] ZVW30..LHD MD.GRAY,TRIM1# |
84920-60050-B2 |
US $45.57 |
||
|
84922A
|
84922A
84920-60050-C0 Switch Assy, Power SeatPOWER SEAT [12.2011 - 11.2015] ZVW30..LHD BLACK,TRIM2# |
84920-60050-C0 |
from US $42.73 |
||
|
84922A
|
84922A
84920-60050-G0
Switch, Front Power Seat(For Lumbar)
[04.2009 - 12.2011] ZVW30..LHD AQUA,TRIM6# |
84920-60050-G0 |
— | ||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[04.2009 - 12.2011] ZVW30..ARL,EUR |
88790-22131 |
US $33.55 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016660005
|
9016660005
90166-60005 New Genuine Part |
90166-60005 |
US $0.96 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
