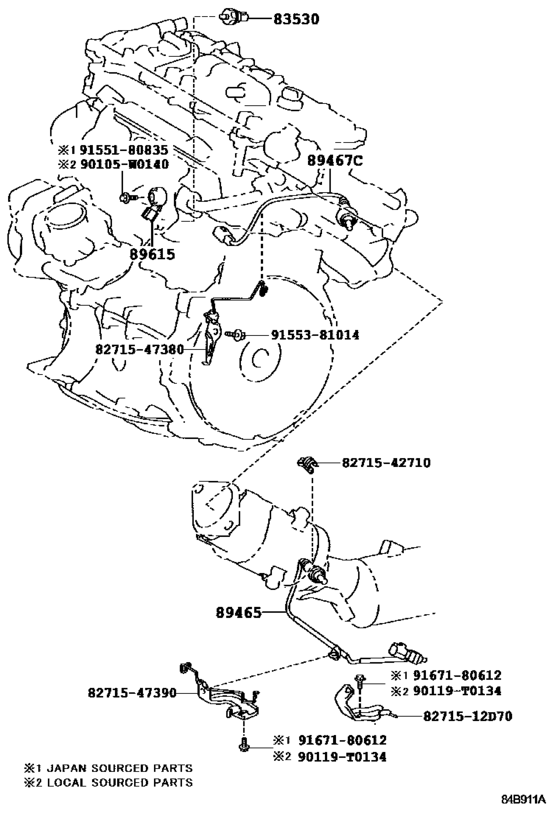

Switch & Relay & Computer ([04.2009 - ] ENGINE & TRANSMISSION (0904- )) Diagram Toyota PRIUS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- ZVW30
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- TH
- Model
- PRIUS
- From
- 12.2010
- To
- 10.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-12050 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZVW30..ARL,EUR; ZVW30..TH YAZAKI |
83530-12050 |
US $29.27 |
||
| replacement | |||||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] ZVW30..ARL,EUR; ZVW30..TH YAZAKI |
83530-12060 |
from US $25.82 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[12.2010 - 04.2012] ZVW30..TH DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2010 - 04.2012] ZVW30..TH DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[12.2010 - 04.2012] ZVW30..TH DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2010 - 04.2012] ZVW30..TH YAZAKI |
83530-60020 |
from US $25.21 |
||
|
89465
|
89465
89465-47080 Sensor, OxygenOXYGEN [12.2010 - 04.2012] ZVW30..TH |
89465-47080 |
US $115.44 |
||
|
89467C
|
89467C
89467-52060 Sensor, OxygenAIR FUEL RATIO [12.2010 - 04.2012] ZVW30..TH |
89467-52060 |
from US $146.52 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[12.2010 - 04.2012] ZVW30..TH |
89615-20090 |
from US $36.02 |
||
|
90105W0140
|
90105W0140
90105-W0140 New Genuine Part |
90105-W0140 |
US $1.02 |
||
|
90119T0134
|
90119T0134
90119-T0134
BOLT WWASHER
|
90119-T0134 |
— | ||
|
8271512D70
|
8271512D70
82715-12D70
Bracket,wiring Harness Clamp
|
82715-12D70 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
8271547380
|
8271547380
82715-47380
Bracket,wiring Harness Clamp
|
82715-47380 |
— | ||
|
8271547390
|
8271547390
82715-47390
Bracket,wiring Harness Clamp
|
82715-47390 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.84 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
