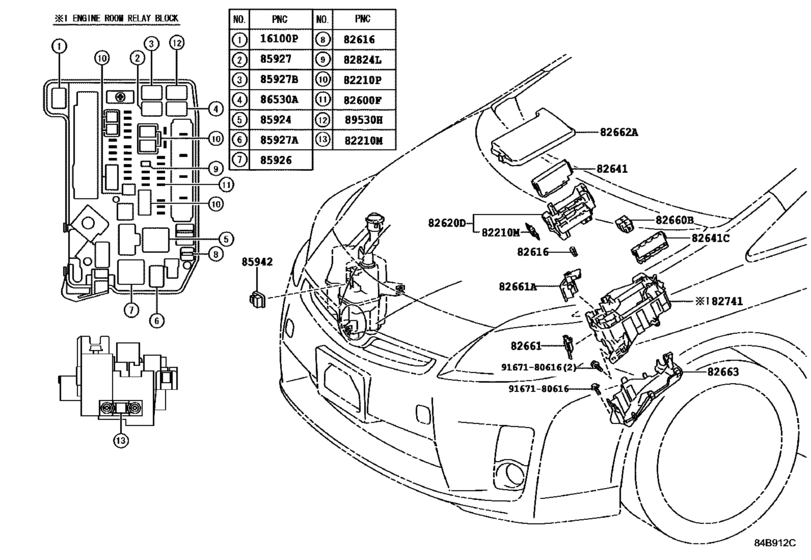

Switch & Relay & Computer ([12.2010 - 04.2012] ENGINE ROOM (0904-1112)ARL,EUR ; (1012-1204)TH) Diagram Toyota PRIUS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- ZVW30
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- TH
- Model
- PRIUS
- From
- 12.2010
- To
- 10.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100P
|
16100P
90987-02027 Relay[12.2010 - 04.2012] ZVW30..TH (J) |
90987-02027 |
from US $44.54 |
||
|
16100P
|
16100P
90987-T2001
Relay, Power Outlet Socket
[12.2010 - 04.2012] ZVW30..TH (L) |
90987-T2001 |
— | ||
|
82210M
|
82210M
90982-08297 Fusible Link[12.2010 - 04.2012] ZVW30..TH 125A |
90982-08297 |
US $8.32 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[12.2010 - 04.2012] ZVW30..TH 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08300 Fusible Link[12.2010 - 04.2012] ZVW30..TH 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[12.2010 - 04.2012] ZVW30..TH 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210P
|
82210P
90982-08308 Fusible Link[12.2010 - 04.2012] ZVW30..TH 40A-30A-30A,FEMALE |
90982-08308 |
from US $6.56 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2010 - 04.2012] ZVW30..TH 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2010 - 04.2012] ZVW30..TH 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2010 - 04.2012] ZVW30..TH 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2010 - 04.2012] ZVW30..TH 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2010 - 04.2012] ZVW30..TH 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2010 - 04.2012] ZVW30..TH 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2010 - 04.2012] ZVW30..TH 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[12.2010 - 04.2012] ZVW30..TH |
82616-58010 |
from US $2.40 |
||
|
82620D
|
82620D
82620-75010 Block Assy, Fusible LinkFUSIBLE LINK [12.2010 - 04.2012] ZVW30..TH |
82620-75010 |
US $57.02 |
||
|
82641
|
82641
82641-75070 Relay, Integration No.1[12.2010 - 04.2012] ZVW30..TH |
82641-75070 |
US $88.80 |
||
|
82641
|
82641
82641-75080 Relay, Integration No.1[12.2010 - 04.2012] ZVW30..TH HEADLAMP-LED |
82641-75080 |
US $88.80 |
||
|
82641C
|
82641C
82641-71010 Relay, Integration No.1[12.2010 - 04.2012] ZVW30..TH |
82641-71010 |
from US $151.13 |
||
|
82660B
|
82660B
82660-75010 Block Assy, RelayRELAY [12.2010 - 04.2012] ZVW30..TH |
82660-75010 |
US $11.50 |
||
|
82661
|
82661
82661-47040 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [12.2010 - 04.2012] ZVW30..TH |
82661-47040 |
US $2.75 |
||
|
82661A
|
82661A
82661-75010 Cover, Relay Block, No.2RELAY BLOCK, NO.2 [12.2010 - 04.2012] ZVW30..TH |
82661-75010 |
US $5.92 |
||
|
82662A
|
82662A
82662-47091 Cover, Relay Block, Upper, No.1[12.2010 - 04.2012] ZVW30..TH |
82662-47091 |
US $36.25 |
||
|
82662A
|
82662A
82662-47150 Cover, Relay Block, Upper, No.1[04.2012 - 10.2015] ZVW30..TH |
82662-47150 |
US $51.83 |
||
|
82663
|
82663
82663-75010 Cover, Relay Block, LowerRELAY BLOCK, LOWER [12.2010 - 04.2012] ZVW30..TH |
82663-75010 |
US $39.06 |
||
|
82741
|
82741
82741-47020 Block, Engine Room Relay[04.2012 - 10.2015] ZVW30..TH |
82741-47020 |
US $81.40 |
||
|
82741
|
82741
82741-75010 Block, Engine Room RelayENGINE ROOM RELAY [12.2010 - 04.2012] ZVW30..TH |
82741-75010 |
US $75.24 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[12.2010 - 04.2012] ZVW30..TH |
82824-41010 |
from US $3.24 |
||
|
85924
|
85924
90987-02025 Relay[12.2010 - 04.2012] ZVW30..TH (J) |
90987-02025 |
from US $44.54 |
||
|
85924
|
85924
90987-T2002 Relay, HeadlampHEADLAMP [12.2010 - 04.2012] ZVW30..TH (L) |
90987-T2002 |
US $51.66 |
||
|
85926
|
85926
90987-02025 Relay[12.2010 - 04.2012] ZVW30..TH |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02027 Relay[12.2010 - 04.2012] ZVW30..TH (J) |
90987-02027 |
from US $44.54 |
||
|
85927
|
85927
90987-T2001
Relay, Power Outlet Socket
[12.2010 - 04.2012] ZVW30..TH (L) |
90987-T2001 |
— | ||
|
85927A
|
85927A
90080-87009
Relay, Cooling Fan, No.2
[12.2010 - 04.2012] ZVW30..TH (L) |
90080-87009 |
— | ||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[12.2010 - 04.2012] ZVW30..TH (J) |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02027 Relay[12.2010 - 04.2012] ZVW30..TH (J) |
90987-02027 |
from US $44.54 |
||
|
85927B
|
85927B
90987-T2001
Relay, Power Outlet Socket
[12.2010 - 04.2012] ZVW30..TH (L) |
90987-T2001 |
— | ||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[12.2010 - 04.2012] ZVW30..TH HEADLAMP-LED |
85942-58010 |
from US $115.77 |
||
|
86530A
|
86530A
90987-02027 Relay[12.2010 - 04.2012] ZVW30..TH |
90987-02027 |
from US $44.54 |
||
|
89530H
|
89530H
90987-02027 Relay[12.2010 - 04.2012] ZVW30..TH |
90987-02027 |
from US $44.54 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
