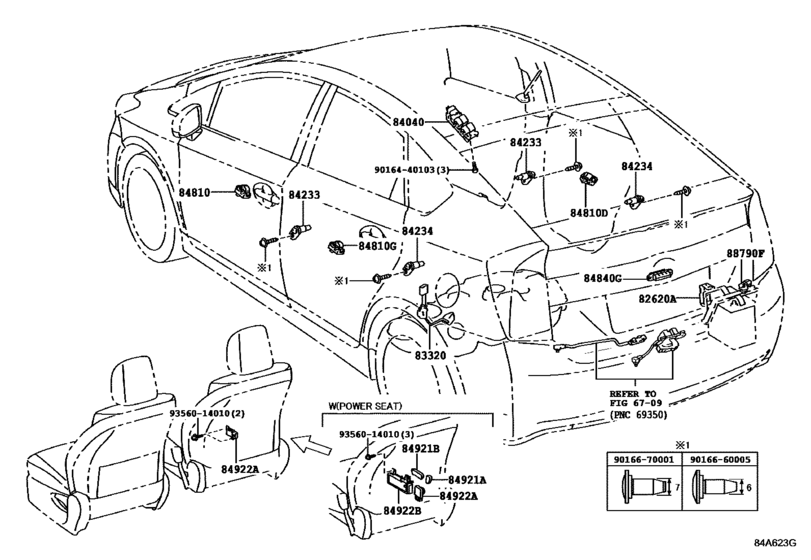

Switch & Relay & Computer ([04.2009 - ] DOOR,ROOF,FLOOR & BACK DOOR (0904- )RHD) Diagram Toyota PRIUS
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- ZVW30
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- TH
- Model
- PRIUS
- From
- 12.2010
- To
- 10.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82620A
|
82620A
82620-47070 Block Assy, Fusible LinkFUSIBLE LINK [12.2010 - 04.2012] ZVW30..TH |
82620-47070 |
US $6.08 |
||
|
83320
|
83320
83320-47050 Gage Assy, Fuel SenderFUEL SENDER [12.2010 - 04.2012] ZVW30..TH |
83320-47050 |
US $51.25 |
||
| replacement | |||||
|
83320
|
83320
83320-47080 Gage Assy, Fuel Sender[12.2010 - 04.2012] ZVW30..TH |
83320-47080 |
from US $45.75 |
||
|
83320
|
83320
83320-47080 Gage Assy, Fuel Sender[11.2013 - 10.2015] ZVW30..TH |
83320-47080 |
from US $45.75 |
||
|
84040
|
84040
84040-33080 Master Switch Assy, Power window regulator[12.2010 - 04.2012] ZVW30..TH |
84040-33080 |
from US $177.22 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[12.2010 - 04.2012] ZVW30..TH |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[12.2010 - 04.2012] ZVW30..TH |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[12.2010 - 04.2012] ZVW30..TH |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[12.2010 - 04.2012] ZVW30..TH |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[12.2010 - 04.2012] ZVW30..TH |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[12.2010 - 04.2012] ZVW30..TH |
84810-06090 |
US $211.68 |
||
|
84810G
|
84810G
84810-33120 Switch Assy, Power Window Regulator[12.2010 - 04.2012] ZVW30..TH |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810G
|
84810G
84810-06090 Switch Assy, Power Window Regulator[12.2010 - 04.2012] ZVW30..TH |
84810-06090 |
US $211.68 |
||
|
84840G
|
84840G
84840-28040 Switch Assy, Back Door Opener[12.2010 - 04.2012] ZVW30..TH |
84840-28040 |
from US $64.60 |
||
|
84921A
|
84921A
84921-60170-C0 Knob, Power Seat Switch (For Reclining)POWER SEAT SWITCH (FOR RECLINING) [04.2012 - 10.2015] ZVW30..TH BLACK,TRIM2# |
84921-60170-C0 |
from US $6.86 |
||
|
84921B
|
84921B
84921-60150-C0 Knob, Power Seat Switch (For Slide & Vertical)POWER SEAT SWITCH (FOR SLIDE & VERTICAL) [04.2012 - 10.2015] ZVW30..TH BLACK,TRIM2# |
84921-60150-C0 |
from US $10.14 |
||
|
84922A
|
84922A
84920-60040-B1 Switch Assy, Power Seat[12.2010 - 04.2012] ZVW30..TH MD.GRAY,TRIM1# |
84920-60040-B1 |
US $63.95 |
||
|
84922A
|
84922A
84920-60090-C0 Switch Assy, Power SeatPOWER SEAT [04.2012 - 10.2015] ZVW30..TH BLACK,TRIM2# |
84920-60090-C0 |
from US $40.19 |
||
|
84922B
|
84922B
84922-60190 Switch, Front Power SeatFRONT POWER SEAT, RH [04.2012 -] ZVW30..TH |
84922-60190 |
from US $83.16 |
||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[12.2010 - 04.2012] ZVW30..TH |
88790-22131 |
US $33.55 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016660005
|
9016660005
90166-60005 New Genuine Part |
90166-60005 |
US $0.96 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
