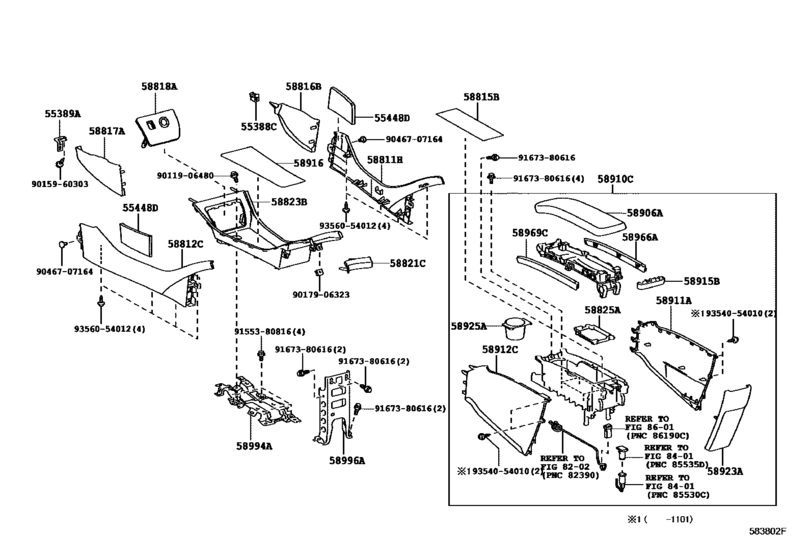

Console Box & Bracket ([12.2009 - ] (0912- )) Diagram Toyota PRIUS
- Year
- 2009 - 2010
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- E
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 12.2009
- To
- 10.2010
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55388C
|
55388C
55388-42010 Bracket, Console Mounting, RhFINISH PANEL MOUNTING, NO.2 [12.2009 -] ZVW35 |
55388-42010 |
US $2.68 |
||
|
55389A
|
55389A
55389-12040 Bracket, Console Mounting, LhFINISH PANEL MOUNTING, NO.1 [12.2009 -] ZVW35 |
55389-12040 |
US $4.95 |
||
|
55448D
|
55448D
55448-47070 Cushion, Instrument Panel Finish Panel, No.1INSTRUMENT PANEL FINISH PANEL, NO.1 [12.2009 -] ZVW35 |
55448-47070 |
US $6.84 |
||
|
58811H
|
58811H
58811-47010-G0
Box, Console, Rh
[12.2009 -] ZVW35 AQUA,TRIM6# |
58811-47010-G0 |
— | ||
|
58812C
|
58812C
58812-47010-G0 Box, Console, LhCONSOLE, LH [12.2009 -] ZVW35 AQUA,TRIM6# |
58812-47010-G0 |
US $59.06 |
||
|
58815B
|
58815B
58815-47030 Carpet, Console BoxCONSOLE BOX [12.2009 -] ZVW35 |
58815-47030 |
US $3.68 |
||
|
58816B
|
58816B
58817-47020-G0
Insert, Console Box
[12.2009 -] ZVW35 AQUA,TRIM6# |
58817-47020-G0 |
— | ||
|
58817A
|
58817A
58816-47020-G0
Insert, Console Box
[12.2009 -] ZVW35 AQUA,TRIM6# |
58816-47020-G0 |
— | ||
|
58818A
|
58818A
58818-47040-G0
Cover, Console Box, Fr
[12.2009 -] ZVW35 AQUA,TRIM6# |
58818-47040-G0 |
— | ||
|
58821C
|
58821C
58821-47020 Panel, Console, UpperCONSOLE, UPPER [12.2009 -] ZVW35 |
58821-47020 |
US $8.15 |
||
|
58823B
|
58823B
58823-47020-G0 Box, Console CompartmentCONSOLE COMPARTMENT [12.2009 -] ZVW35 AQUA,TRIM6# |
58823-47020-G0 |
US $68 |
||
|
58825A
|
58825A
58825-47020 Pocket, Console BoxCONSOLE BOX [12.2009 - 10.2010] ZVW35 |
58825-47020 |
US $24.81 |
||
|
58906A
|
58906A
58906-47010-B1 Pad Sub-Assy, Console Compartment Door[12.2009 -] ZVW35 MIST GRAY,TRIM6# |
58906-47010-B1 |
US $157.25 |
||
|
58910C
|
58910C
58901-47090-B3 Box Assy, Console, RearCONSOLE, REAR [12.2009 -] ZVW35 MIST GRAY,TRIM6# |
58901-47090-B3 |
US $934.75 |
||
|
58911A
|
58911A
58911-47030-G0 Panel, Box Side, No.1BOX SIDE, NO.1 [12.2009 -] ZVW35 AQUA,TRIM6# |
58911-47030-G0 |
US $87.36 |
||
|
58912C
|
58912C
58912-47040-G0 Panel, Box Side, No.2BOX SIDE, NO.2 [12.2009 -] ZVW35 AQUA,TRIM6# |
58912-47040-G0 |
US $87.36 |
||
|
58915B
|
58915B
58915-47010-G0 Cover, Console Compartment Door Box, RearCONSOLE COMPARTMENT DOOR BOX, REAR [12.2009 -] ZVW35 AQUA,TRIM6# |
58915-47010-G0 |
US $10.48 |
||
|
58916
|
58916
58916-47010-B0 Mat, Box BottomBOX BOTTOM [12.2009 -] ZVW35 GRAY,TRIM6# |
58916-47010-B0 |
US $16.26 |
||
|
58923A
|
58923A
58923-47020-G0 Panel, Console Rear EndCONSOLE REAR END [12.2009 -] ZVW35 AQUA,TRIM6# |
58923-47020-G0 |
US $60.72 |
||
|
58925A
|
58925A
58925-47010 Pocket, Console Box, RearCONSOLE BOX, REAR [12.2009 -] ZVW35 |
58925-47010 |
US $30.40 |
||
|
58966A
|
58966A
58966-47010-G0 Insert, Console Compartment Door, No.1CONSOLE COMPARTMENT DOOR, NO.1 [12.2009 -] ZVW35 AQUA,TRIM6# |
58966-47010-G0 |
US $18.05 |
||
|
58969C
|
58969C
58969-47010-G0 Insert, Console Compartment Door, No.2CONSOLE COMPARTMENT DOOR, NO.2 [12.2009 -] ZVW35 AQUA,TRIM6# |
58969-47010-G0 |
US $18.05 |
||
|
58994A
|
58994A
58994-47010 Bracket, Console Box Mounting, No.4CONSOLE BOX MOUNTING, NO.4 [12.2009 -] ZVW35 |
58994-47010 |
US $25.04 |
||
|
58996A
|
58996A
58996-47020 Bracket, Console Box Mounting, No.2CONSOLE BOX MOUNTING, NO.2 [12.2009 -] ZVW35 |
58996-47020 |
US $18.05 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.86 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.12 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.76 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.29 |
||
|
9155380816
|
9155380816
91553-80816 Bolt (For Transmission Control Cable Bracket) |
91553-80816 |
from US $0.86 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
