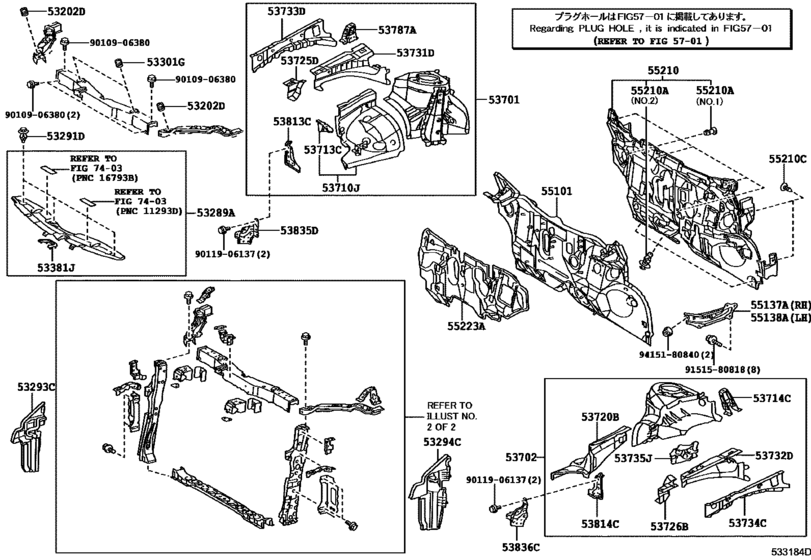

Front Fender Apron & Dash Panel ([12.2009 - ] (0912- )) Diagram Toyota PRIUS
- Year
- 2009 - 2010
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- E
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 12.2009
- To
- 10.2010
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202D
|
53202D
90541-15037 Cushion, Radiator SupportRADIATOR SUPPORT [12.2009 -] ZVW35 |
90541-15037 |
from US $3.20 |
||
|
53289A
|
53289A
53289-47030 Cover, Radiator Support OpeningRADIATOR SUPPORT OPENING [12.2009 - 12.2010] ZVW35 |
53289-47030 |
US $51.83 |
||
| replacement | |||||
|
53289A
|
53289A
53289-47033 Cover, Radiator Support Opening[12.2009 - 12.2010] ZVW35 |
53289-47033 |
from US $51.29 |
||
|
53291D
|
53291D
90467-07211 Clip(For Reserve Tank Outlet Hose No.2)[12.2009 -] ZVW35 |
90467-07211 |
from US $0.88 |
||
|
53293C
|
53293C
53293-47020 Deflector, Radiator Side, RhRADIATOR SIDE, RH [12.2009 -] ZVW35 |
53293-47020 |
US $43.93 |
||
|
53294C
|
53294C
53294-47010 Deflector, Radiator Side, LhRADIATOR SIDE, LH [12.2009 -] ZVW35 |
53294-47010 |
US $43.78 |
||
|
53301G
|
53301G
90541-15035 Cushion, Hood BumperHOOD BUMPER [12.2009 -] ZVW35 |
90541-15035 |
US $4.16 |
||
|
53381J
|
53381J
53381-47030 Seal, Hood To Radiator SupportHOOD TO RADIATOR SUPPORT [12.2009 -] ZVW35 |
53381-47030 |
US $5.10 |
||
|
53701
|
53701
53701-47050 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [12.2009 -] ZVW35 |
53701-47050 |
from US $272.27 |
||
|
53702
|
53702
53702-47050 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [12.2009 -] ZVW35 |
53702-47050 |
from US $272.27 |
||
|
53710J
|
53710J
53710-12030 Apron Assy, Front Fender, RhFRONT FENDER, RH [12.2009 -] ZVW35 |
53710-12030 |
US $71.61 |
||
|
53713C
|
53713C
53713-12160 Extension Sub-Assy, Front Fender Apron, Front Rh[12.2009 -] ZVW35 |
53713-12160 |
US $9.76 |
||
|
53714C
|
53714C
53708-47050 Extension, Front Fender Apron, Front LhFRONT FENDER APRON, FRONT LH [12.2009 -] ZVW35 |
53708-47050 |
US $13.09 |
||
|
53720B
|
53720B
53720-12030 Apron Assy, Front Fender, LhFRONT FENDER, LH [12.2009 -] ZVW35 |
53720-12030 |
US $77.68 |
||
|
53725D
|
53725D
53725-12040 Reinforcement, Front Spring Support, No.2 Rh[12.2009 -] ZVW35 |
53725-12040 |
US $20.37 |
||
|
53726B
|
53726B
53726-12040 Reinforcement, Front Spring Support, No.2 Lh[12.2009 -] ZVW35 |
53726-12040 |
US $14.52 |
||
|
53731D
|
53731D
53731-12170 Member, Front Apron To Cowl Side, Upper Rh[12.2009 -] ZVW35 |
53731-12170 |
US $42.81 |
||
|
53732D
|
53732D
53732-12150 Member, Front Apron To Cowl Side, Upper Lh[12.2009 -] ZVW35 |
53732-12150 |
US $51.02 |
||
|
53733D
|
53733D
53733-12070 Member, Front Apron To Cowl Side, Lower Front Rh[12.2009 -] ZVW35 |
53733-12070 |
US $25.86 |
||
|
53734C
|
53734C
53734-12070 Member, Front Apron To Cowl Side, Lower Front Lh[12.2009 -] ZVW35 |
53734-12070 |
US $25.86 |
||
|
53735J
|
53735J
53735-12070 Patch, Front Fender Apron, No.5[12.2009 -] ZVW35 |
53735-12070 |
US $9.26 |
||
|
53787A
|
53787A
53707-47010 Gusset, Front Fender Apron, Lower RhFRONT FENDER APRON, FRONT RH [12.2009 -] ZVW35 |
53707-47010 |
US $13.09 |
||
|
53813C
|
53813C
53813-47020 Extension, Front Fender, RhFRONT FENDER, RH [12.2009 -] ZVW35 |
53813-47020 |
US $16 |
||
|
53814C
|
53814C
53814-47020 Extension, Front Fender, LhFRONT FENDER, LH [12.2009 -] ZVW35 |
53814-47020 |
from US $17.18 |
||
|
53835D
|
53835D
53835-47010 Bracket, Front Side Panel, RhFRONT SIDE PANEL, RH [12.2009 -] ZVW35 |
53835-47010 |
US $15.72 |
||
| replacement | |||||
|
53835D
|
53835D
53803-47020 Bracket, Front Side Panel, Rh[12.2009 -] ZVW35 |
53803-47020 |
from US $23.28 |
||
|
53836C
|
53836C
53836-47010
Bracket, Front Side Panel, Lh
[12.2009 -] ZVW35 |
53836-47010 |
— | ||
| replacement | |||||
|
53836C
|
53836C
53804-47020 Bracket, Front Side Panel, Lh[12.2009 -] ZVW35 |
53804-47020 |
from US $21.04 |
||
|
55101
|
55101
55101-47060
Panel Sub-Assy, Dash
[12.2009 -] ZVW35 |
55101-47060 |
— | ||
|
55137A
|
55137A
55137-47030 Brace, Dash To Frame, RhDASH TO FRAME, RH [12.2009 -] ZVW35 |
55137-47030 |
US $17.47 |
||
|
55138A
|
55138A
55138-47050 Brace, Dash To Frame, LhDASH TO FRAME, LH [12.2009 -] ZVW35 |
55138-47050 |
US $18.93 |
||
| replacement | |||||
|
55138A
|
55138A
55138-47060 Brace, Dash To Frame, Lh[12.2009 -] ZVW35 |
55138-47060 |
US $30.87 |
||
|
55210
|
55210
55210-47100
Insulator Assy, Dash Panel
[12.2009 -] ZVW35 |
55210-47100 |
— | ||
|
55210A
|
55210A
90467-11122 Clip[12.2009 -] ZVW35 NO.1:REFER ILLUST. |
90467-11122 |
US $1.60 |
||
|
55210A
|
55210A
90467-11127 Clip[12.2009 -] ZVW35 NO.2:REFER ILLUST. |
90467-11127 |
US $1.51 |
||
|
55210C
|
55210C
90467-08186-C0 Clip(For Front Bumper), No.1[12.2009 -] ZVW35 BLACK |
90467-08186-C0 |
from US $0.92 |
||
|
55223A
|
55223A
55223-47070
Insulator, Dash Panel, Outer
[12.2009 -] ZVW35 |
55223-47070 |
— | ||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.72 |
||
|
9151580818
|
9151580818
91515-80818 New Genuine Part |
91515-80818 |
US $1.02 |
||
|
9415180840
|
9415180840
94151-80840 NUT, FLANGE |
94151-80840 |
from US $0.94 |
||
