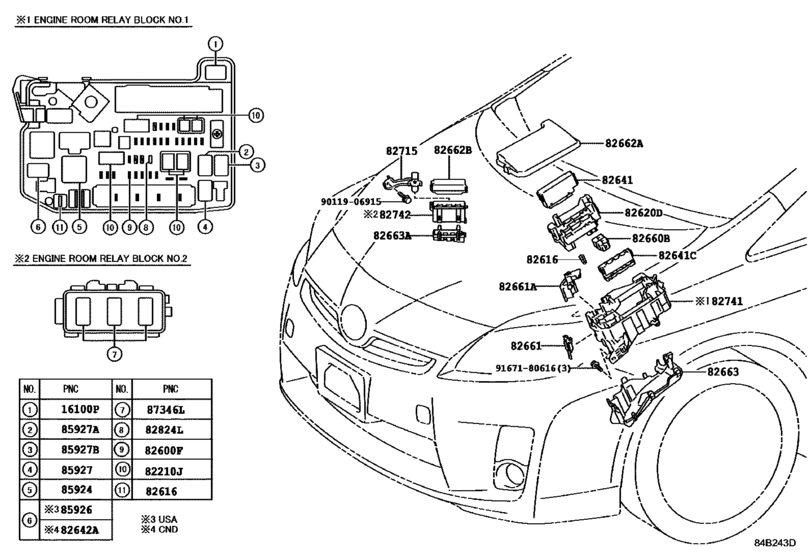

Switch & Relay & Computer ([12.2009 - ] ENGINE ROOM (0912- )) Diagram Toyota PRIUS
- Year
- 2009 - 2010
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- E
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 12.2009
- To
- 10.2010
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100P
|
16100P
90987-02027 Relay[12.2009 - 10.2010] 2ZRFXE..ZVW35 |
90987-02027 |
from US $44.54 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[12.2009 - 10.2010] ZVW35 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08297 Fusible Link[12.2009 - 10.2010] ZVW35 125A |
90982-08297 |
US $8.32 |
||
|
82210J
|
82210J
90982-08301 Fusible Link[12.2009 - 10.2010] ZVW35 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82210J
|
82210J
90982-08304 Fusible Link[12.2009 - 10.2010] ZVW35 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[12.2009 - 10.2010] ZVW35 30A,TERMINAL:FEMALE |
90982-08306 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08308 Fusible Link[12.2009 - 10.2010] ZVW35 40A-30A-30A,FEMALE |
90982-08308 |
from US $6.56 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2009 - 10.2010] ZVW35 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2009 - 10.2010] ZVW35 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[12.2009 - 10.2010] ZVW35 |
82616-58010 |
from US $2.40 |
||
|
82620D
|
82620D
82620-75010 Block Assy, Fusible LinkFUSIBLE LINK [12.2009 - 10.2010] ZVW35 |
82620-75010 |
US $57.02 |
||
|
82641
|
82641
82641-47031 Relay, Integration No.1[12.2009 - 10.2010] ZVW35 |
82641-47031 |
US $128.76 |
||
|
82641C
|
82641C
82641-71010 Relay, Integration No.1[12.2009 - 10.2010] ZVW35 |
82641-71010 |
from US $151.13 |
||
|
82660B
|
82660B
82660-75010 Block Assy, RelayRELAY [12.2009 - 10.2010] ZVW35 |
82660-75010 |
from US $11.50 |
||
|
82661
|
82661
82661-47040 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [12.2009 - 10.2010] ZVW35 |
82661-47040 |
US $2.75 |
||
|
82661A
|
82661A
82661-75010 Cover, Relay Block, No.2RELAY BLOCK, NO.2 [12.2009 -] ZVW35 |
82661-75010 |
US $5.92 |
||
|
82662A
|
82662A
82662-47110 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [12.2009 -] ZVW35 |
82662-47110 |
US $38.15 |
||
|
82662B
|
82662B
82662-47120 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [12.2009 -] ZVW35 |
82662-47120 |
US $11.65 |
||
|
82663
|
82663
82663-75010 Cover, Relay Block, LowerRELAY BLOCK, LOWER [12.2009 - 10.2010] ZVW35 |
82663-75010 |
US $39.06 |
||
|
82663A
|
82663A
82663-47060 Cover, Relay Block, Lower, No.2RELAY BLOCK, LOWER, NO.2 [12.2009 - 10.2010] ZVW35 |
82663-47060 |
US $8.74 |
||
|
82715
|
82715
82715-47580
Bracket,wiring Harness Clamp
[12.2009 -] ZVW35 |
82715-47580 |
— | ||
|
82741
|
82741
82741-75010 Block, Engine Room RelayENGINE ROOM RELAY [12.2009 - 10.2010] ZVW35 |
82741-75010 |
US $75.24 |
||
|
82742
|
82742
82742-47030
Block, Engine Room Relay, No.2
[12.2009 - 10.2010] ZVW35 |
82742-47030 |
— | ||
|
82824L
|
82824L
82824-41010 Pin, Short[12.2009 - 10.2010] ZVW35 |
82824-41010 |
from US $3.24 |
||
|
85924
|
85924
90987-02025 Relay[12.2009 -] ZVW35 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[12.2009 -] ZVW35..USA |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02027 Relay[12.2009 - 10.2010] ZVW35 |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[12.2009 -] ZVW35 |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02027 Relay[12.2009 -] ZVW35 |
90987-02027 |
from US $44.54 |
||
|
87346L
|
87346L
90987-02025 Relay[12.2009 -] ZVW35 |
90987-02025 |
from US $44.54 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.66 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
