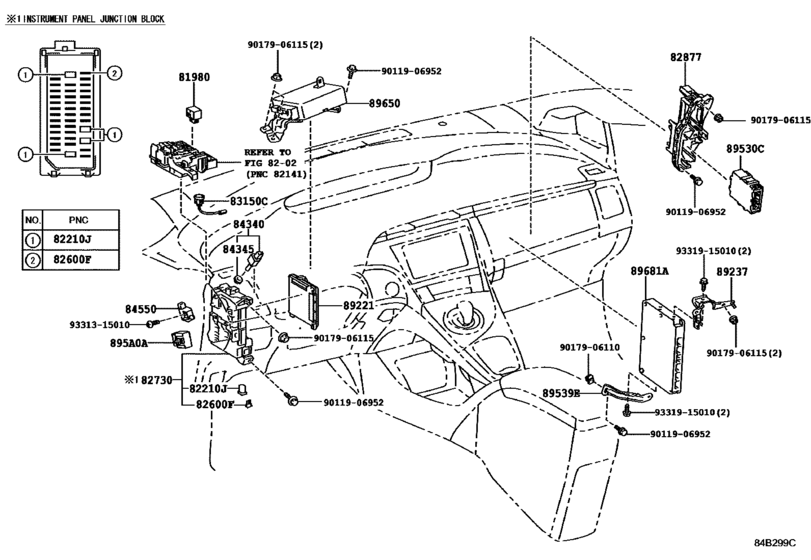

Switch & Relay & Computer ([12.2009 - ] COWL (0912- )) Diagram Toyota PRIUS
- Year
- 2009 - 2010
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- E
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 12.2009
- To
- 10.2010
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0A
|
895A0A
895A0-20020 Computer Assy, Stop Lamp ControlSTOP LAMP CONTROL [12.2009 -] ZVW35 |
895A0-20020 |
US $48.75 |
||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[12.2009 -] ZVW35 |
81980-46010 |
from US $56.34 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[12.2009 - 10.2010] ZVW35 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08297 Fusible Link[12.2009 - 10.2010] ZVW35 125A |
90982-08297 |
US $8.32 |
||
|
82210J
|
82210J
90982-08301 Fusible Link[12.2009 - 10.2010] ZVW35 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82210J
|
82210J
90982-08304 Fusible Link[12.2009 - 10.2010] ZVW35 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[12.2009 - 10.2010] ZVW35 30A,TERMINAL:FEMALE |
90982-08306 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08308 Fusible Link[12.2009 - 10.2010] ZVW35 40A-30A-30A,FEMALE |
90982-08308 |
from US $6.56 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2009 - 10.2010] ZVW35 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2009 - 10.2010] ZVW35 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2009 - 10.2010] ZVW35 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82730
|
82730
82730-47450
Block Assy, Instrument Panel Junction
[12.2009 - 10.2010] ZVW35 |
82730-47450 |
— | ||
|
82877
|
82877
82877-47030
Box, Computer Integration, Rh
[12.2009 - 10.2010] ZVW35 |
82877-47030 |
— | ||
|
83150C
|
83150C
83150-47080-B0 Indicator Assy[12.2009 -] ZVW35 MIST GRAY,TRIM6# |
83150-47080-B0 |
US $101.92 |
||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[12.2009 - 10.2010] ZVW35 |
84340-69075 |
from US $28.37 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[12.2009 -] ZVW35 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-47010 Switch Assy, Parking BrakePARKING BRAKE [12.2009 - 10.2010] ZVW35 |
84550-47010 |
US $30.58 |
||
|
89221
|
89221
89220-47060
Computer, Multiplex Network Body
[12.2009 -] ZVW35..USA |
89220-47060 |
— | ||
|
89237
|
89237
896B7-47010
Bracket, Computer Unit
[12.2009 -] ZVW35 |
896B7-47010 |
— | ||
|
89530C
|
89530C
89535-47040
Computer Assy, Transmission Control
[12.2009 -] ZVW35 |
89535-47040 |
— | ||
|
89539E
|
89539E
896B8-47010
Bracket, Computer
[12.2009 -] ZVW35 |
896B8-47010 |
— | ||
|
89650
|
89650
89650-47300
Computer Assy, Power Steering
[12.2009 -] ZVW35 |
89650-47300 |
— | ||
|
89681A
|
89681A
89681-47150
Computer, Power Management Control
[12.2009 - 01.2010] ZVW35 |
89681-47150 |
— | ||
| replacement | |||||
|
89681A
|
89681A
89681-47152
Computer, Power Management Control
[12.2009 - 01.2010] ZVW35 |
89681-47152 |
— | ||
|
89681A
|
89681A
89681-47151 Computer, Power Management ControlPOWER MANAGEMENT CONTROL [01.2010 - 10.2010] ZVW35 |
89681-47151 |
US $1,514.24 |
||
| replacement | |||||
|
89681A
|
89681A
89681-47152
Computer, Power Management Control
[01.2010 - 10.2010] ZVW35 |
89681-47152 |
— | ||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
