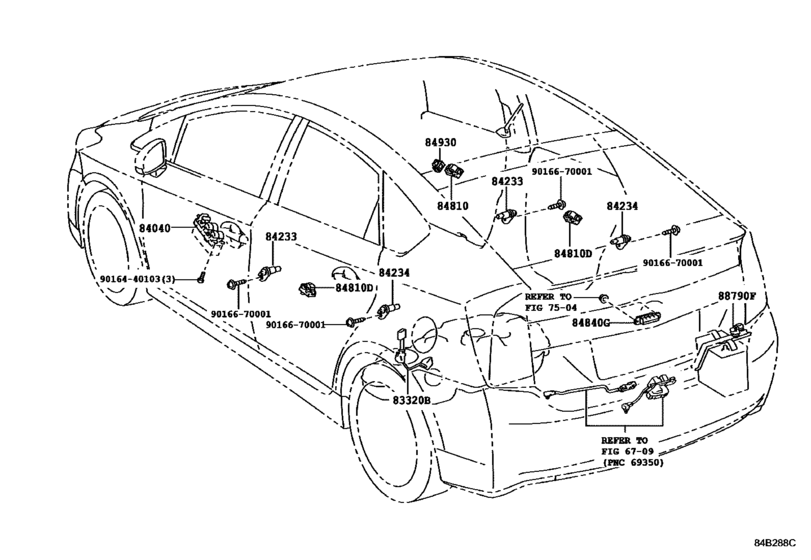

Switch & Relay & Computer ([12.2009 - ] DOOR,ROOF,FLOOR & LUGGAGE (0912- )) Diagram Toyota PRIUS
- Year
- 2009 - 2010
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- E
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 12.2009
- To
- 10.2010
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320B
|
83320B
83320-47050 Gage Assy, Fuel SenderFUEL SENDER [12.2009 - 10.2010] ZVW35 |
83320-47050 |
US $51.25 |
||
| replacement | |||||
|
83320B
|
83320B
83320-47080 Gage Assy, Fuel Sender[12.2009 - 10.2010] ZVW35 |
83320-47080 |
from US $45.75 |
||
|
84040
|
84040
84040-33100 Master Switch Assy,multiplex Network[12.2009 -] ZVW35 |
84040-33100 |
from US $334.04 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[12.2009 -] ZVW35 |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[12.2009 -] ZVW35 |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[12.2009 -] ZVW35 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[12.2009 -] ZVW35 |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[12.2009 -] ZVW35 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[12.2009 -] ZVW35 |
84810-06090 |
US $211.68 |
||
|
84840G
|
84840G
84840-28040 Switch Assy, Back Door Opener[12.2009 -] ZVW35 |
84840-28040 |
from US $59.38 |
||
|
84930
|
84930
84930-12250 Switch Assy, Door Control[12.2009 -] ZVW35 |
84930-12250 |
US $31.32 |
||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[12.2009 -] ZVW35 |
88790-22131 |
US $33.55 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
