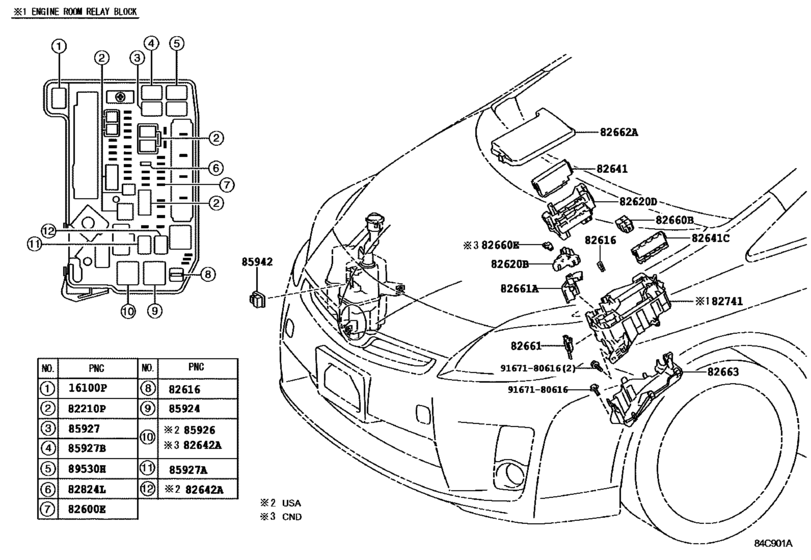

Switch & Relay & Computer ([01.2012 - ] ENGINE ROOM (1201- )) Diagram Toyota PRIUS
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 01.2012
- To
- 06.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100P
|
16100P
90987-02027 Relay[01.2012 - 06.2015] 2ZRFXE..ZVW35 |
90987-02027 |
from US $44.54 |
||
|
82210P
|
82210P
90982-08297 Fusible Link[01.2012 - 06.2015] ZVW35 125A |
90982-08297 |
US $8.32 |
||
|
82210P
|
82210P
90982-08300 Fusible Link[01.2012 - 06.2015] ZVW35 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[01.2012 - 06.2015] ZVW35 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210P
|
82210P
90982-08308 Fusible Link[01.2012 - 06.2015] ZVW35 40A-30A-30A,FEMALE |
90982-08308 |
from US $6.56 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[01.2012 - 06.2015] ZVW35 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[01.2012 - 06.2015] ZVW35 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[01.2012 - 06.2015] ZVW35 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[01.2012 - 06.2015] ZVW35 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[01.2012 - 06.2015] ZVW35 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[01.2012 - 06.2015] ZVW35 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[01.2012 - 06.2015] ZVW35 |
82616-58010 |
from US $2.40 |
||
|
82620B
|
82620B
82620-47060 Block Assy, Fusible Link[01.2012 - 06.2015] ZVW35 |
82620-47060 |
US $9.76 |
||
|
82620D
|
82620D
82620-75010 Block Assy, Fusible LinkFUSIBLE LINK [01.2012 - 06.2015] ZVW35 |
82620-75010 |
US $57.02 |
||
|
82641
|
82641
82641-47090
Relay, Integration No.1
[01.2012 - 06.2015] ZVW35 |
82641-47090 |
— | ||
|
82641C
|
82641C
82641-71010 Relay, Integration No.1[01.2012 - 06.2015] ZVW35 |
82641-71010 |
from US $151.13 |
||
|
82642A
|
82642A
90987-02027 Relay[01.2012 - 06.2015] ZVW35..USA |
90987-02027 |
from US $44.54 |
||
|
82660B
|
82660B
82660-75010 Block Assy, RelayRELAY [01.2012 - 06.2015] ZVW35 |
82660-75010 |
US $11.50 |
||
|
82661
|
82661
82661-47040 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [01.2012 - 06.2015] ZVW35 |
82661-47040 |
US $2.75 |
||
|
82661A
|
82661A
82661-75010 Cover, Relay Block, No.2RELAY BLOCK, NO.2 [01.2012 - 06.2015] ZVW35 |
82661-75010 |
US $5.92 |
||
|
82662A
|
82662A
82662-47160 Cover, Relay Block, Upper, No.1[01.2012 - 11.2012] ZVW35 |
82662-47160 |
US $38.15 |
||
|
82662A
|
82662A
82662-47161 Cover, Relay Block, Upper, No.1[11.2012 - 06.2015] ZVW35 |
82662-47161 |
US $31.74 |
||
|
82663
|
82663
82663-75010 Cover, Relay Block, LowerRELAY BLOCK, LOWER [01.2012 - 06.2015] ZVW35 |
82663-75010 |
US $39.06 |
||
|
82741
|
82741
82741-47020 Block, Engine Room Relay[01.2012 - 06.2015] ZVW35 |
82741-47020 |
US $81.40 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[01.2012 - 06.2015] ZVW35 |
82824-41010 |
from US $3.24 |
||
|
85924
|
85924
90987-02025 Relay[01.2012 - 06.2015] ZVW35 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[01.2012 - 06.2015] ZVW35..USA; ZVW35..(G,S)..USA DAYTIME RUNNING LIGHT SYSTEM-WITH(HI-BEAM REDUCTION) |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02027 Relay[01.2012 - 06.2015] ZVW35 |
90987-02027 |
from US $44.54 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[01.2012 - 06.2015] ZVW35 |
90987-04004 |
from US $42.71 |
||
|
85927B
|
85927B
90987-02027 Relay[01.2012 - 06.2015] ZVW35 |
90987-02027 |
from US $44.54 |
||
|
89530H
|
89530H
90987-02027 Relay[01.2012 - 06.2015] ZVW35 |
90987-02027 |
from US $44.54 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
