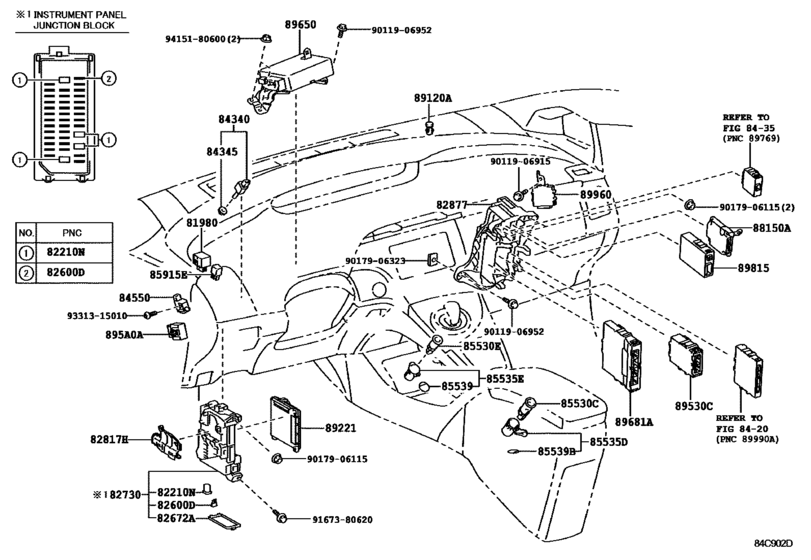

Switch & Relay & Computer ([01.2012 - ] COWL (1201- )) Diagram Toyota PRIUS
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 01.2012
- To
- 06.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0A
|
895A0A
895A0-20020 Computer Assy, Stop Lamp ControlSTOP LAMP CONTROL [01.2012 - 06.2015] ZVW35 |
895A0-20020 |
US $48.75 |
||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[01.2012 - 06.2015] ZVW35 |
81980-46010 |
from US $56.34 |
||
|
82210N
|
82210N
90982-08306 Fusible Link[01.2012 - 06.2015] ZVW35 30A,TERMINAL:FEMALE |
90982-08306 |
from US $6.24 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[01.2012 - 06.2015] ZVW35 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[01.2012 - 06.2015] ZVW35 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[01.2012 - 06.2015] ZVW35 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[01.2012 - 06.2015] ZVW35 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[01.2012 - 06.2015] ZVW35 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[01.2012 - 06.2015] ZVW35 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672A
|
82672A
82672-47130 Cover, Junction Block[01.2012 - 06.2015] ZVW35 |
82672-47130 |
US $3.93 |
||
|
82730
|
82730
82730-47510
Block Assy, Instrument Panel Junction
[01.2012 - 06.2015] ZVW35 |
82730-47510 |
— | ||
|
82817H
|
82817H
82817-47890
Protector, Wiring Harness
[01.2012 - 06.2015] ZVW35 |
82817-47890 |
— | ||
|
82877
|
82877
82877-47010
Box, Computer Integration, Rh
[01.2012 - 06.2015] ZVW35 |
82877-47010 |
— | ||
|
84340
|
84340
84340-59645 Switch Assy, Stop Lamp[01.2012 - 06.2015] ZVW35 |
84340-59645 |
US $43.17 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[01.2012 - 06.2015] ZVW35 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-47010 Switch Assy, Parking BrakePARKING BRAKE [01.2012 - 06.2015] ZVW35 |
84550-47010 |
US $30.58 |
||
|
85530C
|
85530C
85530-42010 Socket Assy, Power Outlet, No.1[01.2012 - 06.2015] ZVW35 |
85530-42010 |
from US $26.60 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[01.2012 - 06.2015] ZVW35 |
85530-42010 |
from US $26.60 |
||
|
85535D
|
85535D
85535-60100-C0 Cover, Power Outlet Socket, No.1 (Black)[01.2012 - 06.2015] ZVW35 BLACK |
85535-60100-C0 |
US $8.32 |
||
|
85535E
|
85535E
85535-60100-C0 Cover, Power Outlet Socket, No.1 (Black)[01.2012 - 06.2015] ZVW35 BLACK |
85535-60100-C0 |
US $8.32 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[01.2012 - 06.2015] ZVW35 |
85539-60020 |
US $1.41 |
||
|
85539B
|
85539B
85539-60020 Label, Power Outlet Notice[01.2012 - 06.2015] ZVW35 |
85539-60020 |
US $1.41 |
||
|
85915E
|
85915E
90987-02027 Relay[01.2012 - 06.2015] ZVW35 |
90987-02027 |
from US $44.54 |
||
|
89120A
|
89120A
89121-30010 Sensor, Automatic Light Control[01.2012 - 06.2015] ZVW35 |
89121-30010 |
US $155.52 |
||
|
89221
|
89221
89220-4E050
Computer, Multiplex Network Body
[01.2012 - 06.2015] ZVW35..(L,S)..USA PUERTO RICO & GUAM & SAIPAN SPEC |
89220-4E050 |
— | ||
|
89221
|
89221
89220-4E080
Computer, Multiplex Network Body
[01.2012 - 06.2015] ZVW35..(L,S)..USA HAWAII SPEC |
89220-4E080 |
— | ||
|
89221
|
89221
89220-4E110
Computer, Multiplex Network Body
[01.2012 - 06.2015] ZVW35..(L,S)..USA |
89220-4E110 |
— | ||
|
89530C
|
89530C
89535-76020 Computer Assy, Transmission Control[01.2012 - 06.2013] ZVW35 |
89535-76020 |
US $795.20 |
||
|
89530C
|
89530C
89535-76021 Computer Assy, Transmission Control[07.2013 - 06.2015] ZVW35 |
89535-76021 |
US $502.24 |
||
|
89650
|
89650
89650-47470
Computer Assy, Power Steering
[01.2012 - 09.2012] ZVW35 |
89650-47470 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-47471
Computer Assy, Power Steering
[01.2012 - 09.2012] ZVW35 |
89650-47471 |
— | ||
|
89650
|
89650
89650-47471
Computer Assy, Power Steering
[10.2012 - 10.2013] ZVW35 |
89650-47471 |
— | ||
|
89650
|
89650
89650-47472
Computer Assy, Power Steering
[10.2013 - 06.2015] ZVW35 |
89650-47472 |
— | ||
|
89681A
|
89681A
89681-47040
Computer, Power Management Control
[01.2012 - 04.2012] ZVW35 |
89681-47040 |
— | ||
|
89681A
|
89681A
89681-47041
Computer, Power Management Control
[04.2012 - 08.2012] ZVW35 |
89681-47041 |
— | ||
|
89681A
|
89681A
89681-47042
Computer, Power Management Control
[08.2012 - 04.2013] ZVW35 |
89681-47042 |
— | ||
| replacement | |||||
|
89681A
|
89681A
89681-47043
Computer, Power Management Control
[08.2012 - 04.2013] ZVW35 |
89681-47043 |
— | ||
|
89681A
|
89681A
89681-47043
Computer, Power Management Control
[04.2013 - 10.2013] ZVW35 |
89681-47043 |
— | ||
|
89681A
|
89681A
89681-47520
Computer, Power Management Control
[10.2013 - 06.2015] ZVW35 |
89681-47520 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.66 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.76 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $0.96 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
