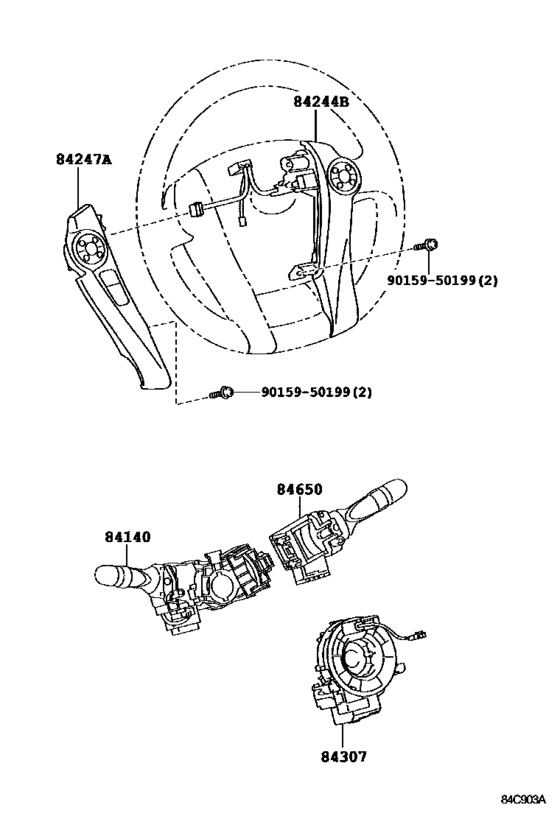

Switch & Relay & Computer ([01.2012 - ] STEERING (1201- )) Diagram Toyota PRIUS
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 01.2012
- To
- 06.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-47151
Switch Assy, Headlamp Dimmer
[01.2012 - 06.2015] ZVW35..(L,S)..USA |
84140-47151 |
— | ||
|
84244B
|
84244B
84244-47100-B0 Switch, Steering Pad, Rh[01.2012 - 11.2013] ZVW35..G,S ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47100-B0 |
US $320.32 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[01.2012 - 11.2013] ZVW35..G,S ORNAMENT SILVER,TRIM1#,4#,6# |
84244-47101-B0 |
US $373.90 |
||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[11.2013 - 06.2015] ZVW35..G,S ORNAMENT SILVER,TRIM1#,6# |
84244-47101-B0 |
US $373.90 |
||
|
84247A
|
84247A
84247-47080-B0 Switch, Steering Pad, Lh[01.2012 - 11.2013] ZVW35..G ORNAMENT SILVER,TRIM1#,4#,6#; ZVW35..CND PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&AUDIO-AVN SDARS *BT USB JBL 8SPEA KER,ORNAMENT SILVER,TRIM1#,4#,6#; ZVW35..S AUDIO-*DA SDARS *BT USB 6SPEAKER,ORNAMENT SILVER,TRIM1#,4#, |
84247-47080-B0 |
US $192.19 |
||
| replacement | |||||
|
84247A
|
84247A
84247-47081-B0 Switch, Steering Pad, Lh[01.2012 - 11.2013] ZVW35..G ORNAMENT SILVER,TRIM1#,4#,6#; ZVW35..CND PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&AUDIO-AVN SDARS *BT USB JBL 8SPEA KER,ORNAMENT SILVER,TRIM1#,4#,6#; ZVW35..S AUDIO-*DA SDARS *BT USB 6SPEAKER,ORNAMENT SILVER,TRIM1#,4#, |
84247-47081-B0 |
US $225.39 |
||
|
84247A
|
84247A
84247-47081-B0 Switch, Steering Pad, Lh[11.2013 - 06.2015] ZVW35..G ORNAMENT SILVER,TRIM1#,6#; ZVW35..CND PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&AUDIO-AVN SDARS *BT USB JBL 8SPEA KER,ORNAMENT SILVER,TRIM1#,6#; ZVW35..S AUDIO-*DA SDARS *BT USB 6SPEAKER,ORNAMENT SILVER,TRIM1#,6# |
84247-47081-B0 |
US $225.39 |
||
|
84247A
|
84247A
84247-47090-B0
Switch, Steering Pad, Lh
[01.2012 - 11.2013] ZVW35..S ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47090-B0 |
— | ||
| replacement | |||||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[01.2012 - 11.2013] ZVW35..S ORNAMENT SILVER,TRIM1#,4#,6# |
84247-47091-B0 |
— | ||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[11.2013 - 06.2015] ZVW35..S ORNAMENT SILVER,TRIM1#,6# |
84247-47091-B0 |
— | ||
|
84307
|
84307
84307-47020 Cable Sub-Assy, Spiral[01.2012 - 06.2015] ZVW35 |
84307-47020 |
US $380.93 |
||
| replacement | |||||
|
84307
|
84307
84307-47021 Cable Sub-Assy, Spiral[01.2012 - 06.2015] ZVW35 |
84307-47021 |
from US $359.91 |
||
|
84650
|
84650
84652-76010 Switch Assy, Windshield Wiper[01.2012 - 06.2015] ZVW35..(G,S)..USA |
84652-76010 |
US $97.55 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
