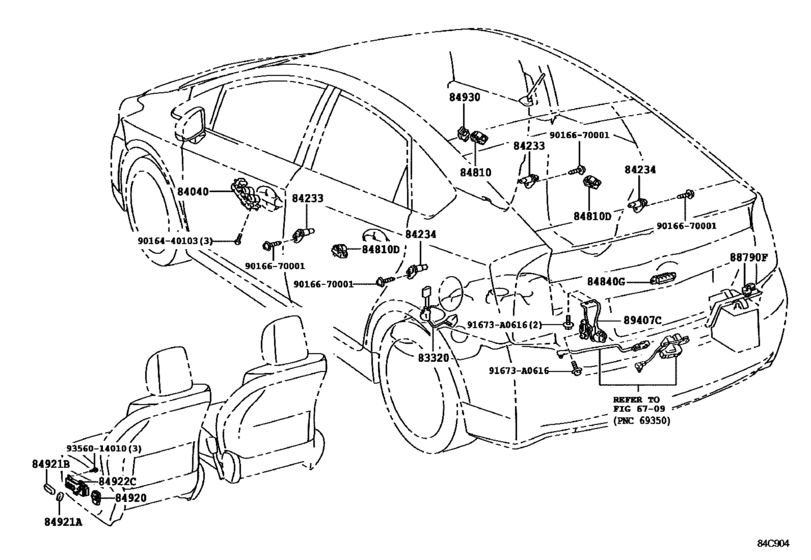

Switch & Relay & Computer ([01.2012 - ] DOOR,ROOF,FLOOR & LUGGAGE (1201- )) Diagram Toyota PRIUS
- Year
- 2012 - 2015
- Sales region
- U.S.A.
- Frame
- ZVW35
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PRIUS (PLUG-IN HBD)
- From
- 01.2012
- To
- 06.2015
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-47080 Gage Assy, Fuel Sender[01.2012 - 06.2015] ZVW35 |
83320-47080 |
from US $45.75 |
||
|
84040
|
84040
84040-33100 Master Switch Assy,multiplex Network[01.2012 - 08.2014] ZVW35 |
84040-33100 |
from US $334.04 |
||
|
84040
|
84040
84040-60160
Master Switch Assy,multiplex Network
[08.2014 - 06.2015] ZVW35 |
84040-60160 |
— | ||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[01.2012 - 06.2015] ZVW35 |
84231-60070 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[01.2012 - 06.2015] ZVW35 |
84231-60070 |
from US $10.56 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[01.2012 - 06.2015] ZVW35 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[01.2012 - 06.2015] ZVW35 |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[01.2012 - 06.2015] ZVW35 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[01.2012 - 06.2015] ZVW35 |
84810-06090 |
US $211.68 |
||
|
84840G
|
84840G
84840-28030 Switch Assy, Luggage Compartment Door Opening[01.2012 - 06.2015] ZVW35..L,S |
84840-28030 |
from US $38.91 |
||
|
84840G
|
84840G
84840-28040 Switch Assy, Back Door Opener[01.2012 - 06.2015] ZVW35..G; ZVW35..S SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON) |
84840-28040 |
from US $59.38 |
||
|
84930
|
84930
84930-12250 Switch Assy, Door Control[01.2012 - 06.2015] ZVW35 |
84930-12250 |
from US $31.32 |
||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[01.2012 - 06.2015] ZVW35 |
88790-22131 |
US $33.55 |
||
|
91673A0616
|
91673A0616
91673-A0616 BOLT, FLANGE |
91673-A0616 |
US $0.96 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
