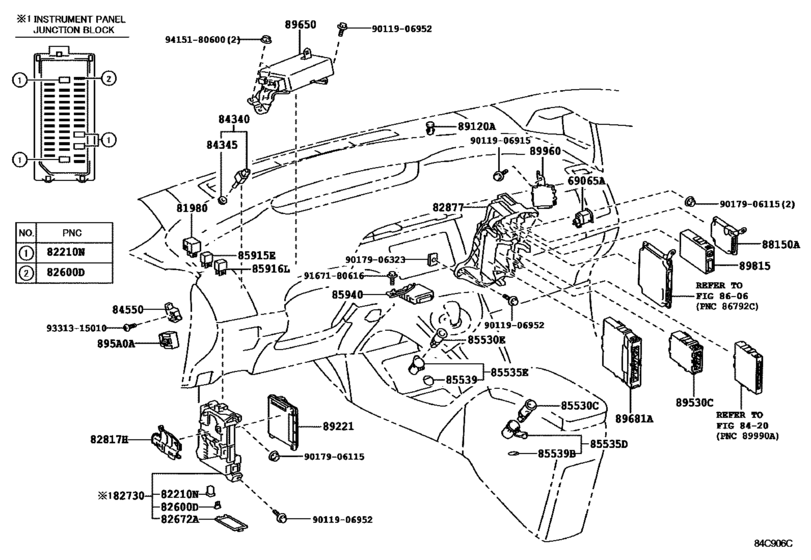

Switch & Relay & Computer ([05.2012 - ] COWL (1205- )LHD) Diagram Toyota PRIUS
- Year
- 2012 - 2016
- Sales region
- Europe
- Frame
- ZVW35
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS (PLUG-IN HBD)
- From
- 05.2012
- To
- 04.2016
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0A
|
895A0A
895A0-20020 Computer Assy, Stop Lamp ControlSTOP LAMP CONTROL [05.2012 -] ZVW35..LHD EMERGENCY BRAKE SIGNAL-WITHOUT |
895A0-20020 |
US $48.75 |
||
|
895A0A
|
895A0A
895A0-30010 Relay Assy, Stop Lamp Control[05.2012 -] ZVW35..LHD |
895A0-30010 |
US $50.09 |
||
|
69065A
|
69065A
69065-12460 Cylinder Sub-Assy, Air Bag Cut Off Switch[07.2012 -] ZVW35 |
69065-12460 |
US $38.88 |
||
|
69065A
|
69065A
69065-52050 Cylinder Sub-Assy, Air Bag Cut Off Sw[05.2012 - 06.2012] ZVW35 |
69065-52050 |
US $42.81 |
||
|
81980
|
81980
81980-46010 Flasher Assy, Turn Signal[05.2012 -] ZVW35 |
81980-46010 |
from US $56.34 |
||
|
82210N
|
82210N
90982-08306 Fusible Link[05.2012 -] ZVW35 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[05.2012 -] ZVW35 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[05.2012 -] ZVW35 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[05.2012 -] ZVW35 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[05.2012 -] ZVW35 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[05.2012 -] ZVW35 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[05.2012 -] ZVW35 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82672A
|
82672A
82672-47130 Cover, Junction Block[05.2012 -] ZVW35..LHD |
82672-47130 |
US $3.93 |
||
|
82730
|
82730
82730-47510
Block Assy, Instrument Panel Junction
[05.2012 -] ZVW35..LHD |
82730-47510 |
— | ||
|
82817H
|
82817H
82817-47890
Protector, Wiring Harness
[05.2012 -] ZVW35..LHD |
82817-47890 |
— | ||
|
82877
|
82877
82877-47010
Box, Computer Integration, Rh
[05.2012 -] ZVW35..LHD |
82877-47010 |
— | ||
|
84340
|
84340
84340-59645 Switch Assy, Stop Lamp[05.2012 -] ZVW35 |
84340-59645 |
from US $34.69 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[05.2012 -] ZVW35 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-47010 Switch Assy, Parking BrakePARKING BRAKE [05.2012 - 04.2016] ZVW35 |
84550-47010 |
US $30.58 |
||
|
85530C
|
85530C
85530-42010 Socket Assy, Power Outlet, No.1[05.2012 - 04.2016] ZVW35 |
85530-42010 |
from US $26.60 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[05.2012 -] ZVW35 |
85530-42010 |
from US $26.60 |
||
|
85535D
|
85535D
85535-60100-C0 Cover, Power Outlet Socket, No.1 (Black)[05.2012 - 04.2016] ZVW35 BLACK |
85535-60100-C0 |
US $8.32 |
||
|
85535E
|
85535E
85535-60100-C0 Cover, Power Outlet Socket, No.1 (Black)[05.2012 - 04.2016] ZVW35 BLACK |
85535-60100-C0 |
US $8.32 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[05.2012 -] ZVW35 |
85539-60020 |
US $1.41 |
||
|
85539B
|
85539B
85539-60020 Label, Power Outlet Notice[05.2012 -] ZVW35 |
85539-60020 |
US $1.41 |
||
|
85915E
|
85915E
90987-02027 Relay[05.2012 -] ZVW35 |
90987-02027 |
from US $44.54 |
||
|
85916L
|
85916L
90987-02027 Relay[05.2012 -] ZVW35 |
90987-02027 |
from US $44.54 |
||
|
85940
|
85940
85940-47030 Relay Assy, Windshield Wiper[05.2012 - 07.2015] ZVW35..LHD SMART ENTRY-WITH(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER; ZVW35..LHD SMART ENTRY-WITH(FRONT & BACK DOOR)&AUDIO-AVN *BT USB JBL 8SPEAKER |
85940-47030 |
US $154.34 |
||
|
88150A
|
88150A
88150-47061
Computer Assy, Driving Support
[10.2012 - 07.2015] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
88150-47061 |
— | ||
|
88150A
|
88150A
88150-47080
Computer Assy, Driving Support
[05.2012 - 10.2012] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
88150-47080 |
— | ||
|
89120A
|
89120A
89121-30010 Sensor, Automatic Light Control[05.2012 -] ZVW35 |
89121-30010 |
US $155.52 |
||
|
89221
|
89221
89220-4E140
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD SLOVENIA SPEC&UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)& HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
89220-4E140 |
— | ||
|
89221
|
89221
89220-4E150
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD SLOVENIA SPEC&UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)& HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATI C ANTI-GLARE |
89220-4E150 |
— | ||
|
89221
|
89221
89220-4E160
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD SLOVENIA SPEC&HEADLAMP-LED |
89220-4E160 |
— | ||
|
89221
|
89221
89220-4E170
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD SLOVENIA SPEC&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT |
89220-4E170 |
— | ||
|
89221
|
89221
89220-4E180
Computer, Multiplex Network Body
[05.2012 -] ZVW35..LHD SLOVENIA SPEC |
89220-4E180 |
— | ||
|
89221
|
89221
89220-4E190
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD SLOVENIA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT |
89220-4E190 |
— | ||
|
89221
|
89221
89220-4E200
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD NORDIC SPEC&UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)&HE ADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
89220-4E200 |
— | ||
|
89221
|
89221
89220-4E210
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD NORDIC SPEC&UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)&HE ADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
89220-4E210 |
— | ||
|
89221
|
89221
89220-4E220
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD NORDIC SPEC&HEADLAMP-LED |
89220-4E220 |
— | ||
|
89221
|
89221
89220-4E230
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD NORDIC SPEC&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT |
89220-4E230 |
— | ||
|
89221
|
89221
89220-4E240
Computer, Multiplex Network Body
[05.2012 -] ZVW35..LHD NORDIC SPEC |
89220-4E240 |
— | ||
|
89221
|
89221
89220-4E250
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD NORDIC SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT |
89220-4E250 |
— | ||
|
89221
|
89221
89220-4E310
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)&HEADLAMP-LED&I NSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
89220-4E310 |
— | ||
|
89221
|
89221
89220-4E320
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)&HEADLAMP-LED&D AYTIME RUNNING LIGHT SYSTEM-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
89220-4E320 |
— | ||
|
89221
|
89221
89220-4E330
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD HEADLAMP-LED |
89220-4E330 |
— | ||
|
89221
|
89221
89220-4E340
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT |
89220-4E340 |
— | ||
|
89221
|
89221
89220-4E350
Computer, Multiplex Network Body
[05.2012 -] ZVW35..LHD |
89220-4E350 |
— | ||
|
89221
|
89221
89220-4E360
Computer, Multiplex Network Body
[05.2012 - 07.2015] ZVW35..LHD DAYTIME RUNNING LIGHT SYSTEM-WITHOUT |
89220-4E360 |
— | ||
|
89530C
|
89530C
89535-76020 Computer Assy, Transmission Control[05.2012 - 06.2013] ZVW35 |
89535-76020 |
US $795.20 |
||
|
89530C
|
89530C
89535-76021 Computer Assy, Transmission Control[07.2013 -] ZVW35 |
89535-76021 |
US $502.24 |
||
|
89650
|
89650
89650-47490
Computer Assy, Power Steering
[05.2012 - 09.2012] ZVW35..LHD |
89650-47490 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-47491
Computer Assy, Power Steering
[05.2012 - 09.2012] ZVW35..LHD |
89650-47491 |
— | ||
|
89650
|
89650
89650-47491
Computer Assy, Power Steering
[10.2012 - 10.2013] ZVW35..LHD |
89650-47491 |
— | ||
|
89650
|
89650
89650-47492
Computer Assy, Power Steering
[10.2013 -] ZVW35..LHD |
89650-47492 |
— | ||
|
89681A
|
89681A
89681-47060
Computer, Power Management Control
[05.2012 - 01.2013] ZVW35 |
89681-47060 |
— | ||
|
89681A
|
89681A
89681-47061
Computer, Power Management Control
[01.2013 - 04.2013] ZVW35 |
89681-47061 |
— | ||
| replacement | |||||
|
89681A
|
89681A
89681-47062
Computer, Power Management Control
[01.2013 - 04.2013] ZVW35 |
89681-47062 |
— | ||
|
89681A
|
89681A
89681-47062
Computer, Power Management Control
[04.2013 - 10.2013] ZVW35 |
89681-47062 |
— | ||
|
89681A
|
89681A
89681-47530
Computer, Power Management Control
[10.2013 -] ZVW35 |
89681-47530 |
— | ||
|
89815
|
89815
89815-47010 Computer, Seat Belt ControlSEAT BELT CONTROL [05.2012 - 07.2015] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
89815-47010 |
US $569.30 |
||
|
89960
|
89960
89960-47160 Computer Assy, Headlamp Leveling[05.2012 - 07.2015] ZVW35..LHD HEADLAMP-LED |
89960-47160 |
US $298.48 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.76 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
