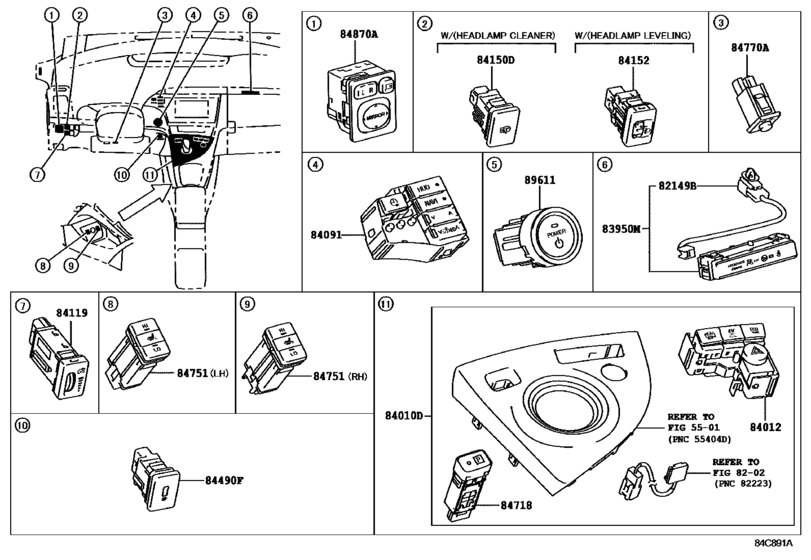

Switch & Relay & Computer ([05.2012 - ] INSTRUMENT PANEL (1205- )LHD) Diagram Toyota PRIUS
- Year
- 2012 - 2016
- Sales region
- Europe
- Frame
- ZVW35
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS (PLUG-IN HBD)
- From
- 05.2012
- To
- 04.2016
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82149B
|
82149B
82149-47020 Wire, Instrument Panel, No.5INSTRUMENT PANEL, NO.5 [05.2012 -] ZVW35..LHD |
82149-47020 |
US $8.01 |
||
|
83950M
|
83950M
83950-47120
Lamp Assy, Telltale
[05.2012 -] ZVW35..LHD |
83950-47120 |
— | ||
|
84010D
|
84010D
84010-47130
Control & Panel Assy, Integration
[05.2012 -] ZVW35..LHD |
84010-47130 |
— | ||
|
84012
|
84012
84012-47120
Control & Panel Sub-Assy, Integration
[05.2012 - 12.2012] ZVW35..LHD |
84012-47120 |
— | ||
| replacement | |||||
|
84012
|
84012
84012-47121
Control & Panel Sub-Assy, Integration
[05.2012 - 12.2012] ZVW35..LHD |
84012-47121 |
— | ||
|
84012
|
84012
84012-47121
Control & Panel Sub-Assy, Integration
[01.2013 -] ZVW35..LHD |
84012-47121 |
— | ||
|
84091
|
84091
84091-47070
Switch Set, Satellite
[05.2012 - 06.2015] ZVW35..LHD EMV & NAVIGATION SYSTEM-AVN |
84091-47070 |
— | ||
|
84091
|
84091
84091-47080
Switch Set, Satellite
[05.2012 -] ZVW35..LHD |
84091-47080 |
— | ||
|
84119
|
84119
84119-42020 Rheostat, Light Control[05.2012 - 01.2015] ZVW35 |
84119-42020 |
from US $56.06 |
||
| replacement | |||||
|
84119
|
84119
84119-42021 Rheostat, Light Control[05.2012 - 01.2015] ZVW35 |
84119-42021 |
US $50.96 |
||
|
84119
|
84119
84119-42021 Rheostat, Light Control[02.2015 -] ZVW35 |
84119-42021 |
US $50.96 |
||
|
84150D
|
84150D
84150-47010 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [05.2012 - 11.2014] ZVW35..LHD HEADLAMP-LED |
84150-47010 |
US $39.60 |
||
| replacement | |||||
|
84150D
|
84150D
84150-47011 Switch Assy, Headlamp Cleaner[05.2012 - 11.2014] ZVW35..LHD HEADLAMP-LED |
84150-47011 |
US $35.96 |
||
|
84150D
|
84150D
84150-47011 Switch Assy, Headlamp Cleaner[12.2014 -] ZVW35..RHD; ZVW35..LHD HEADLAMP-LED |
84150-47011 |
US $35.96 |
||
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[05.2012 - 01.2015] ZVW35..LHD; ZVW35..LHD HEADLAMP-LED |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[05.2012 - 01.2015] ZVW35..LHD; ZVW35..LHD HEADLAMP-LED |
84152-52071 |
US $43.24 |
||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[02.2015 -] ZVW35..LHD; ZVW35..LHD HEADLAMP-LED |
84152-52071 |
US $43.24 |
||
|
84490F
|
84490F
84490-58020 Switch Assy, Ipa Main[05.2012 - 11.2014] ZVW35..LHD AUDIO-AVN *BT USB JBL 8SPEAKER |
84490-58020 |
US $34.36 |
||
| replacement | |||||
|
84490F
|
84490F
84490-58021 Switch Assy, Ipa Main[05.2012 - 11.2014] ZVW35..LHD AUDIO-AVN *BT USB JBL 8SPEAKER |
84490-58021 |
US $34.36 |
||
|
84490F
|
84490F
84490-58021 Switch Assy, Ipa Main[12.2014 -] ZVW35..LHD AUDIO-AVN *BT USB JBL 8SPEAKER |
84490-58021 |
US $34.36 |
||
|
84718
|
84718
84718-47060
Switch, Transmission Shift Main
[05.2012 - 12.2012] ZVW35..LHD |
84718-47060 |
— | ||
| replacement | |||||
|
84718
|
84718
84718-47061
Switch, Transmission Shift Main
[05.2012 - 12.2012] ZVW35..LHD |
84718-47061 |
— | ||
|
84718
|
84718
84718-47061
Switch, Transmission Shift Main
[01.2013 -] ZVW35..LHD |
84718-47061 |
— | ||
|
84751
|
84751
84751-47040 Switch, Seat Heater[05.2012 - 01.2015] ZVW35 RH |
84751-47040 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47042 Switch, Seat Heater[05.2012 - 01.2015] ZVW35 RH |
84751-47042 |
US $55.18 |
||
|
84751
|
84751
84751-47041 Switch, Seat Heater[02.2015 - 03.2015] ZVW35 RH |
84751-47041 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47042 Switch, Seat Heater[02.2015 - 03.2015] ZVW35 RH |
84751-47042 |
US $55.18 |
||
|
84751
|
84751
84751-47042 Switch, Seat Heater[03.2015 -] ZVW35 RH |
84751-47042 |
US $55.18 |
||
|
84751
|
84751
84751-47050 Switch, Seat Heater[05.2012 - 01.2015] ZVW35 LH |
84751-47050 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47052 Switch, Seat Heater[05.2012 - 01.2015] ZVW35 LH |
84751-47052 |
US $55.18 |
||
|
84751
|
84751
84751-47051 Switch, Seat Heater[02.2015 - 03.2015] ZVW35 LH |
84751-47051 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47052 Switch, Seat Heater[02.2015 - 03.2015] ZVW35 LH |
84751-47052 |
US $55.18 |
||
|
84751
|
84751
84751-47052 Switch, Seat Heater[03.2015 -] ZVW35 LH |
84751-47052 |
US $55.18 |
||
|
84770A
|
84770A
84770-48010 Switch Assy, Pre-Collision System Cancel[05.2012 - 06.2015] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
84770-48010 |
US $34.36 |
||
|
84870A
|
84870A
84870-28040 Switch Assy, Outer Mirror[05.2012 -] ZVW35 |
84870-28040 |
US $66.27 |
||
|
89611
|
89611
89611-75043 Switch, Push Start[05.2012 - 03.2016] ZVW35 |
89611-75043 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[05.2012 - 03.2016] ZVW35 |
89611-75044 |
US $210.24 |
||
