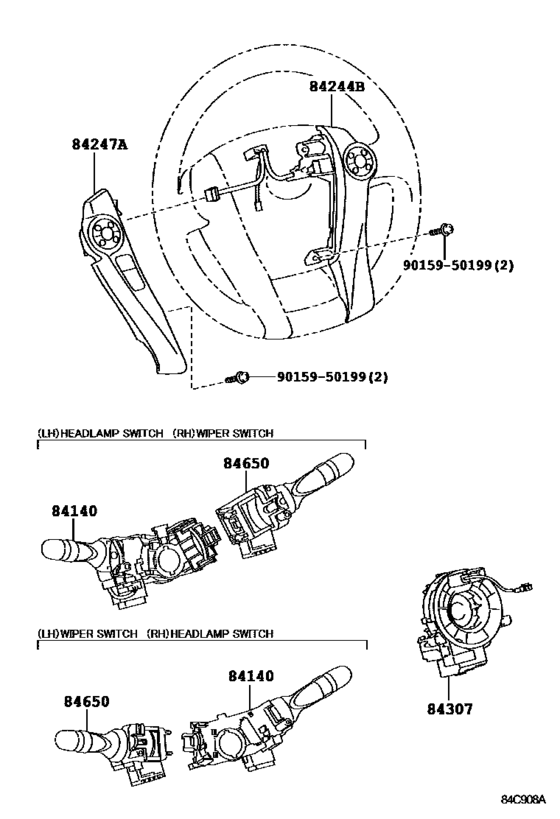

Switch & Relay & Computer ([05.2012 - ] STEERING (1205- )) Diagram Toyota PRIUS
- Year
- 2012 - 2016
- Sales region
- Europe
- Frame
- ZVW35
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS (PLUG-IN HBD)
- From
- 05.2012
- To
- 04.2016
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-42101 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [05.2012 -] ZVW35 |
84140-42101 |
US $90.27 |
||
|
84140
|
84140
84140-42111 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [05.2012 -] ZVW35..LHD UPPER PACKAGE(STEERING:LEATHER)&SMART ENTRY-WITH(FRONT & BACK DOOR)&INSIDE REAR VI EW MIRROR-AUTOMATIC ANTI-GLARE |
84140-42111 |
from US $100.46 |
||
|
84244B
|
84244B
84244-47100-B0 Switch, Steering Pad, Rh[05.2012 - 11.2013] ZVW35 ORNAMENT SILVER,TRIM2#,6# |
84244-47100-B0 |
US $320.32 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[05.2012 - 11.2013] ZVW35 ORNAMENT SILVER,TRIM2#,6# |
84244-47101-B0 |
US $373.90 |
||
|
84244B
|
84244B
84244-47101-B0 Switch, Steering Pad, Rh[11.2013 - 04.2016] ZVW35 ORNAMENT SILVER,TRIM2#,6# |
84244-47101-B0 |
US $373.90 |
||
|
84244B
|
84244B
84244-47110-B0 Switch, Steering Pad, Rh[05.2012 - 11.2013] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&AUDIO-AVN *BT USB JBL 8SPEAKER&EM V & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRIM2#,6# |
84244-47110-B0 |
US $346.53 |
||
| replacement | |||||
|
84244B
|
84244B
84244-47111-B0 Switch, Steering Pad, Rh[05.2012 - 11.2013] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&AUDIO-AVN *BT USB JBL 8SPEAKER&EM V & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRIM2#,6# |
84244-47111-B0 |
US $346.53 |
||
|
84244B
|
84244B
84244-47111-B0 Switch, Steering Pad, Rh[11.2013 - 04.2016] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&AUDIO-AVN *BT USB JBL 8SPEAKER&EM V & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRIM2#,6# |
84244-47111-B0 |
US $346.53 |
||
|
84247A
|
84247A
84247-47080-B0 Switch, Steering Pad, Lh[05.2012 - 11.2013] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&AUDIO-AVN *BT USB JBL 8SPEAKER&EM V & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRIM2#,6#; ZVW35..LHD AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TR |
84247-47080-B0 |
US $192.19 |
||
| replacement | |||||
|
84247A
|
84247A
84247-47081-B0 Switch, Steering Pad, Lh[05.2012 - 11.2013] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&AUDIO-AVN *BT USB JBL 8SPEAKER&EM V & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRIM2#,6#; ZVW35..LHD AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TR |
84247-47081-B0 |
US $225.39 |
||
|
84247A
|
84247A
84247-47081-B0 Switch, Steering Pad, Lh[11.2013 - 07.2015] ZVW35..LHD PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&AUDIO-AVN *BT USB JBL 8SPEAKER&EM V & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TRIM2#,6#; ZVW35..LHD AUDIO-AVN *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ORNAMENT SILVER,TR |
84247-47081-B0 |
US $225.39 |
||
|
84247A
|
84247A
84247-47090-B0
Switch, Steering Pad, Lh
[05.2012 - 11.2013] ZVW35 ORNAMENT SILVER,TRIM2#,6# |
84247-47090-B0 |
— | ||
| replacement | |||||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[05.2012 - 11.2013] ZVW35 ORNAMENT SILVER,TRIM2#,6# |
84247-47091-B0 |
— | ||
|
84247A
|
84247A
84247-47091-B0
Switch, Steering Pad, Lh
[11.2013 - 07.2015] ZVW35 ORNAMENT SILVER,TRIM2#,6# |
84247-47091-B0 |
— | ||
|
84307
|
84307
84307-74020
Cable Sub-Assy, Spiral
[05.2012 -] ZVW35 |
84307-74020 |
— | ||
| replacement | |||||
|
84307
|
84307
8430774021 Cable Sub-Assy, Spiral W/Sensor[05.2012 -] ZVW35 |
8430774021 |
US $462 |
||
|
84650
|
84650
84652-48180 Switch Assy, Windshield WiperWINDSHIELD WIPER [05.2012 -] ZVW35..LHD |
84652-48180 |
from US $94.35 |
||
|
84650
|
84650
84652-48190 Switch Assy, Windshield WiperWINDSHIELD WIPER [05.2012 - 07.2015] ZVW35..LHD SMART ENTRY-WITH(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER; ZVW35..LHD SMART ENTRY-WITH(FRONT & BACK DOOR)&AUDIO-AVN *BT USB JBL 8SPEAKER |
84652-48190 |
US $110.66 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
