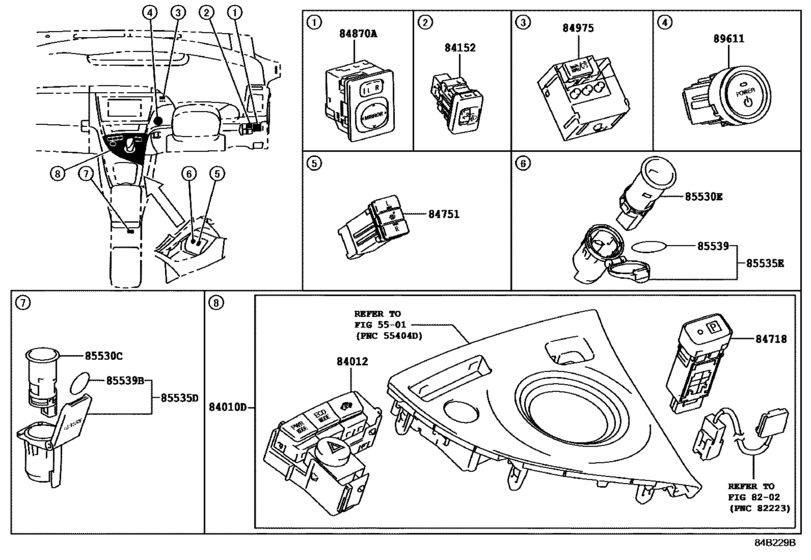

Switch & Relay & Computer ([12.2009 - ] INSTRUMENT PANEL (0912- )RHD) Diagram Toyota PRIUS
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- ZVW35
- grade
- E
- ENGINE
- 2ZRFXE
- TRANSMISSION
- ATM
- Model
- PRIUS (PLUG-IN HBD)
- From
- 12.2009
- To
- 10.2010
- Gear Shift Type
- CVFC
- Vehicle Model
- PRIUS
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84010D
|
84010D
84010-47030 Control & Panel Assy, IntegrationINTEGRATION [12.2009 - 11.2010] ZVW35..RHD |
84010-47030 |
US $163.07 |
||
| replacement | |||||
|
84010D
|
84010D
84010-47031-B0 Switch Assy, Center Cluster Integration[12.2009 - 11.2010] ZVW35..RHD |
84010-47031-B0 |
US $163.07 |
||
|
84012
|
84012
84012-47030 Control & Panel Sub-Assy, IntegrationINTEGRATION [12.2009 -] ZVW35..RHD |
84012-47030 |
US $80.08 |
||
| replacement | |||||
|
84012
|
84012
84012-47031 Control & Panel Sub-Assy, Integration[12.2009 -] ZVW35..RHD |
84012-47031 |
US $80.08 |
||
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[12.2009 -] ZVW35 |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[12.2009 -] ZVW35 |
84152-52071 |
US $43.24 |
||
|
84718
|
84718
84718-47010 Switch, Transmission Shift MainTRANSMISSION SHIFT MAIN [12.2009 -] ZVW35..RHD |
84718-47010 |
US $47.61 |
||
| replacement | |||||
|
84718
|
84718
84718-47011 Switch, Transmission Shift Main[12.2009 -] ZVW35..RHD |
84718-47011 |
US $64.60 |
||
|
84751
|
84751
84751-52030 Switch, Seat Heater[12.2009 -] ZVW35 |
84751-52030 |
US $47.61 |
||
| replacement | |||||
|
84751
|
84751
84751-52031 Switch, Seat Heater[12.2009 -] ZVW35 |
84751-52031 |
US $64.60 |
||
|
84870A
|
84870A
84870-34010 Switch Assy, Outer Mirror[12.2009 -] ZVW35 |
84870-34010 |
from US $57.15 |
||
|
84975
|
84975
84975-47020 Switch, TripTRIP [12.2009 -] ZVW35..RHD |
84975-47020 |
US $66.10 |
||
|
84975
|
84975
84975-47070
Switch, Trip
[12.2009 -] ZVW35..RHD ENGLAND SPEC |
84975-47070 |
— | ||
|
85530C
|
85530C
85530-42010 Socket Assy, Power Outlet, No.1[12.2009 - 10.2010] ZVW35 |
85530-42010 |
from US $26.60 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[12.2009 -] ZVW35 |
85530-42010 |
from US $26.60 |
||
|
85535D
|
85535D
85535-33060 Cover, Power Outlet Socket, CenterPOWER POINT SOCKET [12.2009 - 10.2010] ZVW35 |
85535-33060 |
US $6.88 |
||
|
85535E
|
85535E
85535-60100-C0 Cover, Power Outlet Socket, No.1 (Black)[12.2009 -] ZVW35 BLACK |
85535-60100-C0 |
US $8.32 |
||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[12.2009 -] ZVW35 |
85539-60020 |
US $1.41 |
||
|
85539B
|
85539B
85539-60020 Label, Power Outlet Notice[12.2009 -] ZVW35 |
85539-60020 |
US $1.41 |
||
|
89611
|
89611
89611-75040 Switch, Push StartPUSH START [12.2009 - 01.2010] ZVW35 |
89611-75040 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[12.2009 - 01.2010] ZVW35 |
89611-75044 |
US $210.24 |
||
|
89611
|
89611
89611-75041 Switch, Push StartPUSH START [02.2010 -] ZVW35 |
89611-75041 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-75044 Switch, Push Start[02.2010 -] ZVW35 |
89611-75044 |
US $210.24 |
||
