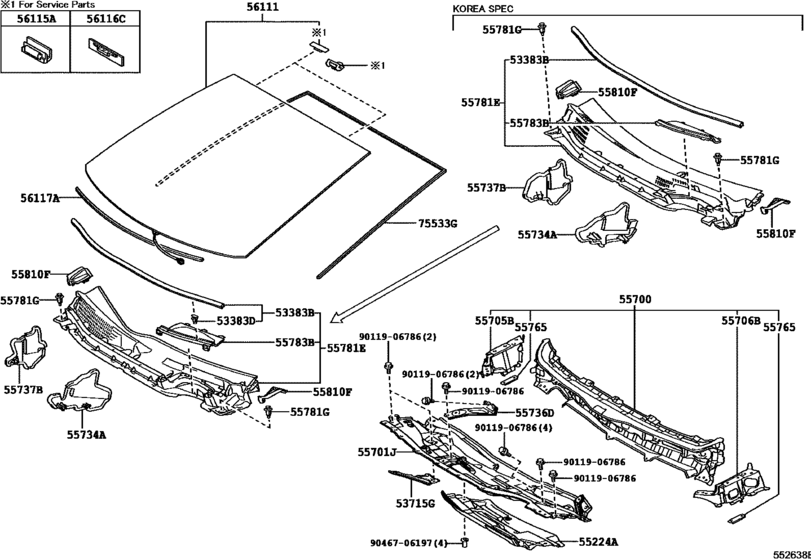

Cowl Panel & Windshield Glass ([09.2011 - ] W(STANDARD ROOF) (1109- )) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW41
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS V
- From
- 09.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-47130
Seal, Hood To Cowl Top
[09.2011 - 11.2014] ZVW41 |
53383-47130 |
— | ||
|
53383B
|
53383B
53383-47140
Seal, Hood To Cowl Top
[11.2014 -] ZVW41..USA KOREA SPEC |
53383-47140 |
— | ||
|
53383D
|
53383D
67867-12150 Clip(For Hood Air Intake Duct Seal)[09.2011 - 11.2014] ZVW41 |
67867-12150 |
from US $1.60 |
||
|
53715G
|
53715G
53715-47010 Extension, Front Fender Apron, Rear RhFRONT FENDER APRON, REAR RH [09.2011 - 11.2014] ZVW41 |
53715-47010 |
US $13.40 |
||
|
55224A
|
55224A
55224-47011
Insulator, Dash Panel, Outer No.2
[09.2011 - 11.2014] ZVW41 |
55224-47011 |
— | ||
|
55700
|
55700
55700-47190
Panel Assy, Front
[09.2011 - 11.2014] ZVW41 |
55700-47190 |
— | ||
|
55700
|
55700
55700-47200
Panel Assy, Front
[11.2014 -] ZVW41..USA KOREA SPEC |
55700-47200 |
— | ||
|
55701J
|
55701J
55701-47011
Panel Sub-Assy, Cowl Top, Outer
[11.2014 -] ZVW41..USA KOREA SPEC |
55701-47011 |
— | ||
|
55701J
|
55701J
55701-47031
Panel Sub-Assy, Cowl Top, Outer
[09.2011 - 11.2014] ZVW41 |
55701-47031 |
— | ||
|
55705B
|
55705B
55705-47030 Panel Sub-Assy, Cowl Top Side, Rh[09.2011 - 11.2014] ZVW41 |
55705-47030 |
US $33.20 |
||
|
55706B
|
55706B
55706-47030 Panel Sub-Assy, Cowl Top Side, Lh[09.2011 - 11.2014] ZVW41 |
55706-47030 |
US $33.20 |
||
|
55734A
|
55734A
55734-47050
Plate, Water Guard, Rh
[09.2011 - 11.2014] ZVW41 |
55734-47050 |
— | ||
|
55734A
|
55734A
55734-47070
Plate, Water Guard, Rh
[11.2014 -] ZVW41..USA KOREA SPEC |
55734-47070 |
— | ||
|
55736D
|
55736D
55736-47020
Reinforcement, Cowl Body Mounting, Lh
[11.2014 -] ZVW41..USA KOREA SPEC |
55736-47020 |
— | ||
|
55736D
|
55736D
55736-47030 Reinforcement, Cowl Body Mounting, LhCOWL BODY MOUNTING, LH [09.2011 - 11.2014] ZVW41 |
55736-47030 |
US $19.51 |
||
|
55737B
|
55737B
55737-47060
Seal, Heater Air Duct Splash Shield, No.1
[09.2011 - 11.2014] ZVW41 |
55737-47060 |
— | ||
|
55737B
|
55737B
55737-47070
Seal, Heater Air Duct Splash Shield, No.1
[11.2014 -] ZVW41..USA KOREA SPEC |
55737-47070 |
— | ||
|
55765
|
55765
55765-44010 Bracket, Hood Damper Mounting[09.2011 - 11.2014] ZVW41 |
55765-44010 |
US $4.96 |
||
|
55781E
|
55781E
55708-47180
Louver Sub-Assy, Cowl Top Ventilator
[09.2011 - 11.2014] ZVW41 |
55708-47180 |
— | ||
|
55781E
|
55781E
55708-47190
Louver Sub-Assy, Cowl Top Ventilator
[11.2014 -] ZVW41..USA KOREA SPEC |
55708-47190 |
— | ||
|
55781G
|
55781G
90467-07076-C0 Clip, Radiator Grille[09.2011 - 11.2014] ZVW41 BLACK |
90467-07076-C0 |
from US $0.99 |
||
|
55781G
|
55781G
90467-07076-C7 Clip, Hood Moulding[03.2017 -] ZVW41 BLACK |
90467-07076-C7 |
from US $0.84 |
||
|
55783B
|
55783B
55783-47100
Louver, Cowl Top Ventilator, Center No.1
[09.2011 - 11.2014] ZVW41 |
55783-47100 |
— | ||
|
55783B
|
55783B
55783-47110
Louver, Cowl Top Ventilator, Center No.1
[11.2014 -] ZVW41..USA KOREA SPEC |
55783-47110 |
— | ||
|
55810F
|
55810F
55810-47010 Ventilator Assy, Front[09.2011 - 11.2014] ZVW41 RH |
55810-47010 |
US $19.46 |
||
|
55810F
|
55810F
55820-47010 Ventilator Assy, Front[09.2011 - 11.2014] ZVW41 LH |
55820-47010 |
US $19.46 |
||
|
56111
|
56111
56101-47952
Glass, Windshield
[09.2011 - 06.2012] ZVW41 LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W (SDARS); ZVW41 LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-AVN & JBL & 8SPEAKER & BLUETOO TH; ZVW41 LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIX |
56101-47952 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-4E918
Glass, Windshield
[09.2011 - 06.2012] ZVW41 LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W (SDARS); ZVW41 LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-AVN & JBL & 8SPEAKER & BLUETOO TH; ZVW41 LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIX |
56101-4E918 |
— | ||
|
56111
|
56111
56101-47954
Glass, Windshield
[09.2011 - 06.2012] ZVW41 |
56101-47954 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-4E919
Glass, Windshield
[09.2011 - 06.2012] ZVW41 |
56101-4E919 |
— | ||
|
56111
|
56111
56101-4E918
Glass, Windshield
[06.2012 - 11.2014] ZVW41 LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W (SDARS); ZVW41 LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-AVN & JBL & 8SPEAKER & BLUETOO TH; ZVW41 LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIX |
56101-4E918 |
— | ||
|
56111
|
56111
56101-4E919
Glass, Windshield
[06.2012 - 11.2014] ZVW41 |
56101-4E919 |
— | ||
|
56111
|
56111
56101-4E937
Glass, Windshield
[11.2014 - 12.2017] ZVW41..CND US GRADE5&PANORAMIC ROOF-WITH(FIXED)&HEADLAMP-LED & *AHB; ZVW41..USA US GRADE5&PANORAMIC ROOF-WITH(FIXED)&HEADLAMP-LED & *AHB&LANE KEEPING SYSTEM-WITH; ZVW41..CND US GRADE5&HEADLAMP-LED & *AHB; ZVW41..USA US GRADE5&HEADLAMP- |
56101-4E937 |
— | ||
|
56111
|
56111
56101-4E939
Glass, Windshield
[11.2014 - 12.2017] ZVW41..USA KOREA SPEC&PANORAMIC ROOF-WITH(FIXED)&HEADLAMP-LED; ZVW41..USA KOREA SPEC&HEADLAMP-LED |
56101-4E939 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[09.2011 - 11.2014] ZVW41 |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[09.2011 - 11.2014] ZVW41 |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-50140 Dam Kit, Back Window Glass[09.2011 - 11.2014] ZVW41 *D,L=1137.5; ZVW41 *D,L=1137.5,LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-*DA & 6SPEAKER & B LUETOOTH & W(SDARS); ZVW41 *D,L=1137.5,LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-AVN & JBL & 8SPEAK ER & BLUETOOTH; Z |
56117-50140 |
from US $13.26 |
||
|
75533G
|
75533G
75533-47060 Moulding, Windshield, Outside[09.2011 - 11.2014] ZVW41 |
75533-47060 |
US $36.94 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.44 |
||
|
9046706197
|
9046706197
90467-06197 Clip |
90467-06197 |
US $1.92 |
||
