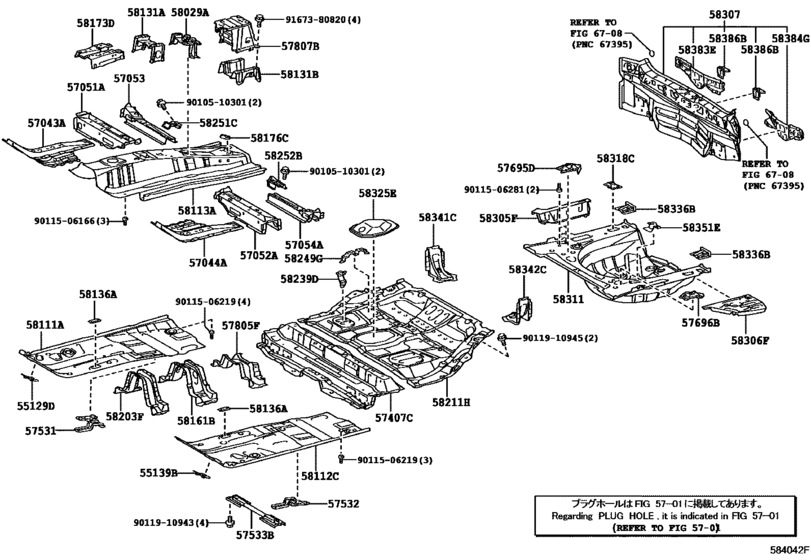

Floor Pan & Lower Back Panel ([09.2011 - ] (1109- )) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW41
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS V
- From
- 09.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129D
|
55129D
55129-12040 Cover, Dash Panel Hole[09.2011 - 11.2014] ZVW41 |
55129-12040 |
US $4.80 |
||
|
55139B
|
55139B
55139-12050 Cover, Dash Panel Hole[09.2011 - 11.2014] ZVW41 |
55139-12050 |
US $4.80 |
||
|
57043A
|
57043A
57043-12020 Reinforcement Sub-Assy, Front Side Member, Rear Rh[09.2011 - 11.2014] ZVW41 |
57043-12020 |
US $110.66 |
||
|
57044A
|
57044A
57044-12020 Reinforcement Sub-Assy, Front Side Member, Rear Lh[09.2011 - 11.2014] ZVW41 |
57044-12020 |
US $110.66 |
||
|
57051A
|
57051A
57051-12060 Member Sub-Assy, Front Floor Cross, Rh[09.2011 - 11.2014] ZVW41 |
57051-12060 |
US $62.61 |
||
|
57052A
|
57052A
57052-12010 Member Sub-Assy, Front Floor Cross, Lh[09.2011 - 11.2014] ZVW41 |
57052-12010 |
US $62.61 |
||
|
57053
|
57053
57053-12010 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[09.2011 - 11.2014] ZVW41 |
57053-12010 |
US $64.36 |
||
|
57054A
|
57054A
57054-12010 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[09.2011 - 11.2014] ZVW41 |
57054-12010 |
US $64.36 |
||
|
57407C
|
57407C
57407-47010 Member Sub-Assy, Center Floor Cross, No.1[09.2011 - 10.2011] ZVW41 |
57407-47010 |
US $416.42 |
||
| replacement | |||||
|
57407C
|
57407C
57407-47011 Member Sub-Assy, Center Floor Cross, No.1[09.2011 - 10.2011] ZVW41 |
57407-47011 |
US $314.50 |
||
|
57407C
|
57407C
57407-47011 Member Sub-Assy, Center Floor Cross, No.1[11.2011 - 11.2014] ZVW41 |
57407-47011 |
US $314.50 |
||
|
57531
|
57531
57531-12010 Bracket, Front Floor Center Brace, Rh[09.2011 - 11.2014] ZVW41 |
57531-12010 |
US $17.76 |
||
|
57532
|
57532
57532-12010 Bracket, Front Floor Center Brace, Lh[09.2011 - 11.2014] ZVW41 |
57532-12010 |
US $17.76 |
||
|
57533B
|
57533B
57501-12020 Bracket Sub-Assy, Front Seat, Center[09.2011 - 11.2014] ZVW41 |
57501-12020 |
US $69.01 |
||
|
57695D
|
57695D
57695-47030 Bracket, Rear Floor Mounting, No.2 RhREAR FLOOR MOUNTING, NO.2 RH [09.2011 - 11.2014] ZVW41 |
57695-47030 |
US $26.14 |
||
|
57696B
|
57696B
57696-47030 Bracket, Rear Floor Mounting, No.2 LhREAR FLOOR MOUNTING, NO.2 LH [09.2011 - 11.2014] ZVW41 |
57696-47030 |
US $26.14 |
||
|
57805F
|
57805F
57805-47030 Reinforcement Sub-Assy, Belt Anchor, No.1[09.2011 - 07.2012] ZVW41 |
57805-47030 |
US $64.50 |
||
| replacement | |||||
|
57805F
|
57805F
57805-47031 Reinforcement Sub-Assy, Belt Anchor, No.1[09.2011 - 07.2012] ZVW41 |
57805-47031 |
US $48.78 |
||
|
57805F
|
57805F
57805-47031 Reinforcement Sub-Assy, Belt Anchor, No.1[08.2012 - 11.2014] ZVW41 |
57805-47031 |
US $48.78 |
||
|
57807B
|
57807B
57807-47020 Reinforcement Sub-Assy, Belt Anchor, No.2[09.2011 - 11.2014] ZVW41 |
57807-47020 |
US $68.29 |
||
|
58029A
|
58029A
58029-47010 Bracket Sub-Assy, Parking Brake Wire Clamp[09.2011 - 11.2014] ZVW41 |
58029-47010 |
US $27.23 |
||
|
58111A
|
58111A
58111-47906 Pan, Front Floor, Rh[09.2011 - 11.2014] ZVW41 |
58111-47906 |
US $216.94 |
||
| replacement | |||||
|
58111A
|
58111A
58111-72901 Pan, Front Floor, Rh[09.2011 - 11.2014] ZVW41 |
58111-72901 |
US $198.02 |
||
|
58111A
|
58111A
58111-72901 Pan, Front Floor, Rh[11.2015 -] ZVW41 |
58111-72901 |
US $198.02 |
||
|
58112C
|
58112C
58112-72901 Pan, Front Floor, Lh[09.2011 - 11.2014] ZVW41 |
58112-72901 |
US $198.02 |
||
|
58113A
|
58113A
58113-47902 Panel, Front Floor, Center[09.2011 - 11.2014] ZVW41 |
58113-47902 |
US $382.93 |
||
|
58131A
|
58131A
58137-47010 Bracket, Front Floor Heat Insulator, No.1[09.2011 - 11.2014] ZVW41 |
58137-47010 |
US $29.56 |
||
|
58131B
|
58131B
58157-47010 Bracket, Front Floor Heat Insulator, No.2[09.2011 - 11.2014] ZVW41 |
58157-47010 |
US $42.37 |
||
|
58136A
|
58136A
58136-12040 Cover, Front Floor Service Hole[09.2011 - 11.2014] ZVW41 |
58136-12040 |
US $2.91 |
||
|
58161B
|
58161B
58161-47030 Reinforcement, Belt Anchor To Floor Pan[09.2011 - 11.2014] ZVW41 |
58161-47030 |
US $47.03 |
||
|
58173D
|
58173D
58173-47010 Bracket, Computer Mounting, No.4[09.2011 - 11.2014] ZVW41 |
58173-47010 |
US $42.22 |
||
|
58176C
|
58176C
58176-12020 Reinforcement, Parking Brake Base, No.1[09.2011 - 11.2014] ZVW41 |
58176-12020 |
US $3.64 |
||
|
58203F
|
58203F
58203-12070 Bracket Sub-Assy, Exhaust Pipe Mounting[09.2011 - 11.2014] ZVW41 |
58203-12070 |
US $44.84 |
||
|
58211H
|
58211H
58211-47090 Pan, Center Floor[09.2011 - 11.2014] ZVW41 |
58211-47090 |
US $237.33 |
||
|
58239D
|
58239D
58239-47010 Bracket, Cable Clamp[09.2011 - 11.2014] ZVW41 |
58239-47010 |
US $5.82 |
||
|
58249G
|
58249G
58249-47010 Bracket, Cable Clamp, No.2[09.2011 - 11.2014] ZVW41 |
58249-47010 |
US $4.80 |
||
|
58251C
|
58251C
58251-12040 Brace, Floor Panel, Front Rh[09.2011 - 11.2014] ZVW41 |
58251-12040 |
US $17.62 |
||
|
58252B
|
58252B
58252-12040 Brace, Floor Panel, Front Lh[09.2011 - 11.2014] ZVW41 |
58252-12040 |
US $17.47 |
||
|
58305F
|
58305F
58302-47030 Panel Sub-Assy, Rear Floor, FrontREAR FLOOR, FRONT [09.2011 - 11.2014] ZVW41 |
58302-47030 |
US $111 |
||
|
58306F
|
58306F
58303-47031 Panel Sub-Assy, Rear Floor Partition[09.2011 - 07.2013] ZVW41 |
58303-47031 |
from US $48.69 |
||
|
58306F
|
58306F
58314-47030 Panel Sub-Assy, Rear Floor Side, Lh[07.2013 - 11.2014] ZVW41 |
58314-47030 |
US $24.88 |
||
|
58307
|
58307
58307-47080 Panel Sub-Assy, Body Lower Back[09.2011 - 11.2014] ZVW41 |
58307-47080 |
from US $263.52 |
||
|
58311
|
58311
58311-47070 Pan, Rear FloorREAR FLOOR [09.2011 - 04.2012] ZVW41 |
58311-47070 |
US $314.50 |
||
| replacement | |||||
|
58311
|
58311
58311-47071 Pan, Rear Floor[09.2011 - 04.2012] ZVW41 |
58311-47071 |
from US $322 |
||
|
58311
|
58311
58311-47071 Pan, Rear Floor[05.2012 - 11.2014] ZVW41 |
58311-47071 |
from US $322 |
||
|
58318C
|
58318C
58318-47030 Bracket, Rear Floor CrossmemberREAR FLOOR CROSSMEMBER [09.2011 - 11.2014] ZVW41 |
58318-47030 |
US $13.44 |
||
|
58325E
|
58325E
58325-47040 Cover, Rear Floor Service Hole[01.2012 - 11.2014] ZVW41 |
58325-47040 |
US $19.66 |
||
|
58325E
|
58325E
58325-72010 Cover, Rear Floor Service Hole[09.2011 - 01.2012] ZVW41 |
58325-72010 |
US $21.69 |
||
|
58336B
|
58336B
58336-12090 Reinforcement, Rear Floor Pan[09.2011 - 11.2014] ZVW41 |
58336-12090 |
from US $14.56 |
||
|
58341C
|
58341C
58341-47070 Bracket, Rear Absorber Mounting, No.1 Rh[09.2011 - 11.2014] ZVW41 |
58341-47070 |
US $26.83 |
||
|
58342C
|
58342C
58342-47070 Bracket, Rear Absorber Mounting, No.1 Lh[09.2011 - 11.2014] ZVW41 |
58342-47070 |
US $26.83 |
||
|
58351E
|
58351E
58351-12060 Bracket, Spare Wheel Carrier[09.2011 - 11.2014] ZVW41 |
58351-12060 |
US $8 |
||
|
58383E
|
58383E
58383-47020 Reinforcement, Body Lower Back, No.2 Rh[09.2011 - 11.2014] ZVW41 |
58383-47020 |
US $33.20 |
||
|
58384G
|
58384G
58384-47030 Gusset, Lower Back, Upper Rh[09.2011 - 11.2014] ZVW41 |
58384-47030 |
US $33.20 |
||
|
58386B
|
58386B
58386-74010 Bracket, Rear Bumper Cover, No.2REAR BUMPER COVER, NO.2 [09.2011 - 11.2014] ZVW41 |
58386-74010 |
US $8.32 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506281
|
9011506281
90115-06281 New Genuine Part |
90115-06281 |
US $1.12 |
||
|
9011910943
|
9011910943
90119-10943 New Genuine Part |
90119-10943 |
US $3.04 |
||
|
9011910945
|
9011910945
90119-10945 New Genuine Part |
90119-10945 |
US $1.02 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
