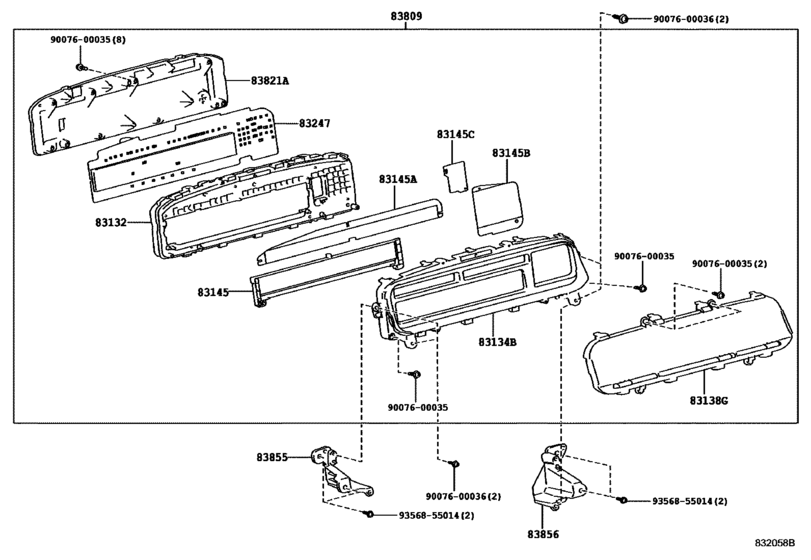

Meter ([09.2011 - 11.2014] (1109-1411)) Diagram Toyota PRIUS
- Year
- 2011 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW41
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS V
- From
- 09.2011
- Seating Capacity
- 05S
- Vehicle Model
- PRIUS V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83132
|
83132
83841-47590
Case, Combination Meter
[09.2011 - 11.2014] ZVW41 |
83841-47590 |
— | ||
|
83134B
|
83134B
83822-47590
Cover, Combination Meter, No.2
[09.2011 - 11.2014] ZVW41 |
83822-47590 |
— | ||
|
83134B
|
83134B
83822-47F30
Cover, Combination Meter, No.2
[11.2014 - 12.2017] ZVW41 |
83822-47F30 |
— | ||
|
83138G
|
83138G
83852-47580 Glass, Combination Meter[09.2011 - 11.2014] ZVW41 |
83852-47580 |
US $23.59 |
||
|
83138G
|
83138G
83852-47M50 Glass, Combination Meter[11.2014 - 12.2017] ZVW41 |
83852-47M50 |
US $57.13 |
||
|
83145
|
83145
83831-47590
Lens, Meter, No.1
[09.2011 - 11.2014] ZVW41 |
83831-47590 |
— | ||
|
83145
|
83145
83831-47M50 Lens, Meter, No.1[11.2014 - 12.2017] ZVW41 |
83831-47M50 |
US $12.38 |
||
|
83145A
|
83145A
83832-47590
Lens, Meter, No.2
[09.2011 - 11.2014] ZVW41..USA |
83832-47590 |
— | ||
|
83145A
|
83145A
83832-47591
Lens, Meter, No.2
[05.2016 - 12.2017] ZVW41..USA US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH) |
83832-47591 |
— | ||
|
83145B
|
83145B
83833-47590 Lens, Meter, No.3[09.2011 - 11.2014] ZVW41..USA |
83833-47590 |
US $3.49 |
||
|
83145B
|
83145B
83833-47M60
Lens, Meter, No.3
[11.2014 - 05.2016] ZVW41..USA US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH) |
83833-47M60 |
— | ||
|
83145B
|
83145B
83833-47M61
Lens, Meter, No.3
[05.2016 - 12.2017] ZVW41..USA US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH) |
83833-47M61 |
— | ||
|
83145C
|
83145C
83834-47580 Lens, Meter, No.4[09.2011 - 11.2014] ZVW41 |
83834-47580 |
US $1.02 |
||
|
83247
|
83247
83861-47590
Plate, Meter Circuit
[09.2011 - 08.2013] ZVW41..USA |
83861-47590 |
— | ||
|
83247
|
83247
83861-47591
Plate, Meter Circuit
[08.2013 - 11.2014] ZVW41..USA |
83861-47591 |
— | ||
|
83247
|
83247
83861-47M60
Plate, Meter Circuit
[11.2014 - 05.2016] ZVW41..USA US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH) |
83861-47M60 |
— | ||
|
83247
|
83247
83861-47M61
Plate, Meter Circuit
[05.2016 - 12.2017] ZVW41..USA US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH) |
83861-47M61 |
— | ||
|
83809
|
83809
83809-47020
Meter Sub-Assy, Combination
[09.2011 - 07.2013] ZVW41..USA |
83809-47020 |
— | ||
| replacement | |||||
|
83809
|
83809
83809-47021
Meter Sub-Assy, Combination
[09.2011 - 07.2013] ZVW41..USA |
83809-47021 |
— | ||
|
83809
|
83809
83809-47021
Meter Sub-Assy, Combination
[08.2013 - 11.2014] ZVW41..USA |
83809-47021 |
— | ||
|
83809
|
83809
83809-47120
Meter Sub-Assy, Combination
[11.2014 - 05.2016] ZVW41..USA |
83809-47120 |
— | ||
|
83809
|
83809
83809-47121
Meter Sub-Assy, Combination
[05.2016 - 12.2017] ZVW41..USA |
83809-47121 |
— | ||
|
83809
|
83809
83809-47230
Meter Sub-Assy, Combination
[11.2014 - 05.2016] ZVW41..USA US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH) |
83809-47230 |
— | ||
|
83809
|
83809
83809-47231
Meter Sub-Assy, Combination
[05.2016 - 12.2017] ZVW41..USA US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH) |
83809-47231 |
— | ||
|
83809
|
83809
83809-47290
Meter Sub-Assy, Combination
[11.2014 - 05.2016] ZVW41..USA KOREA SPEC&HEADLAMP-LED |
83809-47290 |
— | ||
|
83809
|
83809
83809-47291
Meter Sub-Assy, Combination
[05.2016 - 12.2017] ZVW41..USA KOREA SPEC&HEADLAMP-LED |
83809-47291 |
— | ||
|
83821A
|
83821A
83821-47590
Cover, Combination Meter, No.1
[09.2011 - 11.2014] ZVW41 |
83821-47590 |
— | ||
|
83821A
|
83821A
83821-47F30
Cover, Combination Meter, No.1
[11.2014 - 12.2017] ZVW41 |
83821-47F30 |
— | ||
|
83855
|
83855
83855-47590
Bracket, Combination Meter, No.1
[09.2011 - 11.2014] ZVW41 |
83855-47590 |
— | ||
|
83856
|
83856
83856-47590
Bracket, Combination Meter, No.2
[09.2011 - 11.2014] ZVW41 |
83856-47590 |
— | ||
|
9007600035
|
9007600035
90076-00035 New Genuine Part |
90076-00035 |
US $2.18 |
||
|
9007600036
|
9007600036
90076-00036 New Genuine Part |
90076-00036 |
US $2.18 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
